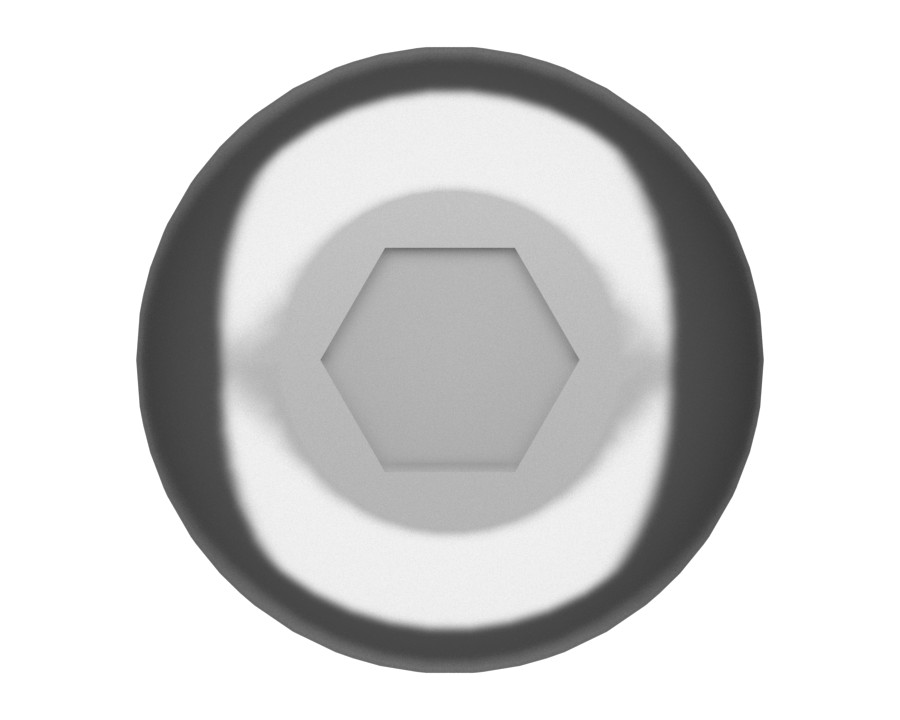

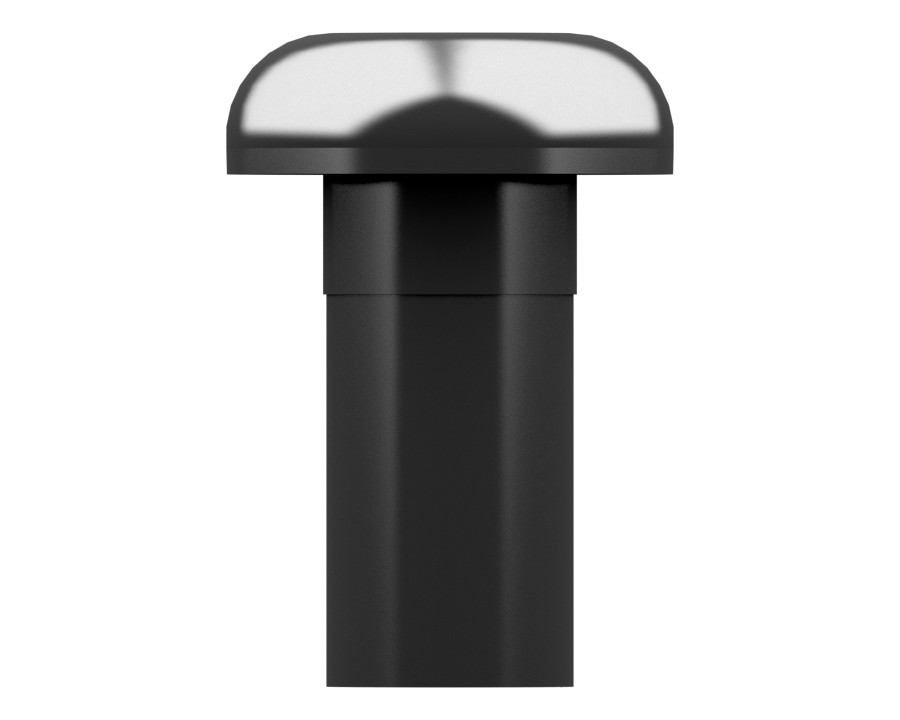

9X-2616 16 mm Long Button Head Screw
Machine Screw
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
These are small internal thread-forming screws.
Features
* Cat fasteners are manufactured to precise specifications for durability, reliability and efficiency
* Strength and quality – fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
* Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
* Coatings meet the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Locking Feature | None |
|---|---|
| Thread Size | M8 mm (0 in) |
| Class or Grade | ISO 898-1 Class 12.9 |
| Thread Size (Diameter × Pitch) | M8x1.25 mm |
| Bolt Length | 16 mm (0.63 in) |
| Thread Direction | RH |
| Material | Alloy Zinc |
| Bolt Type | Rounded Head (Pan) |
| Handle Length | 3.75 mm (0.148 in) |
| Coating | Zinc Flake (720 Hour Salt Spray Test) |
Compatible Equipment
- Generator Sets: C7.1, 3512B
- Track Loaders: 824G, 826H, 826G, 834H, 992, 995
- Cold Planers: TH360B, SE50 VT, SE60 VT XW
- Compactors: CP56B, CB-334D, CS78B, CW-34, CS74B, CB-335D, CB-14B, CS-563E, CS11, CS12, CS68B, CS56B, CB10, CS-533E, CS-54B
- Engines: C13
- Excavators: 336D2, 320D, 320D2, 326D2, 303, 326D2 L, 336D, 308D, 305, 329D2 L, 329D, 329D2, 390F L, 349D2 L, 390D L, 374D L, 349D2, 349D, 374F, 313, 330D L, 349F L, 325, 315 GC, 336F L, 336D L, 320D2 L, 301.6, 318D2 L, 312D L, 301.8, 328D LCR, 312D2, 323D L, 320D RR, 323D2 L, 336D2 L, 312D2 L, 311D LRR, 320D L, 329D L, 312D, 312E L, 336F, 312F, 336F LN, 330D2, 320B, 330D, 314D CR, 336E LH, 336E, 336E L, 324D, 315F LCR, 312E, 313D2, 320D FM, 313D, 324D L, 336F L XE, 320E, 315D L, 325D L, 330D2 L, 325B L, 314D LCR, 312D2 GC, 329E L, 350 L, 365C L, 349E, 349D L, 374F L, 416F2, 365B, 349E L, 345D L, 385C L, 6015B, 352F, 302.7CR, 303.5CR, 303CR, 6015, 432, 325D, 320D2 GC, 329E, 311B, 345C, 345C L, 385C, 349E L VG, 340D2 L, 390F, 385B, 365C, 345D, 390D, 365B L, 336E H, 340D L, 428F, 345B, 385C FS, SE60 V XW, 315, 313F L, 323D2, 336E LN, 323D, 318D2, 336D2 XE, 335F LCR, 434F2, 335
- Asphalt Pavers: AD63, AP300F, AP655F L, AP-600D, AP355F, AP655F
- Skid Steer Loaders: 313D2 LGP
- Motor Graders: 14
- Wheel Excavators: M313D, M315D, M315, M320
- Dozers: D10T2, D11T, D7R, D6R, D7E, D8T, D9T, D8
- Mini Excavators: 302CR, 301.5, 303.5, 305.5E2, 307, 303.5D, 307D, 305.5 GC
- Wheel Loaders: 966L, 950G, 950H, 950L, RM400, 966H, 980G, 962G, 972G, 980H, 990H, 950 GC, 972L, 972H, 988G, 988H, R1700K, M314, 962L, R1700 XE, 986H, 980L
- Off-Highway Trucks: 785, 789, 798 AC, 789D, 793D, 785D, 797F, 793
