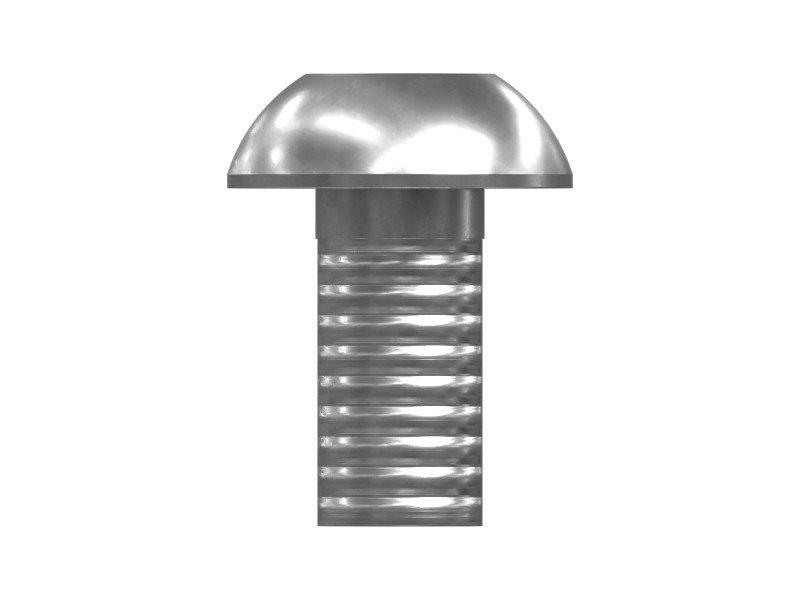

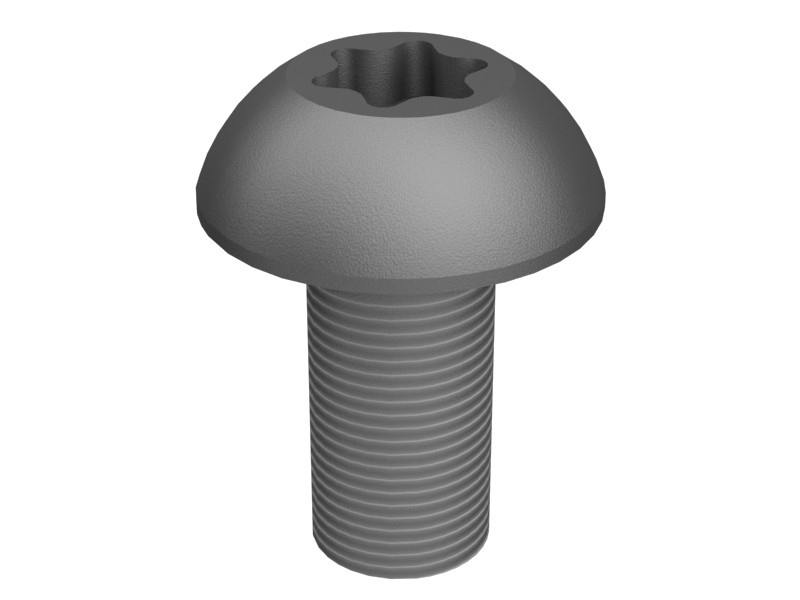

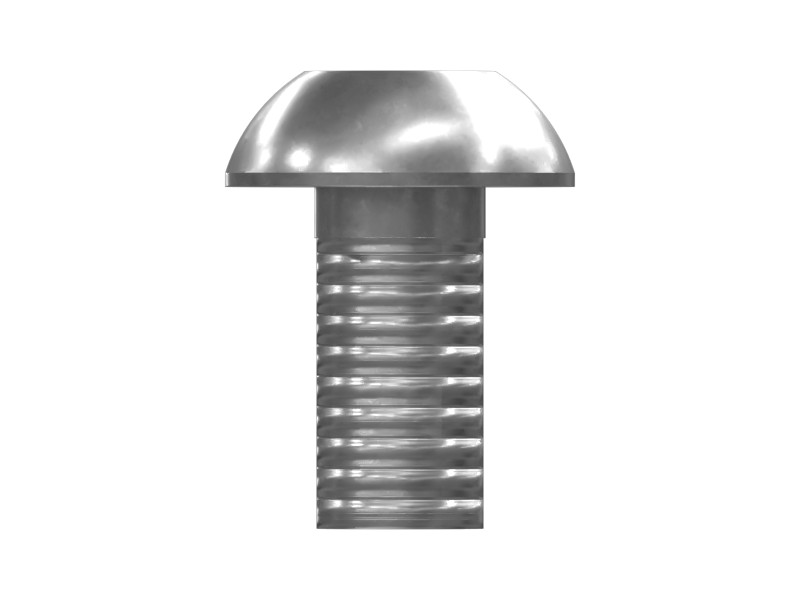

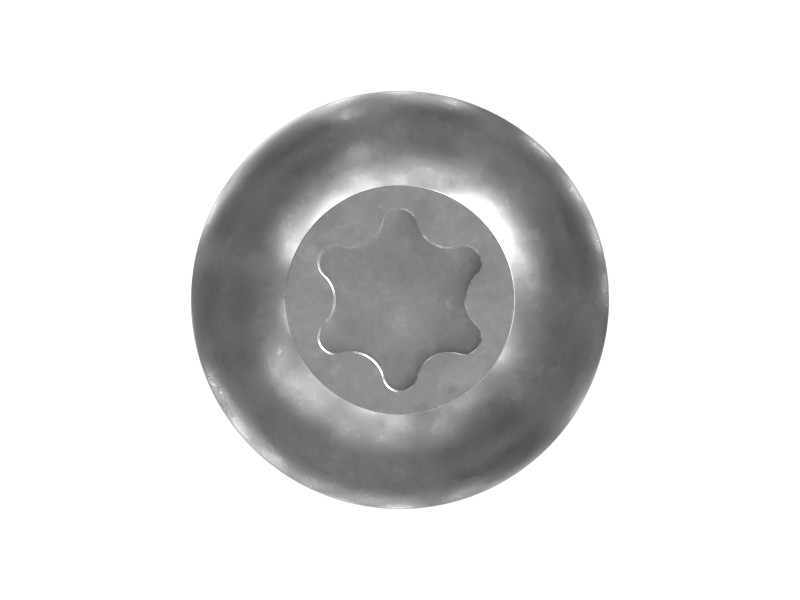

9X-2041 M10X1.5 Threaded Large Round Head Screw
Cat® Hex Socket Black Steel Large Round Head Screw
Description
Metric
Cat machine screws form a matched system with mating hardened washers and nuts to produce consistent, high clamping force.
Features
- Material: Steel
- Thread Size: M10
- Galvanized
- Color: Black
- Torx slot type
- ROHS compliant
Specifications
| Thread Direction | RH |
|---|---|
| Bolt Type | Rounded Head (Pan) |
| Thread Size | M10 mm (0 in) |
| Locking Feature | None |
| Material | Alloy Zinc |
| Coating | Zinc Flake-Black |
| Bolt Length | 20 mm (0.787 in) |
| Class or Grade | ISO 898-1 Class 10.9 |
| Handle Length | 4.5 mm (0.177 in) |
| Thread Size (Diameter × Pitch) | M10x1.5 mm |
Compatible Equipment
- Generator Sets: C7.1, C4.4, 3512B
- Track Loaders: 963D, 953D, 826K, 816F, 953K, 990K, 834H, 994K, 963K, 826H, 982, 972, 973K, 963, 953, 992, 993, 995
- Cold Planers: TH360B, PL61, SE50 VT, PM622, PM620, PL87, PL83
- Compactors: 834K, 825K, 824K, CB-534D, CS-56, CB-434D, CS54B, CS-563E, CB-36B, CP54B, CB-564D, CB-34B, CS-583D, CB-24B, CC-34B, CB2.5, CB2.7, CB2.9, CB16, CS-54, 816, 815, 814, CB2.5 GC, CC2.7 GC, CB2.7 GC, CS11, CB15, CB10, CB13, CS-533E, CS64B
- Engines: C175-16
- Excavators: 307E, 308D, 320D, 336D2, 329D2 L, 336D, 330, 320D2, 306E, 326D2, 307.5, 308E, 374F, 349D2, 326D2 L, 329D2, 390F L, 349D, 306E2, 390D L, 374D L, 349D2 L, 303.5E2 CR, 329D, 305, 330D L, 305E2 CR, 374, 313 GC, 316 GC, 349F L, 313, 336F LN, 312C, 320C, 329E, 312E, 336E L, 336D2 XE, 330C L, 318D2 L, 313D2, 320D GC, 329E L, 325D, 314C, 320 GC, 320D L, 315D L, 325C, 336 GC, 336F L, 312E L, 320D FM, 335F LCR, 328D LCR, 336D L, 329D L, 320B, 320E, 323D2 L, 311B, 336, 330C, 323, 336F, 320D2 L, 312D L, 312C L, 333, 350, 326, 330 GC, 340, 320 GX, 352, 395, 312 GX, 313 GX, 312 GC, 316 GX, 325, 315 GC, 325B, 330 L, 325D L, 336E, 315C, 324D, 311D LRR, 323D L, 324D L, 336D2 L, 312D, 320D2 GC, 312D2, 336E H, 320, 320C L, 336F L XE, 313D2 GC, 330D2 L, 312D2 L, 312F, 330D2, 312D2 GC, 336E LN, 301.8, 325B L, 336D2 GC, 320D RR, 313F L, 336E LH, 318D L, 314D LCR, 637K, 345C, 349D L, 345D L, 6015B, 385B, 385C L, 345C L, 349E, 349E L VG, 365C, 385C, 350 L, 340D L, 352F, 365C L, 345D, 385C FS, 349E L, 390F, 330D, 621H, 390D, 345B, 340D2 L, 374F L, 301.6, 311C, 349, 621K, 365B L, 330GC, 6020B, 365B, M325D L MH, 345 GC, 621G, 326GC, 326D L, 330B, 315F LCR, 313F LGC, 313D2-GC, 320D3 GC, 335, 302.7CR, 303.5CR, 303CR, 323 GX, 320D3, 6015, 6030, 350MHPU, 6040, 355, 315, 325C L, 323GC, 314D CR, 305 CR, 120 GC, 333 GC, 326 GC, 323 GC, 323D, 313D, 323D2, 318D2, 3101, 3508B
- Asphalt Pavers: AP655F, AP655F L, AP-600D, AD63
- Skid Steer Loaders: 216B3, 313D2 LGP, 24, 226B, 226B3, 236, 236B3
- Motor Graders: 12K, 160K, 16H, 18, 120, 16, 120H, 349 GC, 12H, 140 GC, 140H, 140K, 16M3, 316F, 14
- Wheel Excavators: MD6310, M315D, M320D2, IT14G, M322D, MD6200, M313D, MD6250, M317D2, M315D2, M315, M320, M315GC
- Dozers: D11T, D10T2, D6M, D7E, D6T, D6N, D8T, D5M, D5K XL, D11, D6T LGP, D9T, D8R, D6R III, D5K LGP, D6R XL, D10T, D5N, D7R, D6R LGP, D6R, D7, D9, D8, D10, D6R II
- Mini Excavators: 305E2, 308, 301.7CR, 307C, 305.5E2, 307B, 308.5, 302CR, 305.5, 310, 307E2, 307D, 306, 307, 306.5, 301.5, 308E2, 305.5E
- Wheel Loaders: 966, 972G, 972L, 928HZ, 924HZ, 962G, 938M, 988K, 950 GC, 972H, 950G, 950L, 966K, 980H, 966F, 966H, 966L, 950H, 924GZ, 928G, 962L, 924K, 986H, 926M, 938K, 992C, 988H, 980G, 990H, 988F, R1700K, M314, 980L, 992D, 980, 910, R1700 XE, 950, R2900 XE, 834, 836
- Off-Highway Trucks: 745C, 777, 796 AC, 745, 740 GC, 740, 793F, 797F, 794 AC, 793D, 789D, 785D, 775G, 798 AC, 785, 793, 789, 725C2, 730, 735, 725, 773
