Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications
| Inside Diameter | 6.6 mm (0.26 in) |
|---|---|
| Outside Diameter | 19 mm (0.748 in) |
| Material | Corrosion Preventative Fluid |

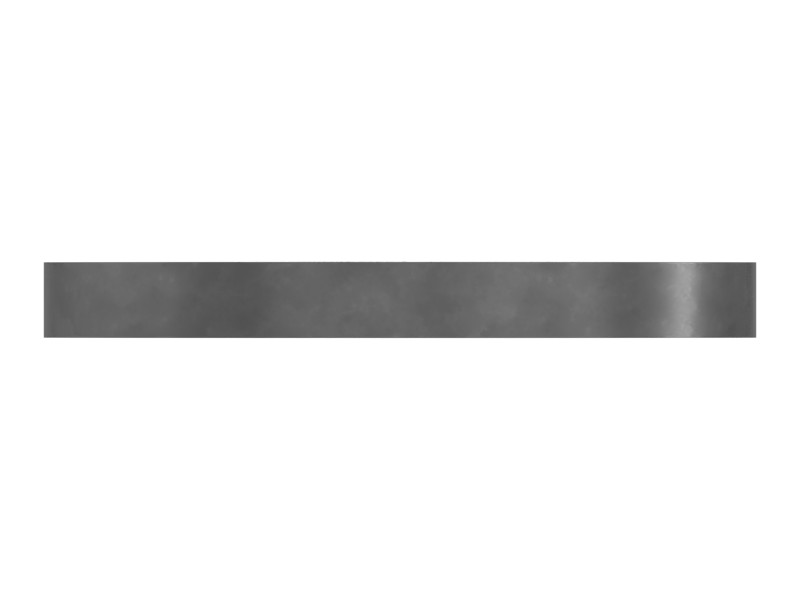

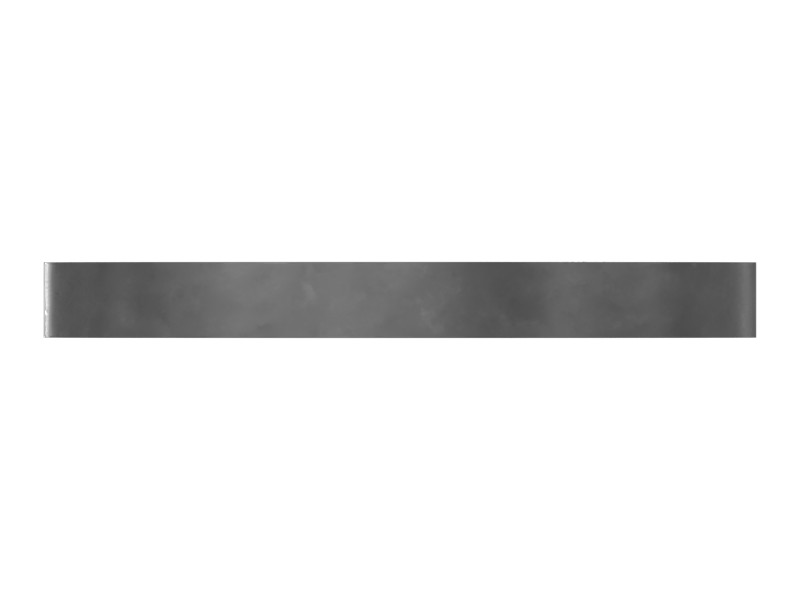

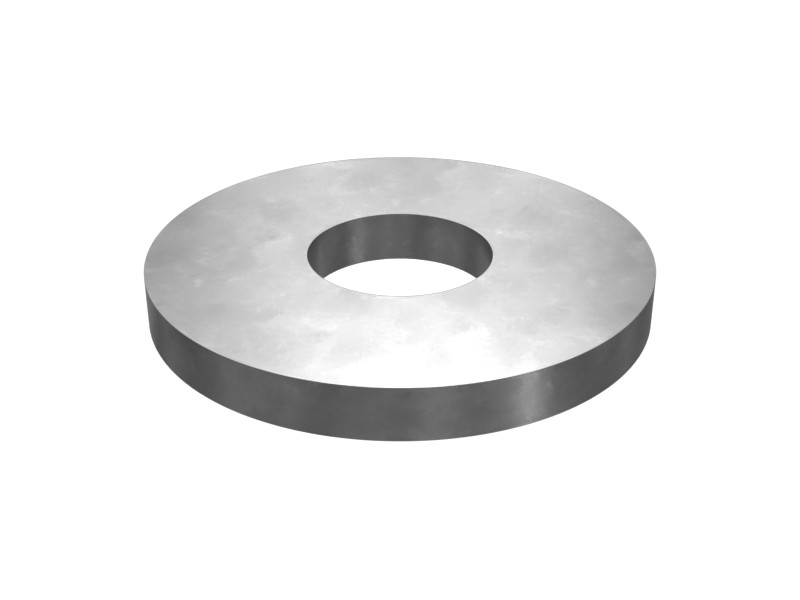

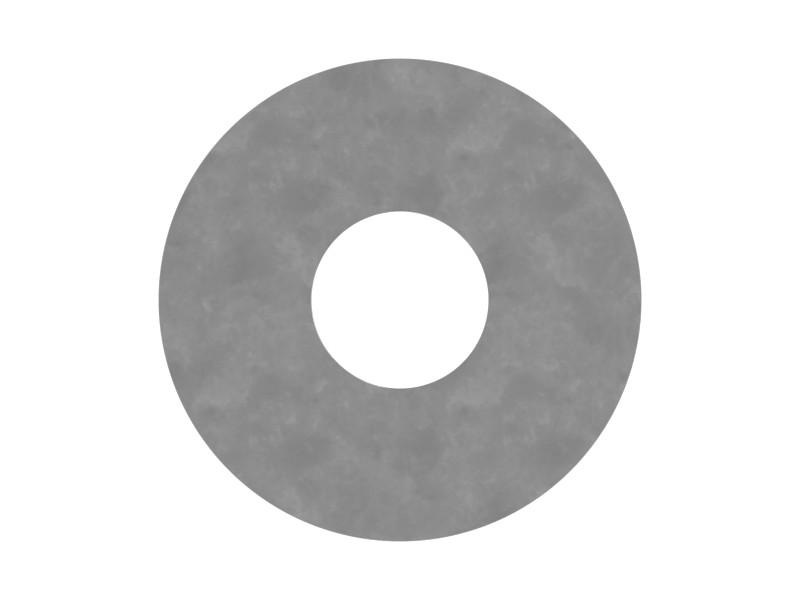

| Gasket Type | Flat Washer |
| Fits Bolt Size | M6 mm |
| Coating | Zinc flake provides moderate to high corrosion protection and repeatable assembly performance through built-in lubrication. Salt spray resistance: 720 hours with no red rust. Coating color – black (M12 and smaller), gray (larger than M12). |
| Thickness | 2 mm (0.079 in) |
Compatible Equipment
- Generator Sets: 3516C, 3512B, 3512E, C7.1, C4.4, C9, G3516C, G3516
- Track Loaders: 972, 826K, 834H, 994K, 953, 992, 982, 963, 824G, 973K, 963K, 816F, 990K, 993, 826G, 824C, 953D, 995, 826H, 963D, 953K
- Cold Planers: PM622, PM620, PL72, PL87, PL83, TH360B, PL61, SE50 VT, SE60 VT XW, PM-200
- Compactors: CB1.8, CB1.7, CC2.7 GC, CB2.9, CS68B, CS56B, CS78B, CS74B, CS12, CB-24B, CB-36B, CB-34B, CC-34B, 814, CP12 GC, CS11, CS7, 834K, 824K, 816, 815, CB2.5 GC, CB2.5, CB-64B, 825K, CS12 GC, CP56B, CB2.7, CP11 GC, CB2.7 GC, CB16, CW-34, C9.3B, CS54B, CP54B, CS79B, CB-66B, C13B, CB-44B, CB10, C-15, CB13, CB15, CS-54B, CS64B
- Engines: C15, C32, C13, C6.6, C27, C18, C175-16
- Excavators: 307.5, 320D2, 330, 3456, 320D, 307E, 390F L, 349D2, 349D2 L, 326D2 L, 336D2, 374D L, 390D L, 305, 326D2, 374F, 303.5E2 CR, 306E2, 316 GC, 374, 313 GC, 349F L, 313, 305E2 CR, 323, 323 GX, 416F2, 416E, 6030, 434F2, 120 GC, 3512C, 350, 320 GC, 305 CR, 352, 6060, 336F, 301.8, 320, 336, 318D2, 313F LGC, 336 GC, 336D2 GC, 336E L, 345B, 621K, 3516E, 349, 621H, 349E L VG, 3516B, 637K, 340, 345 GC, 320D3, 326, 395, 320 GX, 355, 313D2 GC, 336F L XE, 325B L, 315, 313D2, 330D2 L, 313D2-GC, 336E LN, 385C L, 385B, 385C, 349E L, 3508B, 336D2 XE, 330 GC, 330GC, 326GC, 336F LN, 6015 FS, 336F L, 320B, 330D2, 315F LCR, 340D2 L, 637E, 6020B, 432, 335, 336D2 L, 320D2 L, 657G, 365C L, 365C, 352F, 333 GC, 326 GC, XQP200, 333, 329E L, 301.6, 320E, 637G, 320D3 GC, 390D, 390F, 6018, 621G, 315 GC, 323 GC, 374F L, SE60 V XW, 325, 335F LCR, 385C FS, 323GC, 313F L, 320D FM, 318D2 L, 323D2 L, 323D2, 336E LH, 6015, 313 GX, 312 GC, 312 GX, 316 GX, 350MHPU, 302.7CR, 428F, 303.5CR, 303CR, 6040, 320D L, 336E, 312D2, 3101
- Asphalt Pavers: AP355F, AP300F, AP655F, AP655F L, AD30, AD45, AD63
- Skid Steer Loaders: 299D3 XE, 232D, 289D3, 246D, 272D3, 236D, 272D3 XE, 226B3, 246D3, 216B3, 239D3, 236D3, 242D3, 24, 236B3, 232D3, 262C, 279C, 262D3, 226B, 236, 226D3, 249D3, 259D3, 262D, 246C
- Motor Graders: 140 GC, 120, 18, 140H, 14M, 14, 140K, 12H, 16M3, 120H, 16M, 12K, 160K, 16, 349 GC, 316F
- Wheel Excavators: MD6310, MD6250, M315, M315GC, M320, MD6200, M313D, M320D2, M315D
- Dozers: D1, D9, D9T, D10, D11, D8R, D8, D8T, D6R XL, D6R LGP, D6K2, D6T LGP, D6T, D6N, D9R, D7E, D8N, D7R II, D7R, D4G, D6R III, D6M, D6R, D3K2 LGP, D7H, D5M, D4, D5K2 XL, D10R, D11T, D10T2, D11R, D10N, D7, D6R II, D10T, D3G, D5G, D5K LGP, D5K XL, D11N, D9N
- Compact Track Loaders: 279D3, 299D3
- Mini Excavators: 301.5, 306, 306.5, 308, 310, 303.5E, 307, 301.7CR, 305.5 GC, 308.5, 308E2, 305E2, 307E2, 305.5E2, 305.5E, 302CR
- Wheel Loaders: R1700K, 938M, 910, 980, 950L, 972L, 966L, 906K, 962L, 966, M314, RM400, 950H, 966H, 972H, 950 GC, 988K, 972G, 980H, 950, 938K, 924K, 962G, 966K, 950G, 928HZ, 924GZ, 924HZ, 980G, 926M, 988F, 966F, 992D, R1600H, R1300G, R2900 XE, RM500B, R2900G, 928G, R1700G, 834, 990H, 986H, 988G, 988H, 836, 980L, R3000H, R1700 XE
- Off-Highway Trucks: 797F, 740 GC, 740, 777, 772G, 745, 770G, 775G, 725, 793F, 793, 735, 730, 777E, 773E, 798 AC, 796 AC, 789D, 789, 773, 725C2, 777D, 794 AC, 745C, 785D, 773F, 740B, 793D, 771D, 773D, 785, 7495
