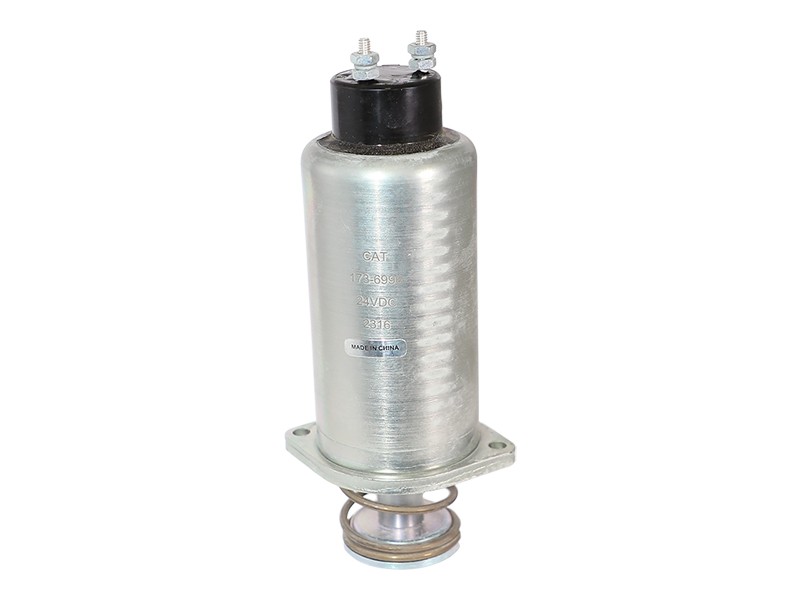

Description
The engine shutoff solenoid is an electronic device typically used in diesel engines to control the engine's fuel supply. When the solenoid is activated, it stops the fuel supply to the engine, causing the engine to shut down. This safety feature can be used to prevent engine accidents or damage
Features
- Mounting hole distance is 74.1 mm
- Type: Pull
- Coil Wire Temperature Rating: Class H (180C)
- Operating Voltage Range: 18-38.4 VDC at 93C coil temperature.
- Heat soaked to 25C, energized at 38.4 VDC for 70 s, re-energized at 21.6 VDC
Applications
The engine shutoff solenoid is an important safety feature that helps prevent accidents and protect the engine from damage. Shutoff solenoids are used in many diesel engines, including generators and construction and mining equipment.
Specifications
| Flange Hole Spacing | 74 mm (2.92 in) |
|---|---|
| Length | 112.5 mm (2.37 in) |
| Voltage | 24V Volts |
| Weight | 1.86 kg (4.1 lb) |
Compatible Equipment
- Dozers: D10N, D9N, D9L
- Wheel Loaders: 992C, 988F, 992D, 836
