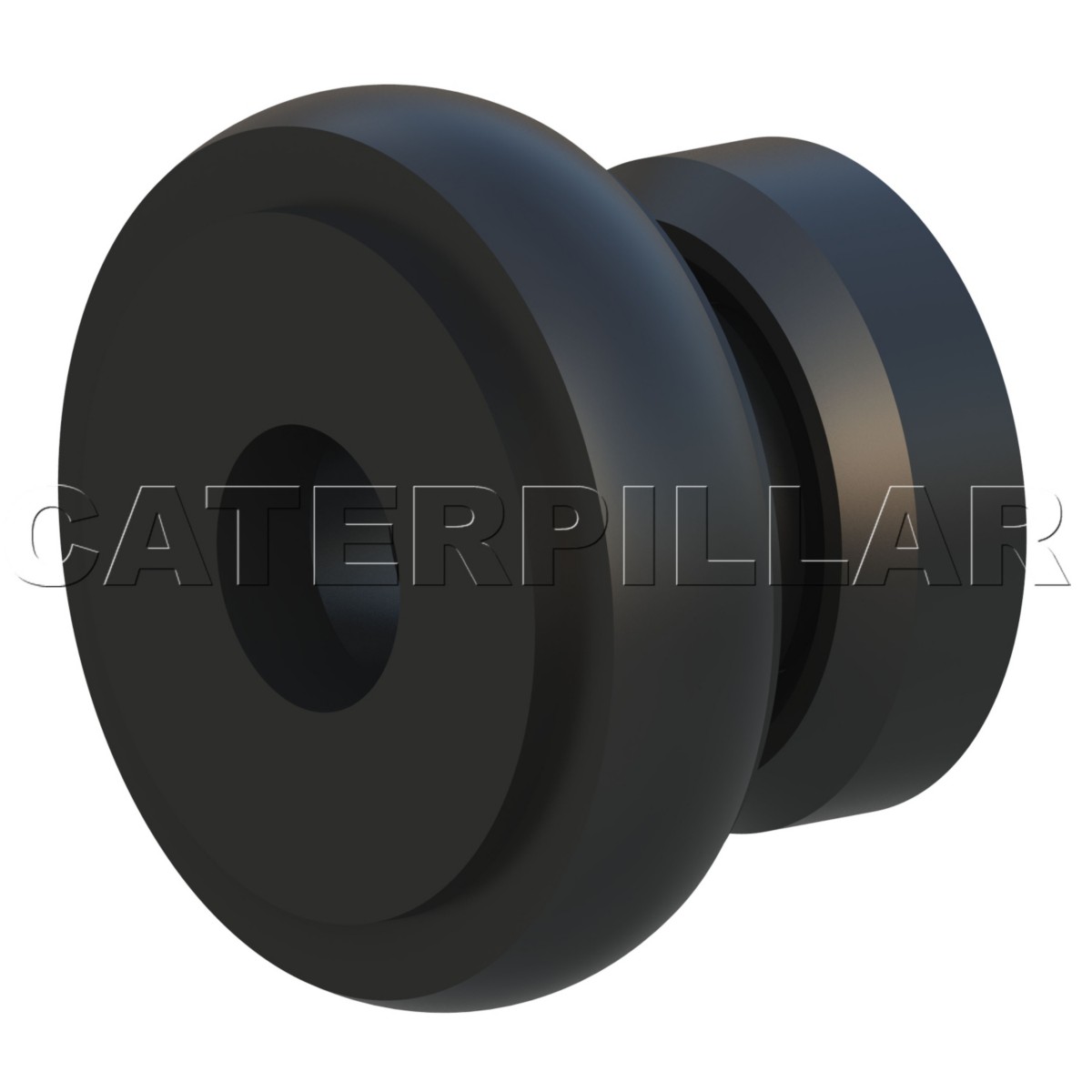

9W-9915 Marc 150 Two-Piece Asymmetric Isolation Mount
Cat® Isolation Mount for Engine Front Housing Support and Platform
Description
The isolation mount is used to mount and locate systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
Two-piece mounts are extremely versatile and include symmetric (two mounts) and asymmetric (mount plus pad) designs. They install in drilled holes in a support plate and are bolted through the center sleeve, either joined or loose.
Features
Cat® mounting systems are designed to reduce the stress and strain on installed components, improve component durability and extend service life, and improve operator comfort. The entire system (mount design, material selection, placement, fasteners, etc.) is optimized and validated to meet specific application requirements.
Two-piece mounts can be fine-tuned through the rubber compound and design geometry to suit a specific application. The mounts are typically pre-compressed for long service life.
Applications
Two-piece mounts are used in a variety of Cat system installations, including engines, transmissions, aftertreatment systems, electronics, cab and HVAC systems, hydraulic components, and structures.
Specifications
| Base Height | 6 mm (2.36 in) |
|---|---|
| Pilot OD | 50.2 mm (1.98 in) |
| Spacer Height | 25 mm (0.98 in) |
| Bonded Sleeve | None |
| Head Thickness | 28.5 mm (1.12 in) |
| Material Description | Rubber |
| Standard Bolt Size | M16 mm |
| Head Outside Diameter | 91 mm (3.58 in) |
| Inside Diameter | 16.8 mm (0.66 in) |
| Mounting Type | Two-Piece – Asymmetric |
Compatible Equipment
- Wheel Excavators: IT14G
- Compactors: CS7, CS11, CS12, CB-534D, CP54B, CB-564D, CW-34, CS-563E, CS-533C, CS54B, CB-44B, CW-16, CB-434D, CP56B, CS68B, CS56B, CS78B, CS74B, CB10, CS-54B, CS64B
- Engines: C32
- Dozers: D5G, D4G, D3G, D5K LGP, D5K XL
- Excavators: 416E, 428F
- Wheel Loaders: 924GZ, 928G, R1700 XE
- Off-Highway Trucks: 735, 730, 725, 725C2, 740
Additional information
| Machine Model | 416E, 428F, 725, 725C2, 730, 735, 740, 924GZ, 928G, C32, CB-434D, CB-44B, CB-534D, CB-564D, CB10, CP54B, CP56B, CS-533C, CS-54B, CS-563E, CS11, CS12, CS54B, CS56B, CS64B, CS68B, CS7, CS74B, CS78B, CW-16, CW-34, D3G, D4G, D5G, D5K LGP, D5K XL, IT14G, R1700 XE |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Dozers, Off-Highway Trucks, Compactors, Engines |
| Part Source | Genuine OEM |
