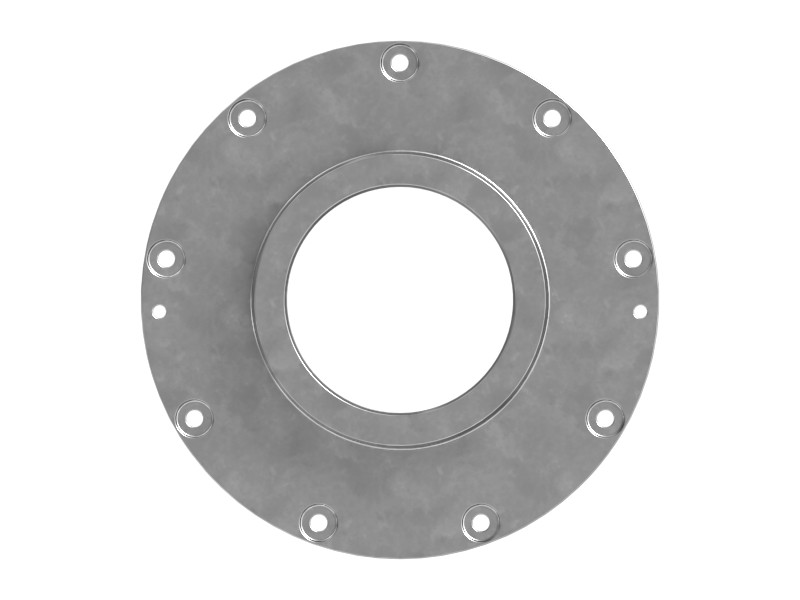

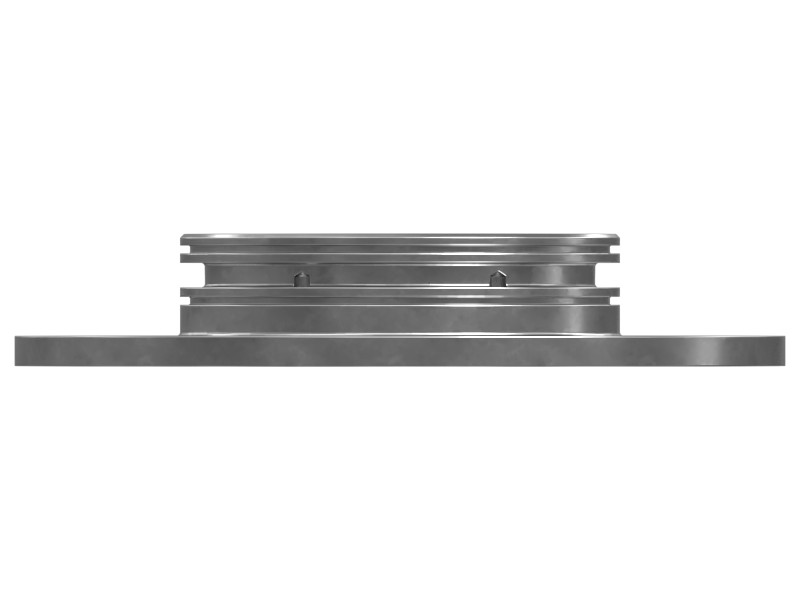

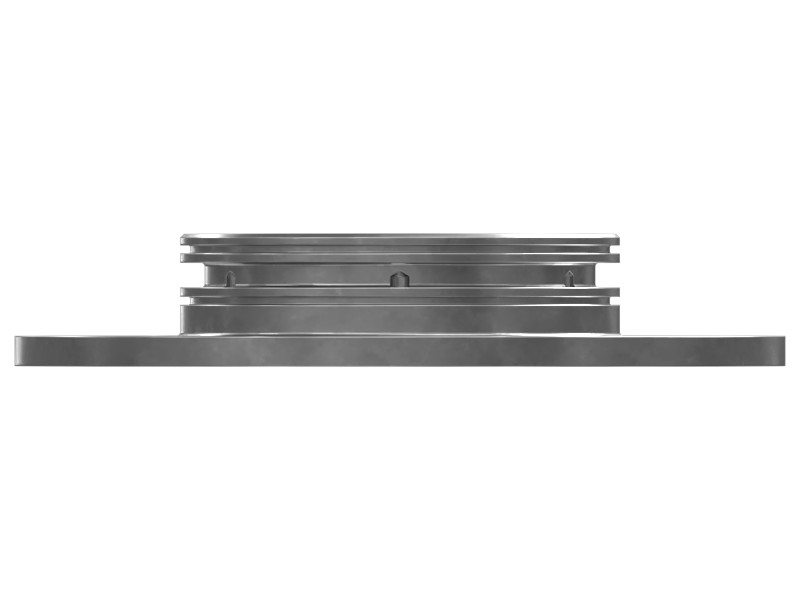

9W-8439 Planetary Transmission Manifold
Cat® 310 mm OD planetary transmission manifold for the power train
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Service part for the transmission planetary gears, located between the planetary gear carrier and the clutch housing.
Features
- Material: Steel
- Used with 3/8 in fasteners
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Cast Iron |
|---|---|
| Outside Diameter | 310 mm (12.20 in) |
| Inside Diameter | 135 mm (5.33 in) |
| Overall Width | 0 mm (2.09 in) |
| Hole Size | 11 (9X) mm (0.43 (9X) in) |
| Flange Hole Spacing | 284 mm (11.18 in) |
| Thread | 3/8-16 (2X) |
Compatible Equipment
- Off-Highway Trucks: 777E, 777D, 777
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
