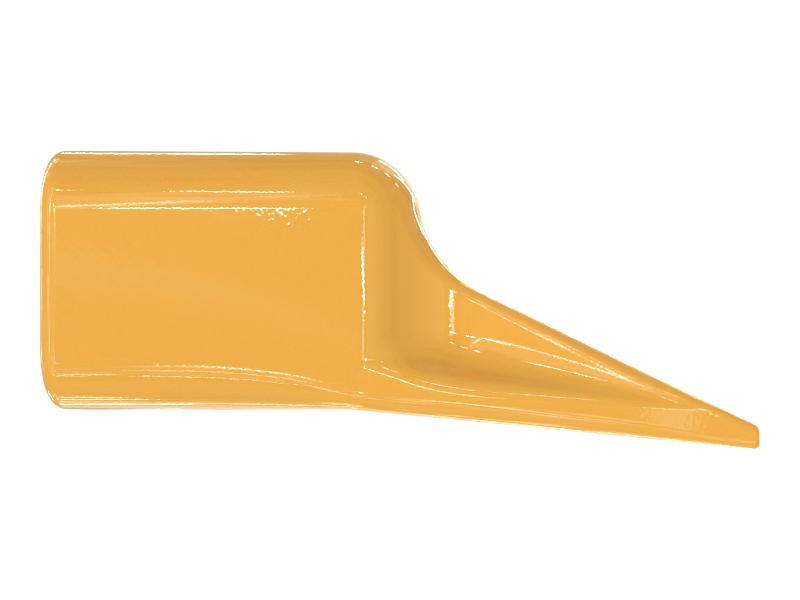

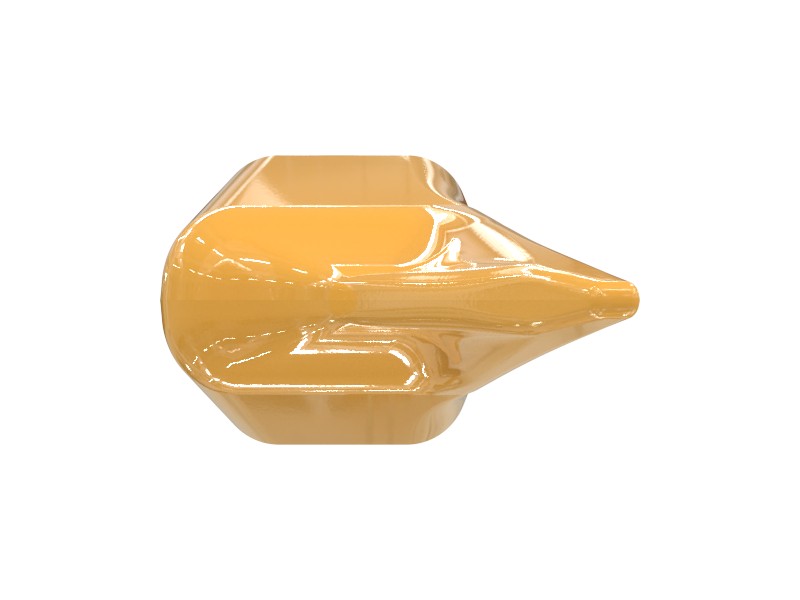

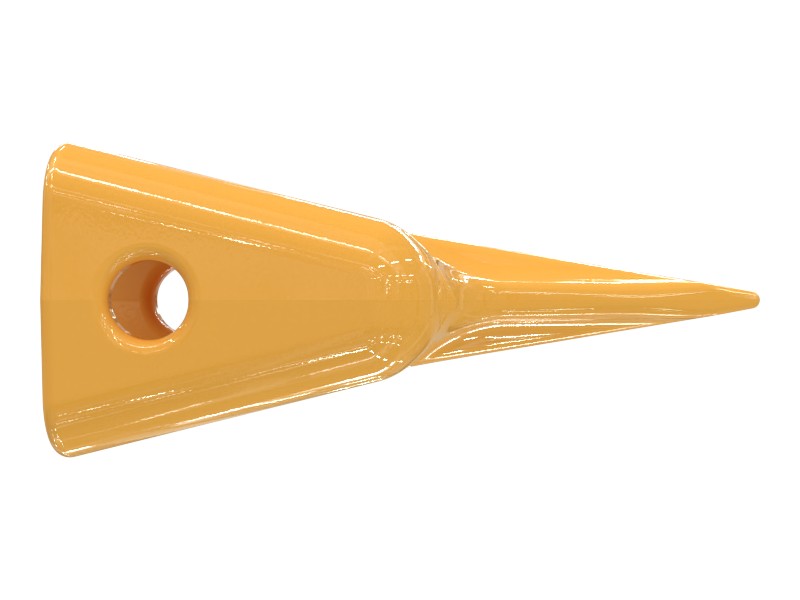

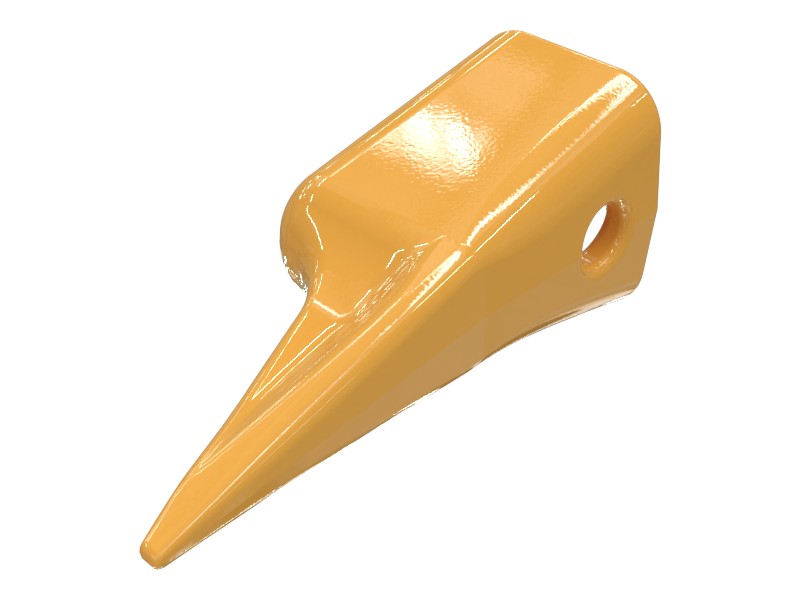

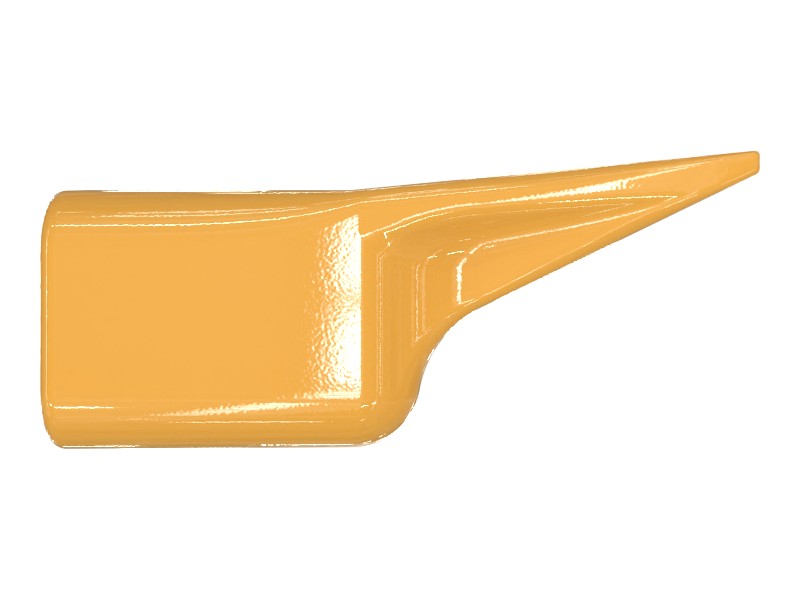

9W-8208 Bucket Penetration Tip
J200 Penetration Tip
Fitment data not listed — send us your machine model or serial number to confirm.
Description
Cat® J Series end bits offer unmatched manufacturing precision to protect your machine bucket from damage. Our Ground Engaging Tools (G.E.T.) are designed around the inherent characteristics of your Cat equipment to deliver consistent, superior protection.
With an industry-standard side pin design, Genuine Cat bucket tips can be used in a wide variety of applications, greatly increasing equipment versatility. The standard pin and retainer system allows quick installation and removal. You can also convert to our innovative hammerless J Series CapSure™ system to make the job easier.
The Penetration tip has a leading edge cross-sectional area reduced by 60%, providing extreme penetration in highly compacted materials. The single center rib self-sharpens as it wears, extending wear life and reducing downtime. Penetration tips are also available with Abrasion Resistant Material (ARM). Our tips are durable, cast from steel that holds its hardness and offers long wear life, enabling your machine to deliver the performance you need. Always choose Genuine Cat ground engaging tools to protect your investment.
Features
- 60% smaller leading edge cross-sectional area
- Single center rib self-sharpens as it wears
Applications
- Highly compacted material
Specifications
| Wear or Durability | Standard |
|---|---|
| Overall Length | 150 mm (5.906 in) |
| Shape | Corner Spike |
| Rear Width | 60 mm (2.362 in) |
| Rear Height | 64 mm (2.52 in) |
| Front Width | 37 mm (1.457 in) |
| Size | J200 |
| Series | J Series |
| End Bit Length | 150.5 mm |
Additional information
| Part Source | Genuine OEM |
|---|
