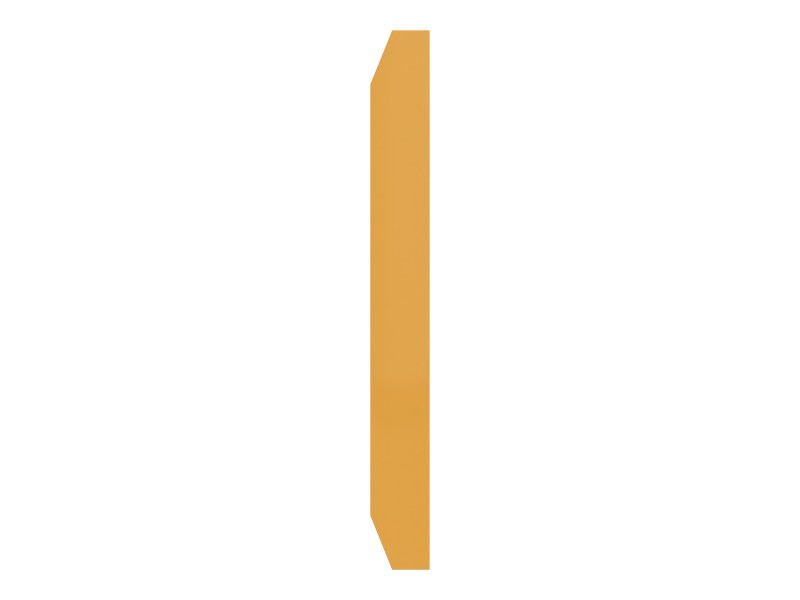

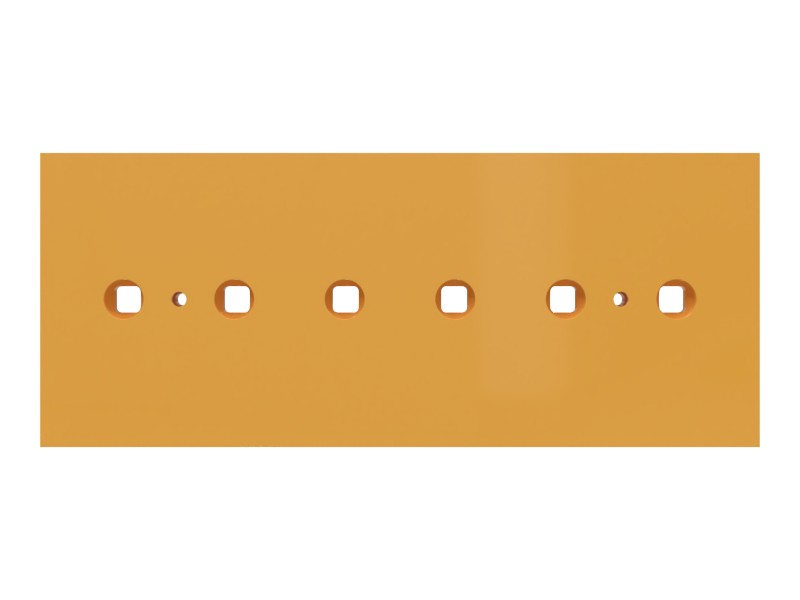

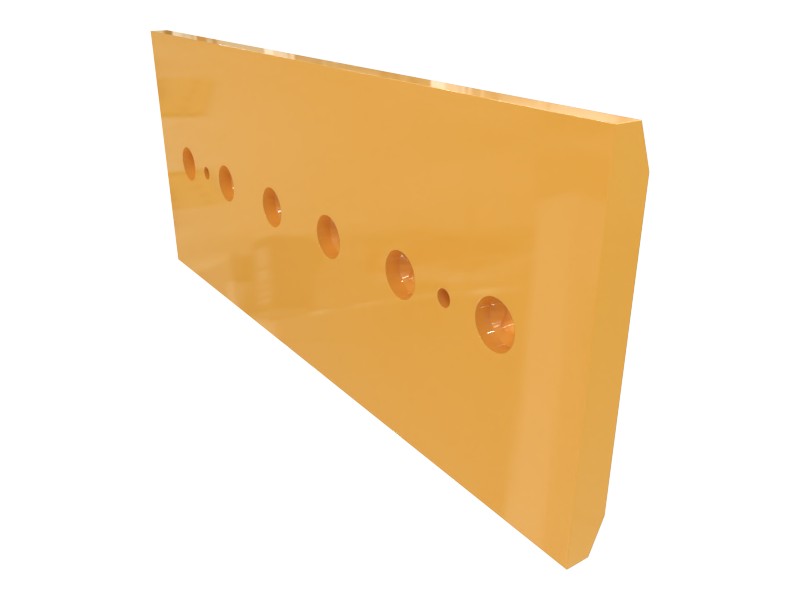

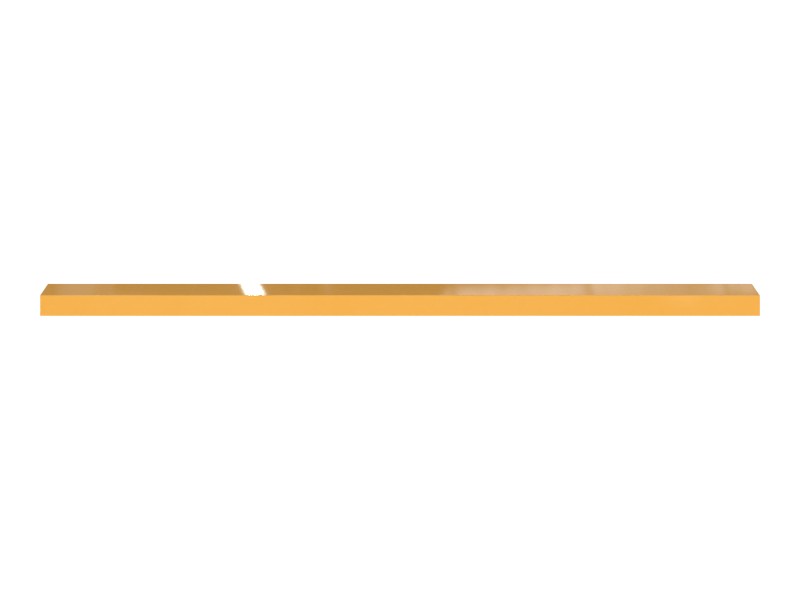

9W-6656 Dozer Cutting Edge
Cat® cutting edges help cut many materials, such as soil, rock, debris, or vegetation. They provide a sharp surface that effectively penetrates the ground and pushes and lifts material.
Description
Cat® cutting edges offer unmatched manufacturing precision to protect your machine's blade from damage. Our ground engaging tools (G.E.T) are designed around the inherent characteristics of your Cat equipment to deliver consistent, superior protection.
Cat dozer cutting edges strike the best balance between wear resistance and impact resistance. Cat cutting edges and end bits are designed as a balanced system, providing high strength for excellent breakage resistance and minimizing wear on the bottom and face of the cutting edge, for longer life, greater material moving capability, and less downtime.
Our cutting edges are durable and cast from steel that holds its hardness and offers long wear life, so your machine delivers the performance you need. Always choose Genuine Cat bucket protection to protect your investment.
Features
- Impact and wear resistant
- Delivers high productivity in any application
Application
- Production dozing, finish dozing, and overburden removal
- SU Blade
Specifications
| Material | Boron Steel |
|---|---|
| Position | RH/LH Intmd |
| Wear or Durability | Standard |
| Overall Length | 992 mm (39.055 in) |
| Hole Size | 1-1/4-in Plow Bolt (36.5 mm square) |
| End 2 Shape | Straight |
| Number of Holes | 6 |
| Thickness | 45 mm (1.772 in) |
| End 1 Shape | Straight |
| Cutting Edge Type | Continuous |
| End 2 Hole Offset | 115 mm (4.528 in) |
| Width | 406 mm (15.984 in) |
| End 1 Hole Offset | 115 mm (4.528 in) |
| Hole Spacing | 152.4 mm (6 in) |
Compatible Equipment
- Dozers: D10T2, D10T, D10R, D10N, D10
