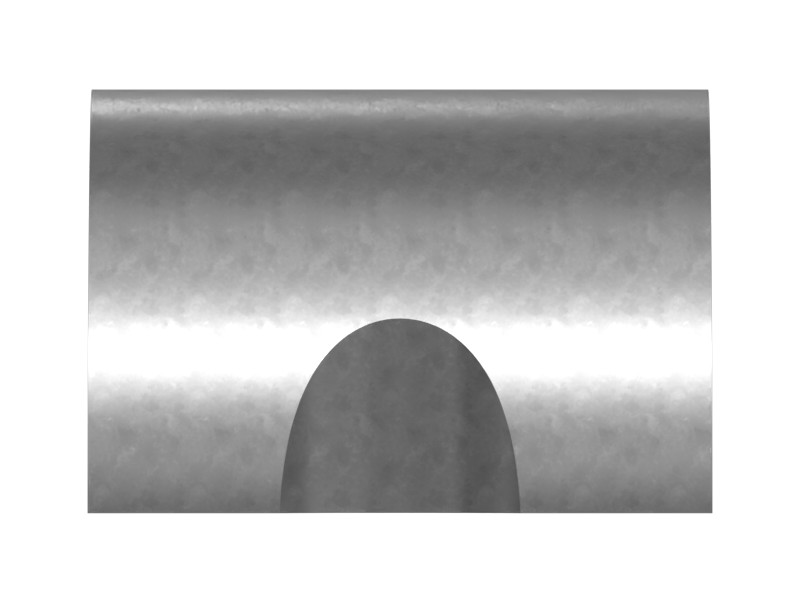

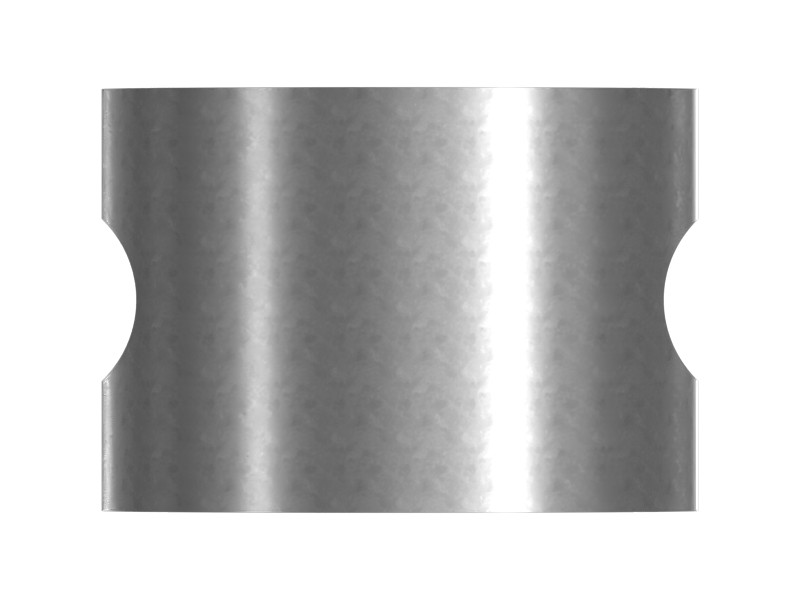

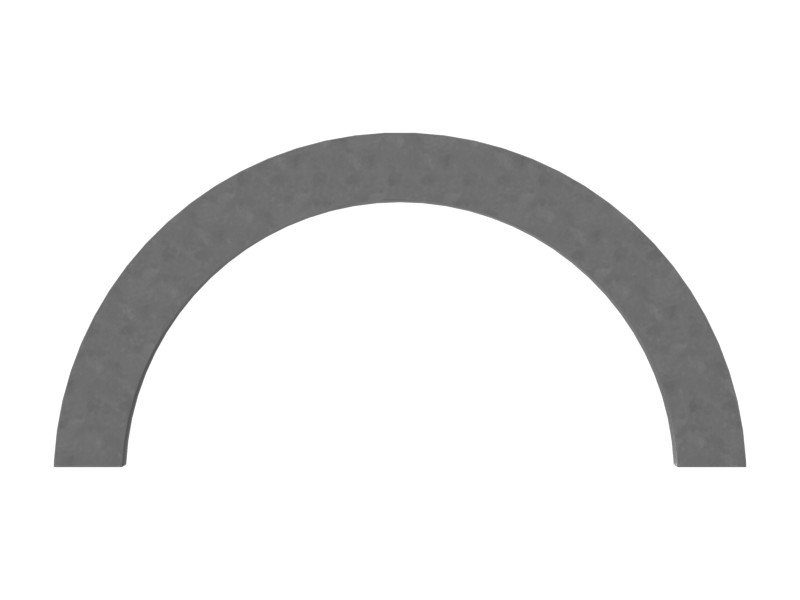

9W-4489 73.98 mm ID Suspension Bogie Insert
Cat® 73.98 mm ID steel suspension bogie insert used in the track roller frame of undercarriage systems
Description
Service part for the undercarriage system located between the bogie suspension and the idler shaft
Features
- Material: Steel
- Length: 120 mm (4.72 in)
- Thickness: 10 mm (0.39 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Steel |
|---|---|
| Overall Length | 92 mm (3.62 in) |
| Overall Width | 65 mm (2.56 in) |
| Overall Height | 44 mm (1.75 in) |
| Thickness | 9 mm (0.35 in) |
Compatible Equipment
- Dozers: D10R, D10T, D10N, D10T2, D9L, D10
