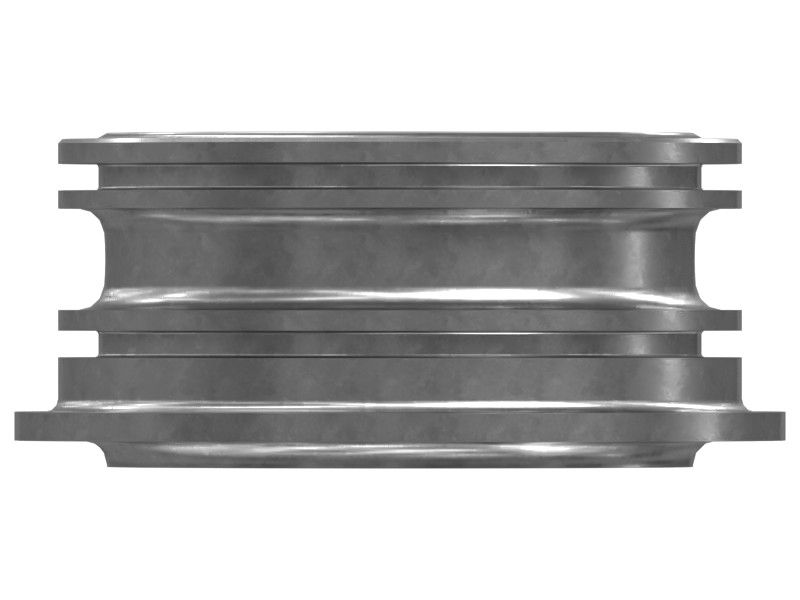

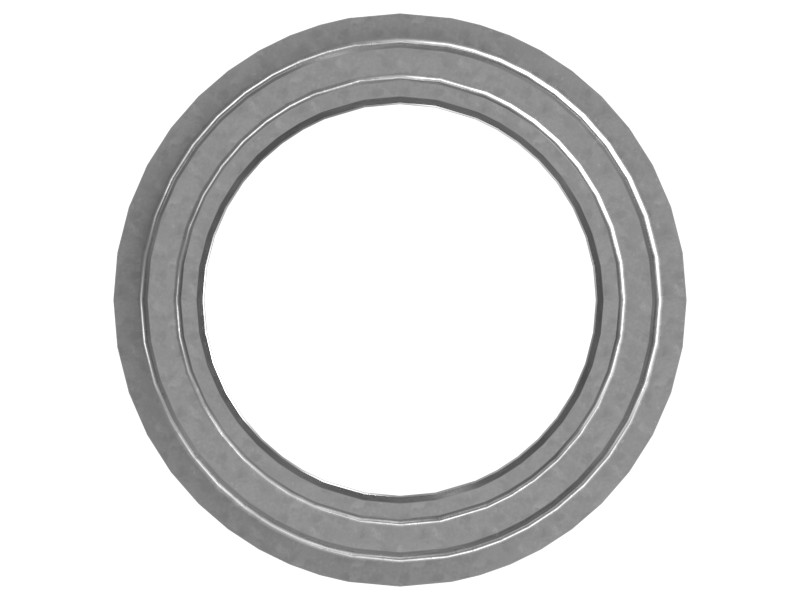

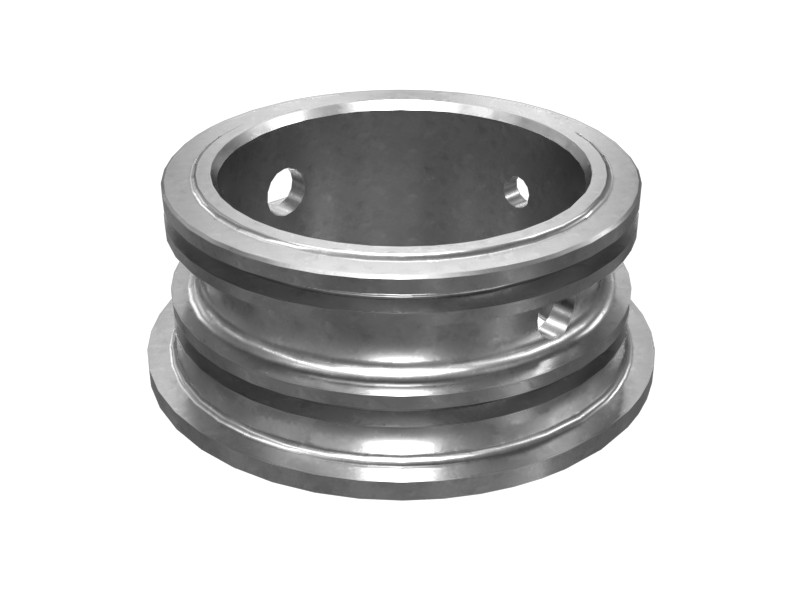

9W-3605 Seal Ring Carrier
Cat® Planetary Input Shaft Seal Ring Carrier, ID x OD x Length: 64.9 x 94.7 x 41 mm
Description
Part number 3P-3103 is secured on the input shaft and has grooves that hold the seal rings for the clutch housing in the planetary transmission.
Features
- Cast Iron Seal Ring Carrier
- Inside Diameter: 64.946 mm (2.556 in)
- Outside Diameter: 94.74 mm (3.729 in)
- Width: 41.0 mm (1.614 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Coating | Not Specified |
|---|---|
| Hole Size | 10 (2X) mm (0.27 in) |
| Inside Diameter | 65 mm (2.56 in) |
| Length | 41 mm (1.61 in) |
| Material | Cast Iron |
| Outside Diameter | 95 mm (3.73 in) |
Compatible Equipment
- Dozers: D7H, D8N
- Wheel Loaders: 966F, R1700 II, R1700G, R1600H
