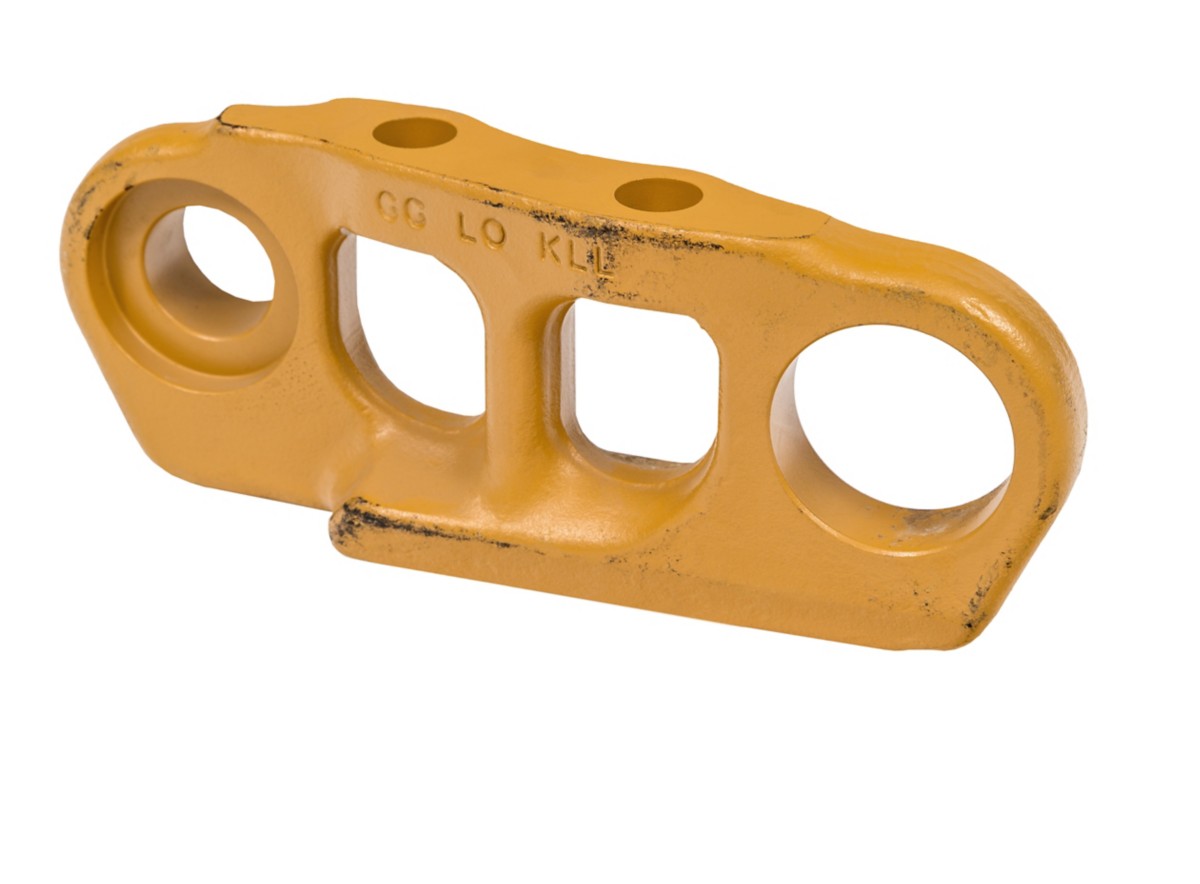

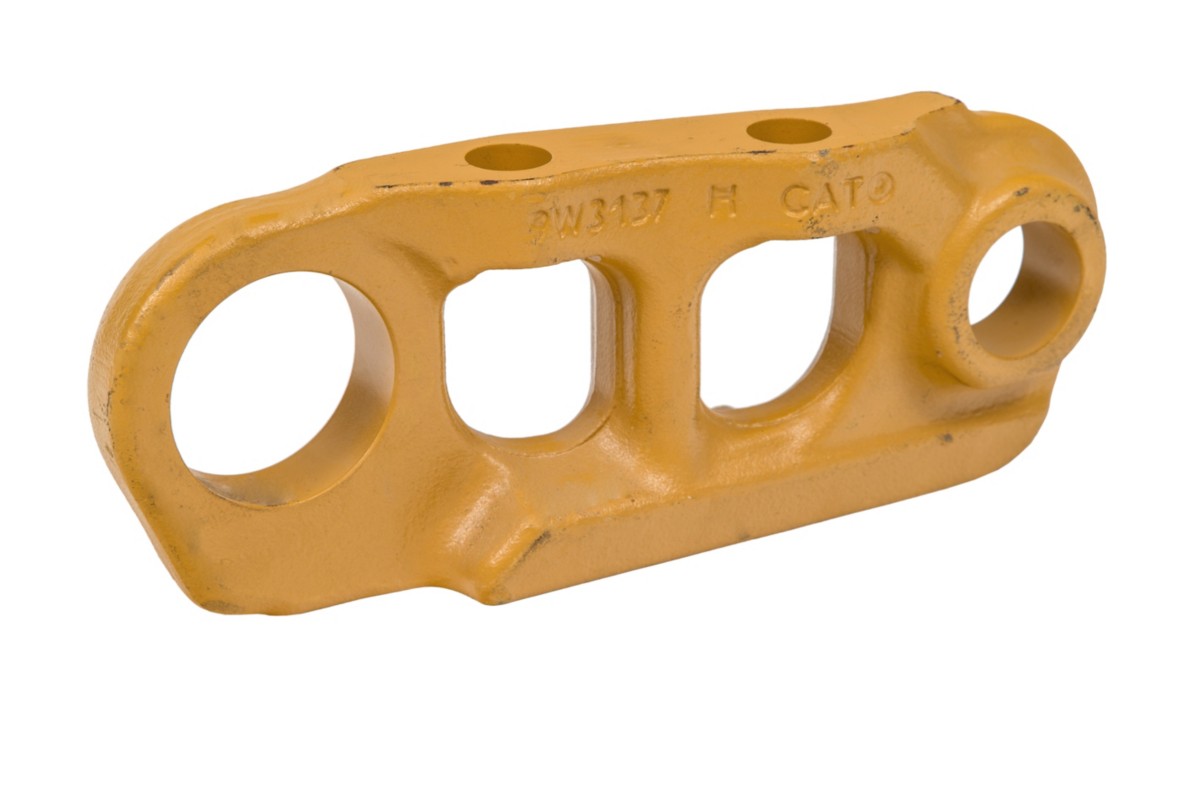

9W-3137 Grease Lubricated Track Link in Undercarriage Systems
Cat® Right Grease Lubricated Track Link for Undercarriage Systems
Description
The track link provides a continuous rail for the rollers and supports the weight of the machine.
Features
- Material: Steel
- Bushing Bore Diameter: 58.45 mm (2.3 in)
- Pin Bore Diameter: 36.32 mm (1.43 in)
- High body hardness
- Uniform rail hardness
- Curved outer rail design
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information
Specifications
| Material | Alloy Steel |
|---|---|
| Undercarriage System | HD |
| Wear Sensor | No |
| Track Pin Bore Diameter | 36.28 mm (1.428 in) |
| Overall Height | 106 mm (4.173 in) |
| Bushing End Bar Thickness | 23 mm (0.906 in) |
| Rail to Pin Boss Outside Diameter | 33.9 mm (1.335 in) |
| Bushing Bore Diameter | 58.45 mm (2.301 in) |
| Steel Grade | 1E0669 |
| Track Link Crown Height | 0 mm (0 in) |
| Pin Retention System | Press Fit |
| Hole to Rail | 60 mm (2.362 in) |
| Track Pitch | 190 mm (7.48 in) |
| Pin End Bar Thickness | 35 mm (1.378 in) |
| Bolt Hole Diameter | 21 mm (0.827 in) |
| Lug Thickness | 2 mm (0.079 in) |
| Main Bolt Thread | M20 |
| Master Link Type | None |
Compatible Equipment
- Motor Graders: 316F
- Excavators: 320 GX, 320 GC, 320, 320D3, 320D L, 320D3 GC, 323, 320D FM, 320D2 L, 323D2 L, 318D2 L, 320B, 345C L, 345D L, 315C, 320C, 323D L, 311B, 320D RR, 323D2, 320D2 GC, 324D L, 325, 323D, 315D L, 318D L, 326D L, 323GC, 329D L, 320E, 320D GC, 320C L, 329E, 324D, 318D2, 325D, 330D2, 320D, 320D2, 326D2 L, 326D2
Additional information
| Machine Model | 311B, 315C, 315D L, 316F, 318D L, 318D2, 318D2 L, 320, 320 GC, 320 GX, 320B, 320C, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D RR, 320D2, 320D2 GC, 320D2 L, 320D3, 320D3 GC, 320E, 323, 323D, 323D L, 323D2, 323D2 L, 323GC, 324D, 324D L, 325, 325D, 326D L, 326D2, 326D2 L, 329D L, 329E, 330D2, 345C L, 345D L |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
