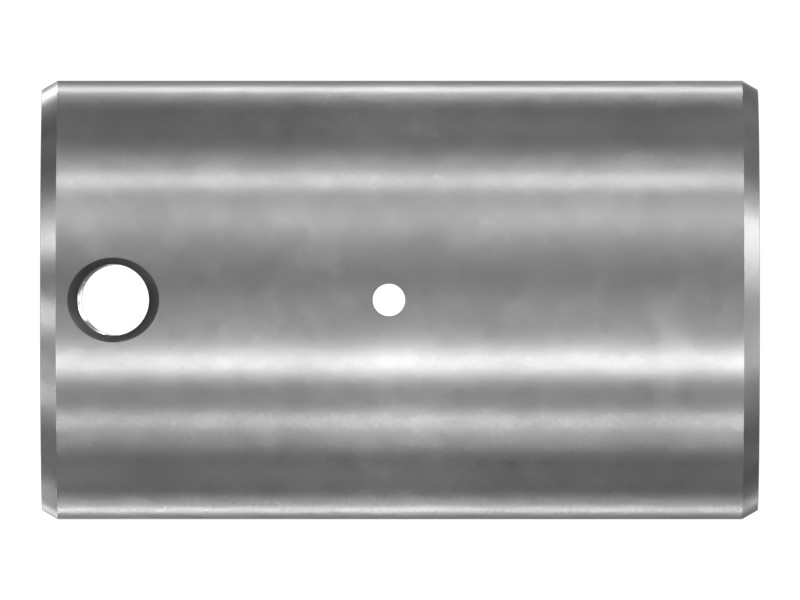

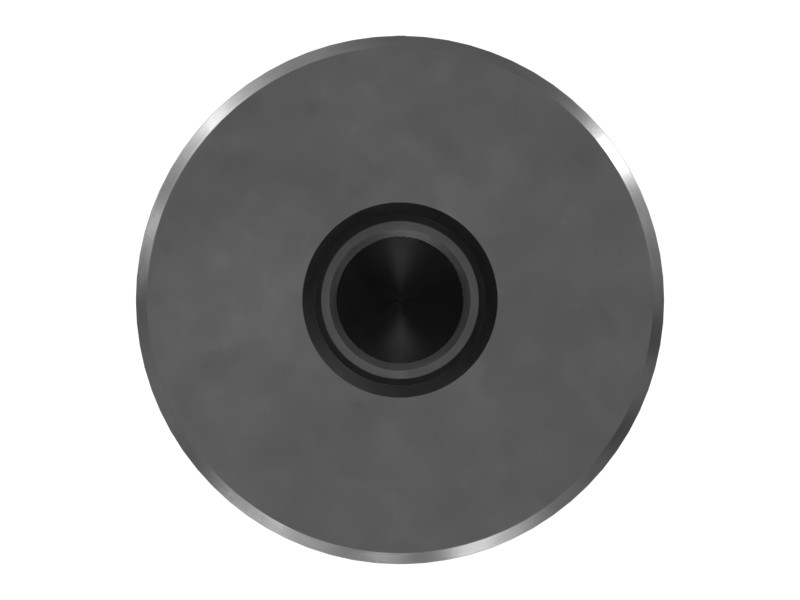

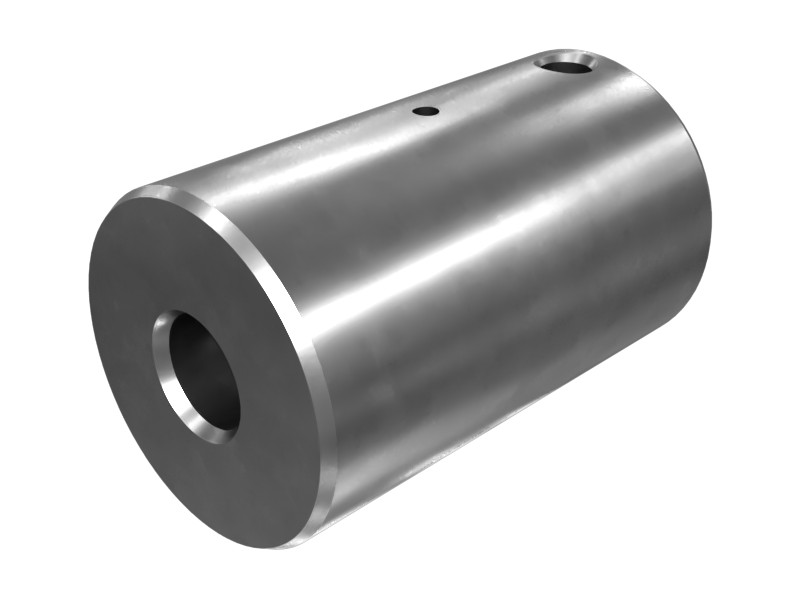

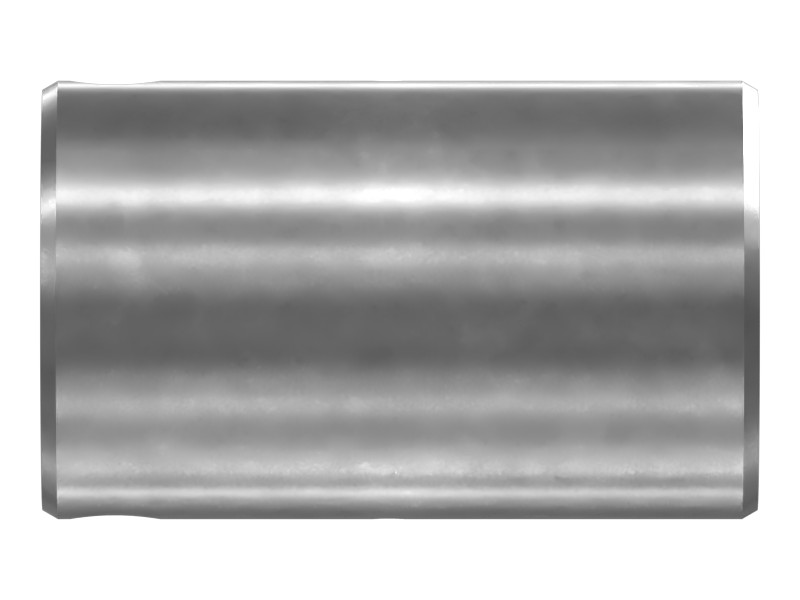

9W-3084 39.22 mm Diameter Planetary Gear Shaft
Cat® 39.22 mm Diameter Transmission Planetary Gear Steel Shaft with Lubrication Hole
Description
Cat powertrain components must withstand extremely high torque, high shock loads, and frequent direction changes and shifts. Cat designs and manufactures transmission and final drive components with these demands in mind, ultimately improving powertrain durability and performance over the life of the machine. Cat planetary shafts are designed to control the speed, direction, and force transmitted while Cat machines operate.
Features
- Hardened steel planetary shaft
- Outside Diameter: 39.22 mm (1.544 in)
- Length: 64 mm (2.519 in)
- Chamfered end
Applications
Cat planetary shafts are used in planetary assemblies to transfer engine power to the power train. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Low Alloy Steel |
|---|---|
| Material Description | Steel |
| Outside Diameter | 39.22 mm (1.544 in) |
| Overall Length | 64 mm (2.519 in) |
Compatible Equipment
- Generator Sets: C4.4, 3512B
- Excavators: 3512C
- Off-Highway Trucks: 777D, 777E, 777
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
