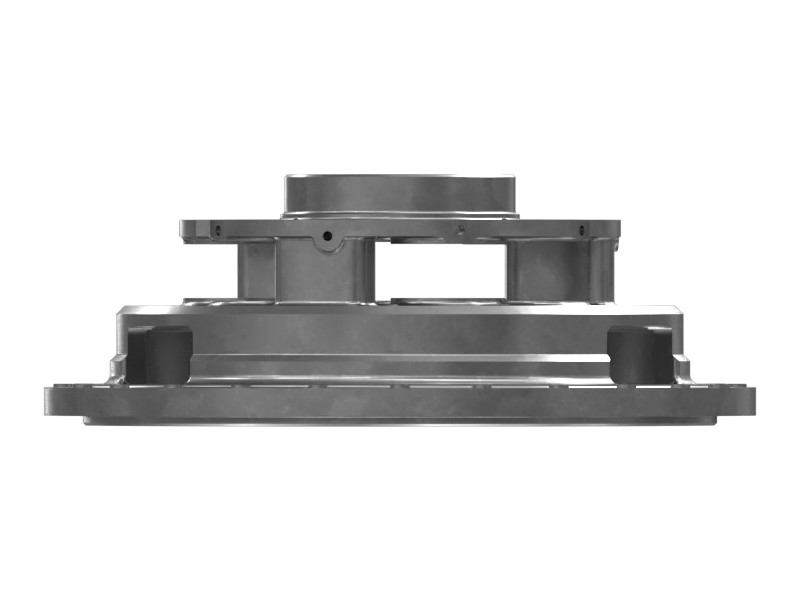

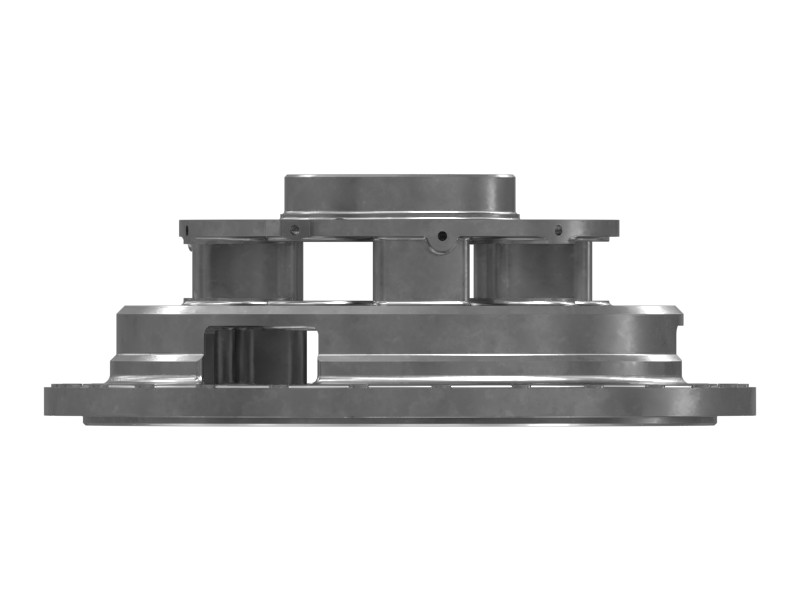

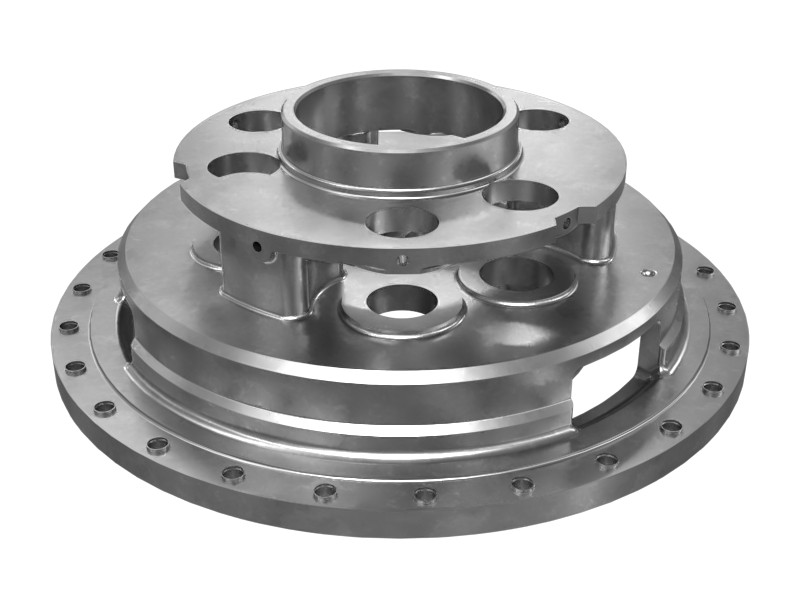

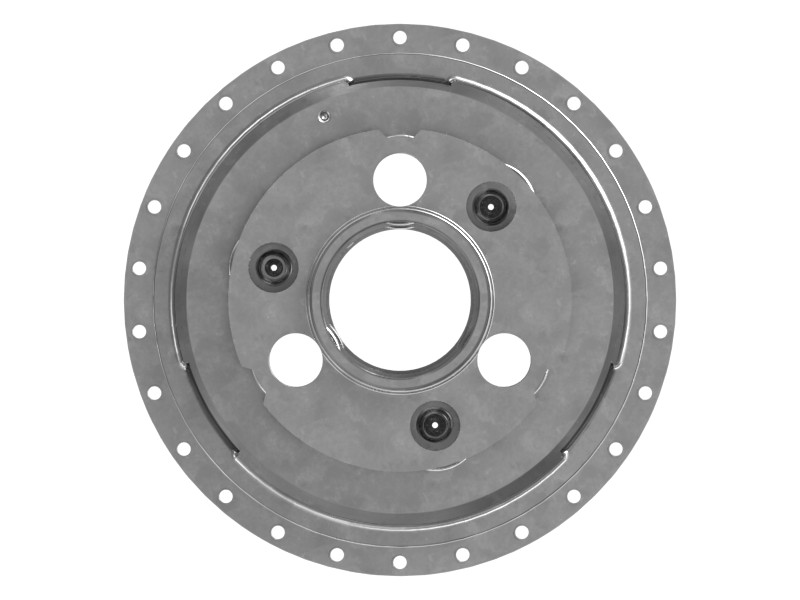

9W-3083 432 mm OD Planetary Gear Carrier
Cat® Planetary Transmission Planetary Gear Carrier that enables gear speed reduction or speed increase within the transmission system
Description
Cat powertrain components must withstand extremely high torque, high shock loads, and frequent directional shifts. Cat designs and builds transmission and final drive components with these demands in mind, ultimately improving the durability and performance of the powertrain over the life of the machine. The Cat planetary gear carrier is an important powertrain component that connects the planetary gears with the sun gear in a planetary gear system.
Features
Cast iron planetary gear carrier
Applications
Service parts for transmissions. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Ductile (Spheroidal) Iron |
|---|---|
| Material Description | Cast Iron |
| Outside Diameter | 432 mm (17.007 in) |
| Inside Diameter | 111.18 mm (4.377 in) |
| Overall Length | 152 mm (5.984 in) |
Compatible Equipment
- Off-Highway Trucks: 777, 777D, 777E
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
