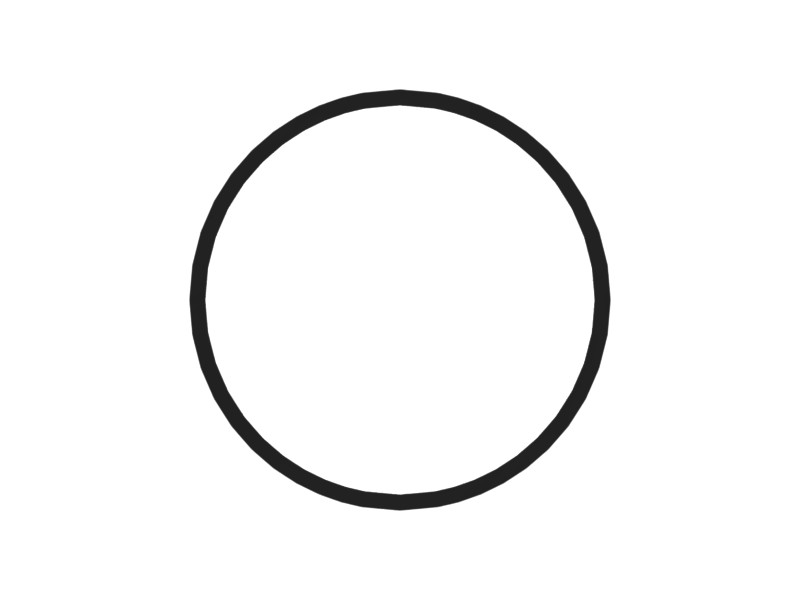

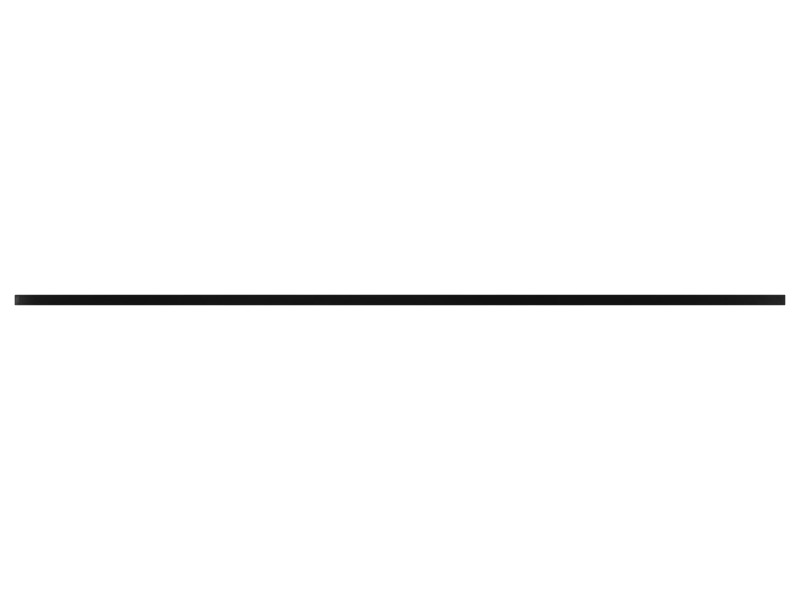

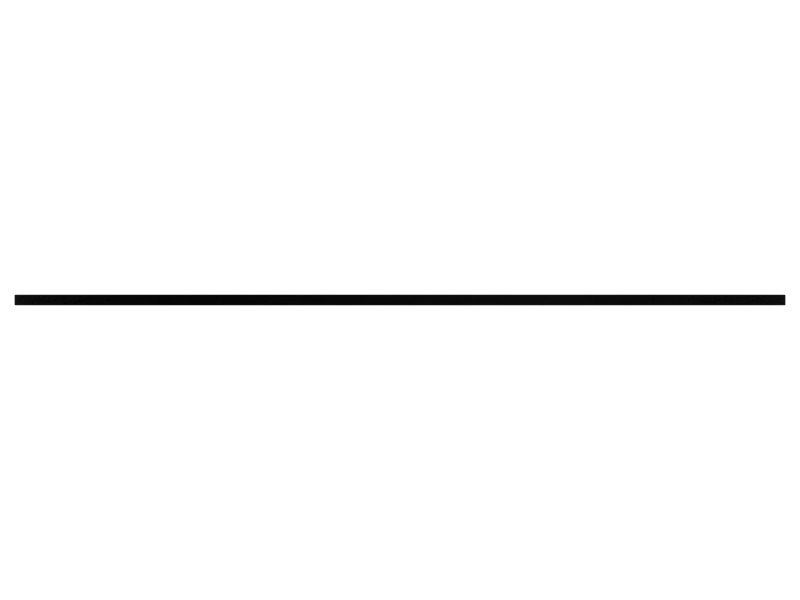

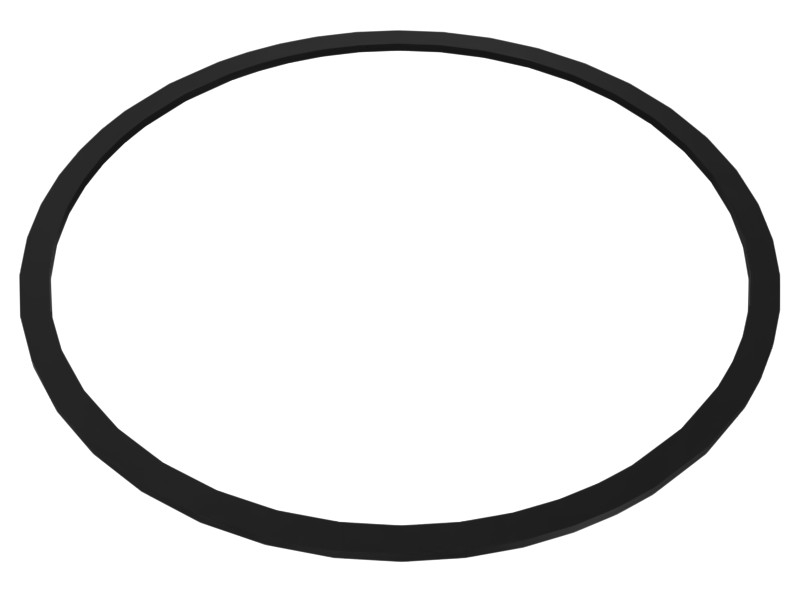

9U-9322 211.08 mm OD Retaining Ring
Cat® carbon steel internal retaining ring, installs in a machined groove in the housing
Description
Cat® retaining rings install in a machined groove in a housing/bore (internal) or on a shaft (external), providing high strength and long service life in a wide range of applications. Cat retaining rings are manufactured to precise specifications to be durable, reliable and efficient. You can count on this "Built For It" product to help you get more work done.
Features
- Retaining rings meet or even exceed ANSI, ASTM and DIN requirements
- ROHS compliant
Applications
- Assembles into a shaft or housing groove to secure parts or assemblies.
Specifications
| Material Description | Steel |
|---|---|
| Cross Hole | None |
| Thickness | 2.82 mm |
| Remarks | Free Diameter: 211.08, Radial Wall: 7.92, Lug Height: 0, Groove Width: 3.58, Groove Diameter: 205.74, Housing Diameter: 195.8 |
Compatible Equipment
- Generator Sets: C7.1
- Wheel Loaders: 950, 962L, 950L, 950 GC
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
