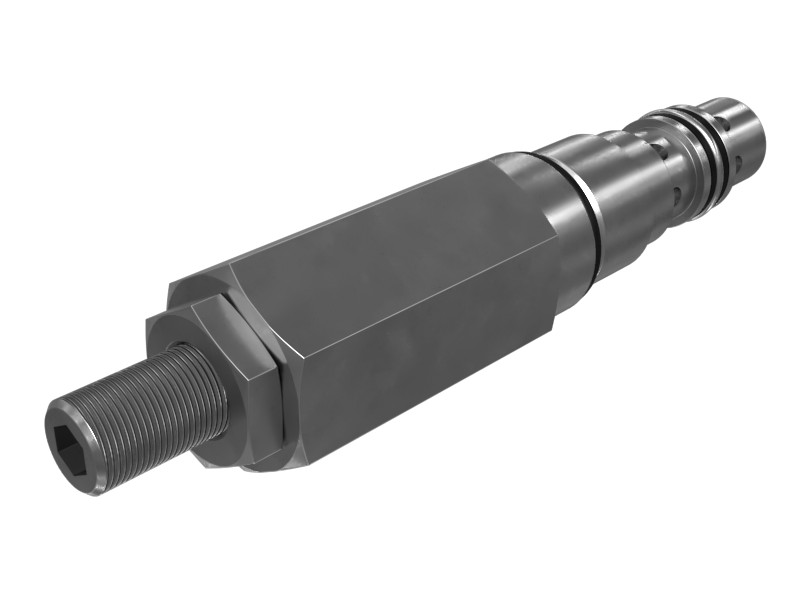

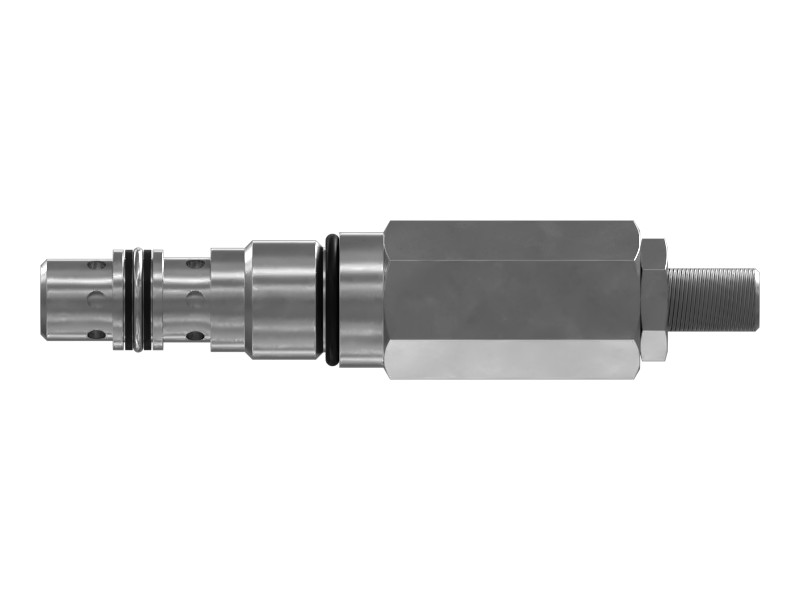

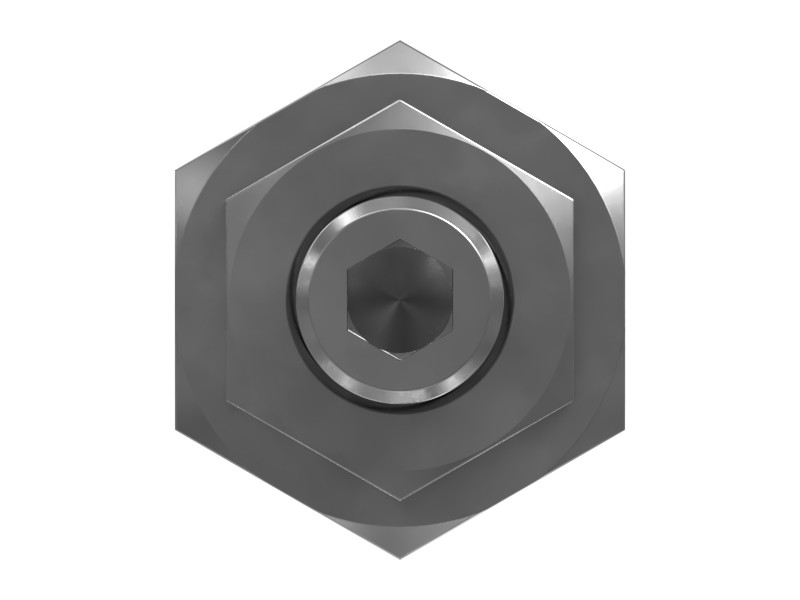

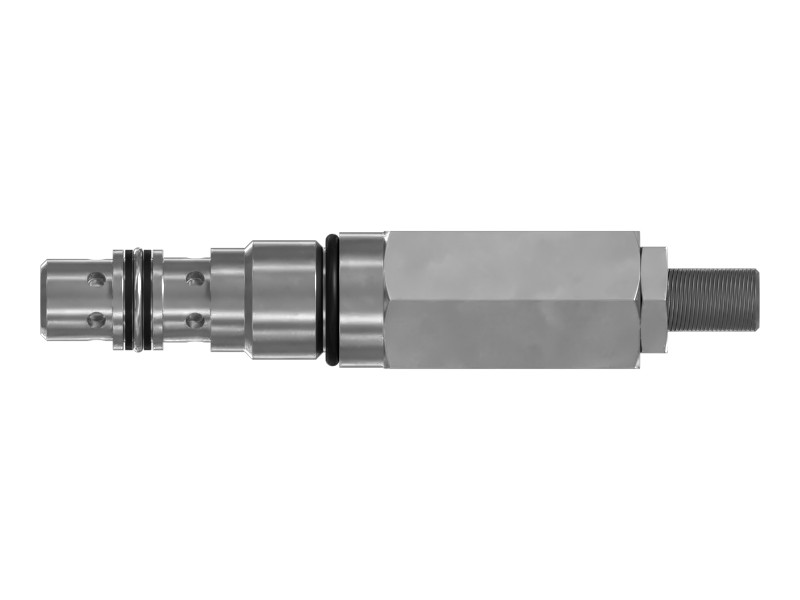

9T-7418 Backup Pump Relief Valve
Cat® Backup Pump Relief Valve for Steering Control Valve
Description
The Cat relief valve assembly releases fluid when a safety threshold is reached to prevent excessive pressure buildup.
Features
- Steel relief valve
- Flow Rate: 125 L/min
- Maximum Working Pressure: 35000 kPa (5075 psi)
- Thread Size: 3/4-16
- External Hex Size: 22 mm (0.87 in)
Applications
Steering valve and load control valve assembly for Cat machines. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Zinc |
|---|---|
| Material Description | Steel |
| Length | 114.5 mm (4.5 in) |
| Hex Size | 22 mm (0.87 in) |
| Thread Size | 3/4-16 in |
Compatible Equipment
- Track Loaders: 826H, 826K, 824G, 826G
- Compactors: 825K, 824K, 816, 815, 814
- Wheel Loaders: 980H, 980G
