Description

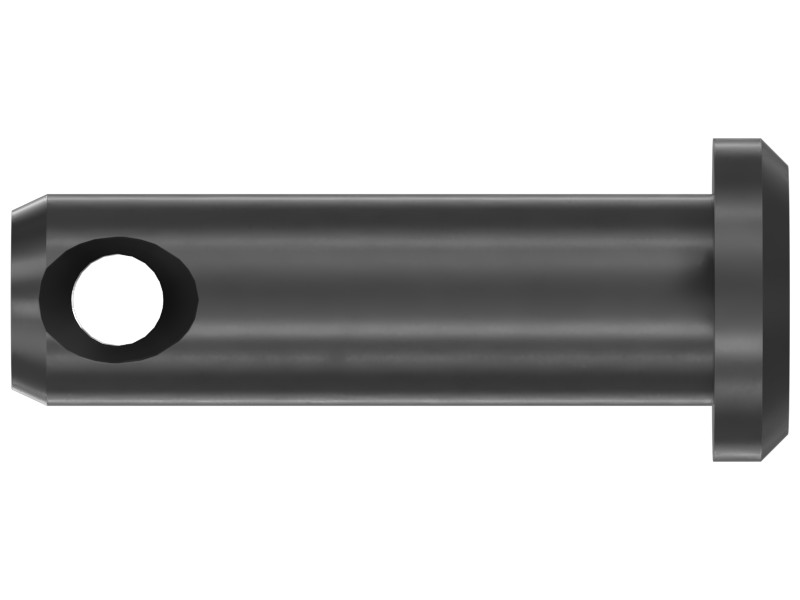

A clevis pin with cross hole is a solid cylindrical pin with a cylindrical head mitered on one end, and a drilled hole at the headless end for placing a clevis pin. Suitable for use with clevis pins.
Cat® fasteners and hardware are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners and hardware are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements
- Coating meets the special requirements of different applications (RoHS compliant)
Applications
- Cat fasteners and hardware are trusted to build, maintain or repair most machines and shop applications worldwide
Specifications
| Material | Alloy Zinc |
|---|---|
| Pin Type | Cross Hole |
| Pin Diameter | 6.22 mm (0.245 in) |
| Pin Length | 20.62 mm (0.812 in) |
| Coating | Zinc Electroplated |
| Pin Length – B | 20.62 in |
| Cross Hole | 2.7 |
| Material Description | Steel – Pins and Dowels |
| Head Height | 2.2 mm |
| Head Diameter | 9.5 mm |
| Remarks | Pin Diameter: 6.22, Length to Cross Hole: 17.5 |
Compatible Equipment
- Motor Graders: 140G, 120, 16
- Track Loaders: 824C
- Cold Planers: PM622, PM620
- Dozers: D10, D11R, D11N, D10N, D10R, D6M, D4E, D6R, D7H, D5H, D7R, D7G, D9L, D5M, D8R, D6G2 XL, D9N, D8N, D8L, D6G2 LGP, D7G2, D6G
- Excavators: 325B L, 3126
- Wheel Loaders: 992C, R1700 II, 966F, 980
- Off-Highway Trucks: 773, 789, 785, 793
Additional information
| Machine Model | 120, 140G, 16, 3126, 325B L, 773, 785, 789, 793, 824C, 966F, 980, 992C, D10, D10N, D10R, D11N, D11R, D4E, D5H, D5M, D6G, D6G2 LGP, D6G2 XL, D6M, D6R, D7G, D7G2, D7H, D7R, D8L, D8N, D8R, D9L, D9N, PM620, PM622, R1700 II |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Cold Planers |
| Part Source | Genuine OEM |
