Description

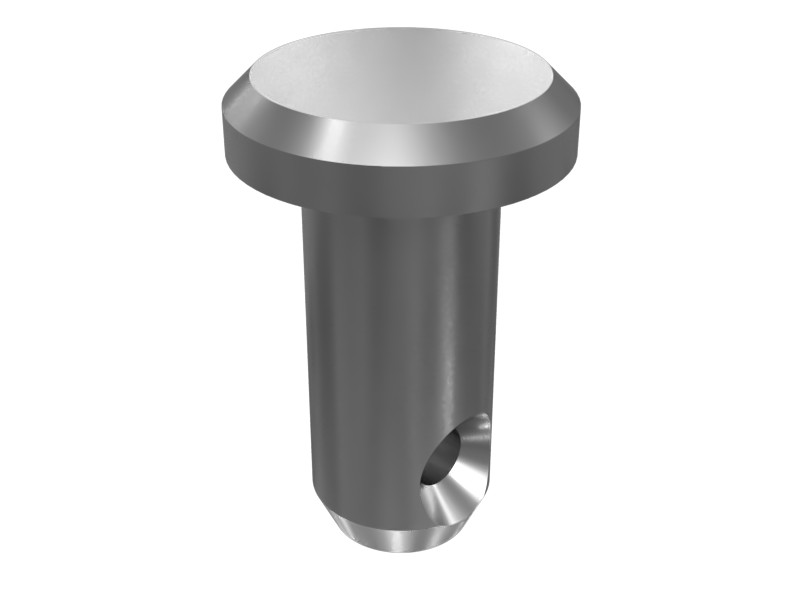

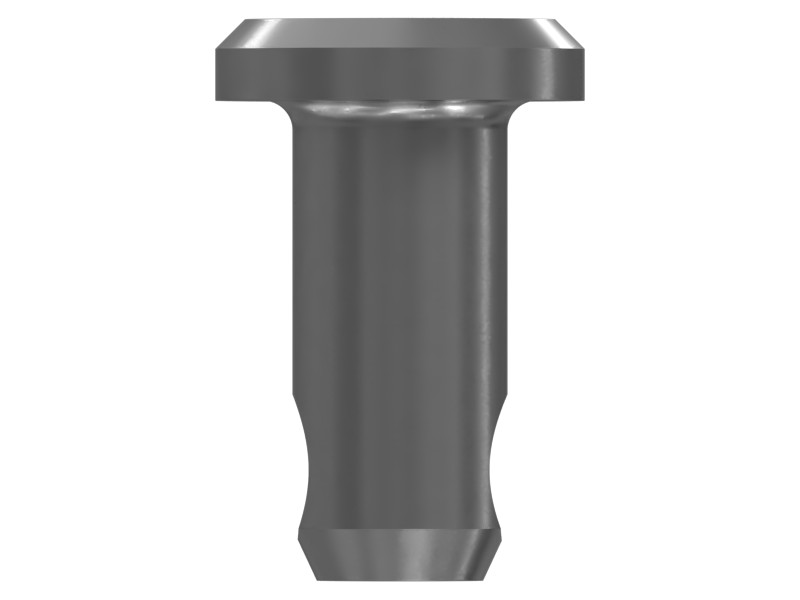

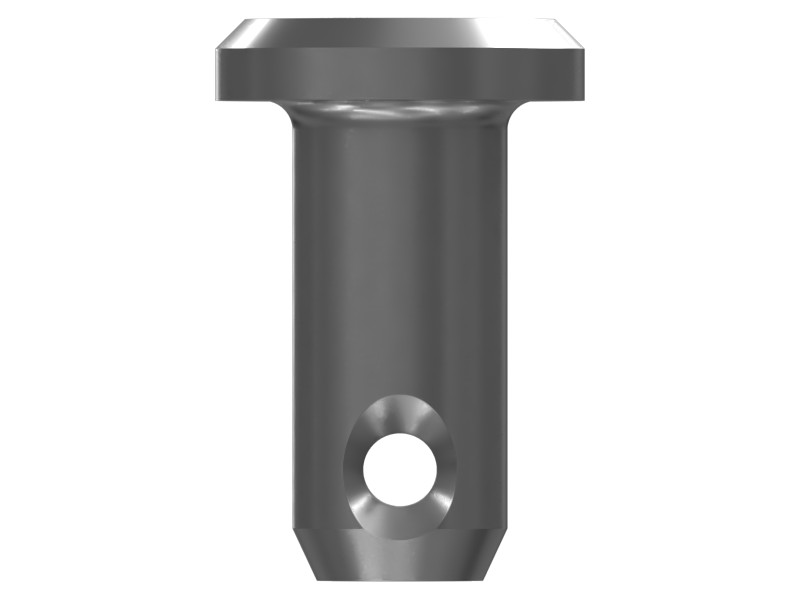

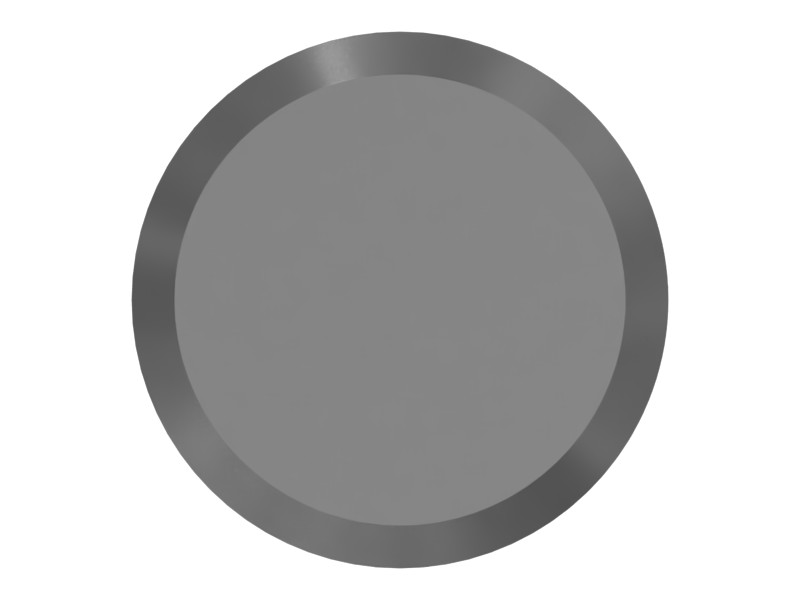

A clevis pin (such as zinc-plated steel part 9P-6895) is an unthreaded headed pin that is inserted into a drilled hole and secured with a secondary fastener. Cross-hole clevis pins are secured with cotter pins. These pins are easy to install and remove and are suitable for light-duty applications.
Features
- Cross-hole clevis pin
- Zinc-plated steel
- Pin Diameter: 5.82 mm (0.23 in)
- Length: 13 mm (0.5 in)
- Head Diameter: 10 mm (0.4 in)
- Head Height: 2.2 mm (0.1 in)
- Cross Hole Size: 2.0 mm (0.08 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Pin Length | 13 mm (0.512 in) |
|---|---|
| Pin Type | Clevis Pin |
| Type | Cross Hole |
| Plating | Zinc Plated |
| Length | 13 mm (0.5 in) |
| Pin Diameter | 5.82 mm (0.23 in) |
| Head Diameter | 10 mm (0.4 in) |
| Head Height | 2.2 mm (0.1 in) |
| Hole Size | 2 mm (0.08 in) |
Compatible Equipment
- Generator Sets: 3512B, 3516C, 3512E, G3516
- Motor Graders: 140G
- Engines: C32, C175-16
- Dozers: D4E
- Excavators: 3512C, 3508B, 3516B
