Description
Cat powertrain components must withstand extremely high torque, high shock loads, and frequent direction changes and shifts. Cat designs and manufactures transmission and final drive components with these demands in mind, ultimately improving powertrain durability and performance over the life of the machine. Cat planetary shafts are designed to control the speed, direction, and force transmitted while Cat machines operate.
Features

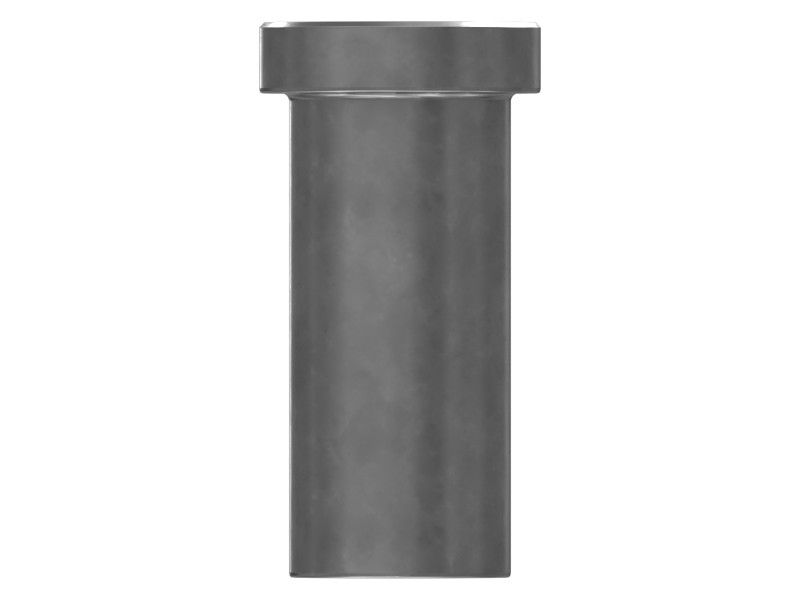

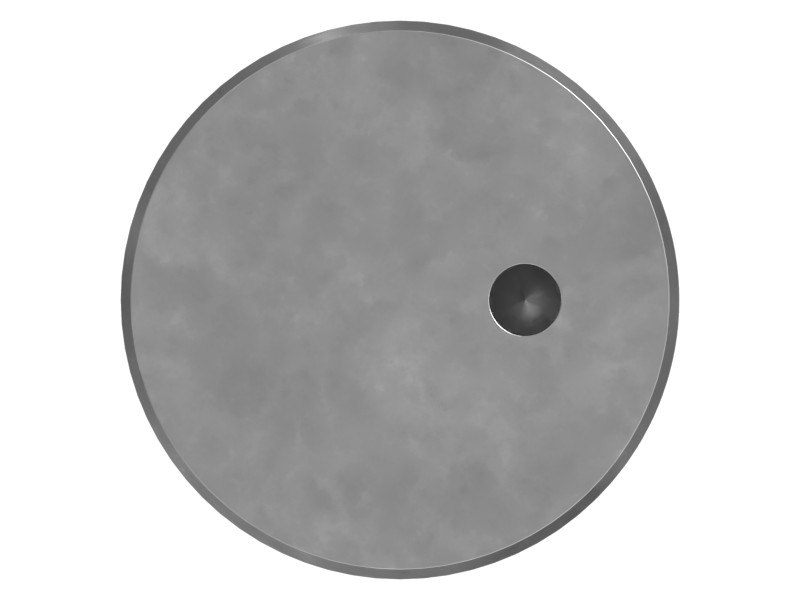

- Hardened steel planetary shaft
- Shaft Diameter: 66.708 mm (2.626 in)
- Effective Shaft Length: 145.748 mm (5.738 in)
- Head Diameter: 84.721 mm (3.335 in)
- Length: 167.0 mm (6.574 in)
- Thread Size: 1/2-13
- Chamfered end
Applications
Service part for the final drive assembly. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Plating | No Plating |
|---|---|
| Internal Grease Passage Hole | No |
| Effective Length | 145.8 mm (5.74 in) |
| Outside Diameter | 66.7 mm (2.626 in) |
| Puller Thread | No |
| Diameter | 66.7 mm (2.626 in) |
| Material Description | Steel |
| Shaft Diameter | 66.708 mm (2.626 in) |
| Head Diameter | 84.721 mm (3.335 in) |
| Overall Length | 167.0 mm (6.574 in) |
| Thread Size | 1/2-13 in |
Compatible Equipment
- Dozers: D8L, D9R, D9N, D9T, D9
