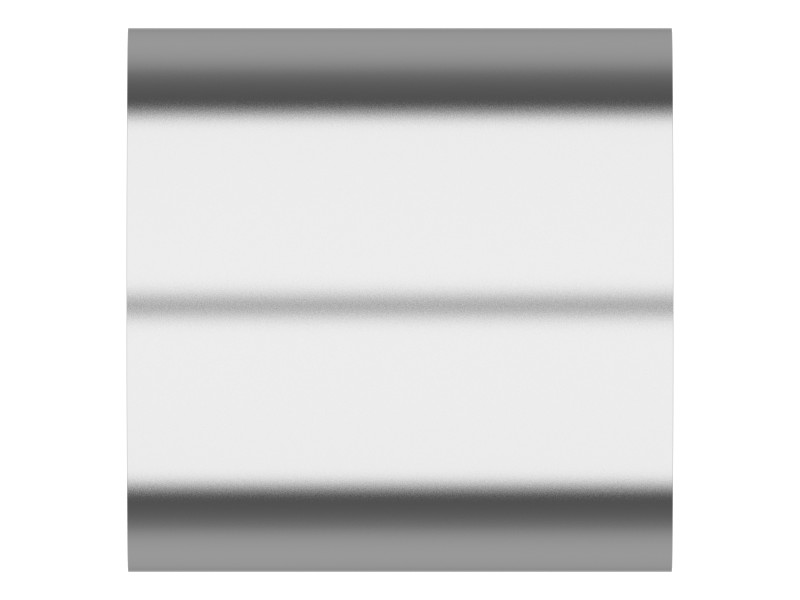

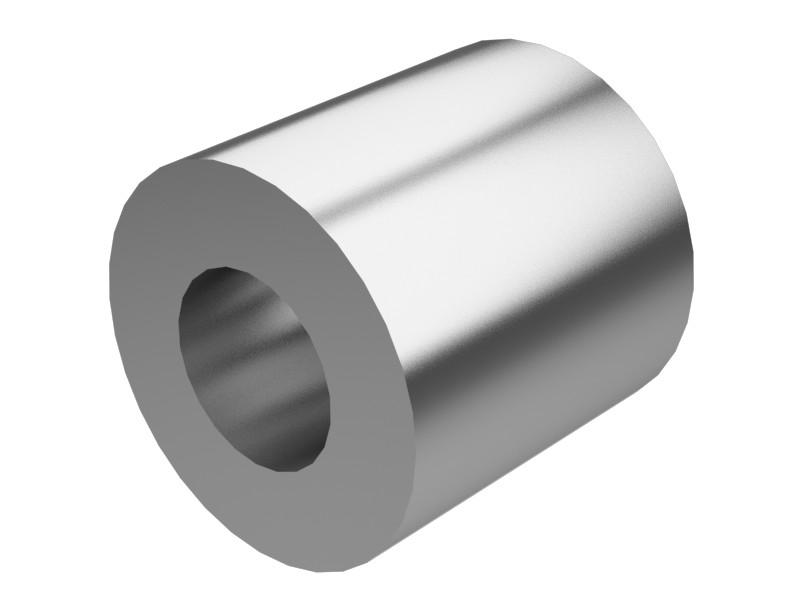

9N-4685 20 mm Thick Shim

Description

A shim is a thick ring made of metal, rubber, or plastic that is held under a nut or bolt head to spread pressure or provide equalization between two surfaces when tightened.

Features

Material: Steel
Outside Diameter: 20 mm (0.79 in)
Inside Diameter: 10 mm (0.39 in)
Thickness: 20 mm (0.79 in)

Applications

Refer to your Operation and Maintenance Manual or contact MECHSC for more information.

Specifications

Thickness	20 mm (0.79 in)
Outside Diameter	20 mm (0.79 in)
Inside Diameter	10 mm (0.39 in)
Coating	Oil with Corrosion Inhibitor
Gasket Type	Flat

Compatible Equipment

Generator Sets: C9
Track Loaders: 826K, 990K, 973K
Cold Planers: PL72, PM622, PL87, PM620, PL83
Compactors: 824K, 834K, 825K, C9.3B
Engines: C15, C32, C27, C18
Excavators: 390F L, 374F, 374, 336E H, 336F L, 336E, 336E L, 336E LN, 336E LH, 336F, 336F LN, 336F L XE, 637K, 390F, 6040, 6030, 374F L, 395
Asphalt Pavers: AD45, AD63
Motor Graders: 16H
Wheel Excavators: MD6200
Dozers: D6R II, D9T, D6R XL, D6T LGP, D7E, D6T, D6R III, D6R LGP, D8T, D7R, D6R, D9, D8
Wheel Loaders: 966K, 972L, 966L, 988K, RM500B, 910, R2900 XE, 836, 834
Off-Highway Trucks: 770G, 793F, 725C2, 793D, 745C, 745, 740B, 777, 785D, 740 GC, 777D, 772G, 740, 725, 793, 785

Machine Model	16H, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 374, 374F, 374F L, 390F, 390F L, 395, 6030, 6040, 637K, 725, 725C2, 740, 740 GC, 740B, 745, 745C, 770G, 772G, 777, 777D, 785, 785D, 793, 793D, 793F, 824K, 825K, 826K, 834, 834K, 836, 910, 966K, 966L, 972L, 973K, 988K, 990K, AD45, AD63, C15, C18, C27, C32, C9, C9.3B, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7E, D7R, D8, D8T, D9, D9T, MD6200, PL72, PL83, PL87, PM620, PM622, R2900 XE, RM500B
Equipment Type	Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets
Part Source	Genuine OEM

Machine Model

16H, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 374, 374F, 374F L, 390F, 390F L, 395, 6030, 6040, 637K, 725, 725C2, 740, 740 GC, 740B, 745, 745C, 770G, 772G, 777, 777D, 785, 785D, 793, 793D, 793F, 824K, 825K, 826K, 834, 834K, 836, 910, 966K, 966L, 972L, 973K, 988K, 990K, AD45, AD63, C15, C18, C27, C32, C9, C9.3B, D6R, D6R II, D6R III, D6R LGP, D6R XL, D6T, D6T LGP, D7E, D7R, D8, D8T, D9, D9T, MD6200, PL72, PL83, PL87, PM620, PM622, R2900 XE, RM500B

Equipment Type

Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets

Part Source

Genuine OEM
