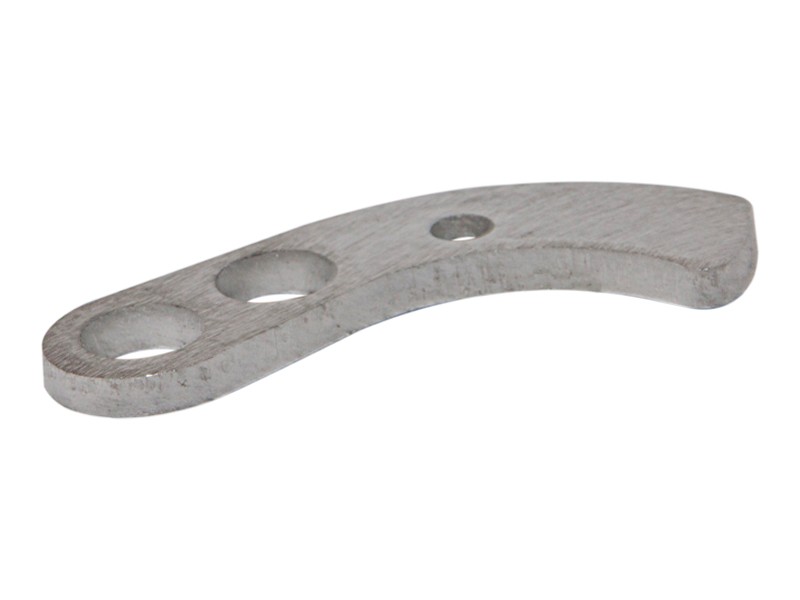

9M-7394 4.78 mm Thick Cover Lever
Cat® 4.78 mm thick aluminum cover lever used in oil filler openings.
Description
The lever is used to lock the filler cap for protection.
Features
- Material: Aluminum
- Padlock Hole Diameter: 11.13 mm (0.438 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Aluminum |
|---|---|
| Material Description | Aluminum |
| Thickness | 4.78 mm (0.188 in) |
Compatible Equipment
- Motor Graders: 140 GC, 120, 140H, 12H, 160K, 140G, 120H, 140K, 16, 12K, 16H
- Track Loaders: 963, 982, 972, 992, 824C, 816F, 963K, 824G, 834H, 963D, 826G, 826H
- Cold Planers: PL72, PL87, PL83
- Wheel Excavators: MD6250, MD6310, MD6200
- Compactors: 814, 816, 815, 834K, CS-563E, CS-533C
- Dozers: D6R II, D6R LGP, D6R XL, D7G, D6N, D5N, D7, D8, D10R, D11R, D11T, D10T, D3K2 LGP, D7H, D5G, D6T LGP, D6T, D5K LGP, D7R II, D6R III, D6R, D5K2 XL, D8T, D7R, D8R, D5H, D8N, D9R, D5K XL, D5M, D9N, D6M, D8L, D4E, D9T, D3G, D4G, D7G2, D7E, D9, D10, D11, D9L, D11N, D10N, D10T2
- Excavators: 120 GC, 637G, 637E, 657G, 6015B, 621H, 621K, 3508B, 637K, 6015, 621G
- Wheel Loaders: 966 GC, 992K, 966M, 972M, 982M, 986K, 980M
- Off-Highway Trucks: 740, 789, 777, 730, 770G, 773D, 725, 771D, 793F, 785D, 789D, 777E, 777D, 775G, 745C, 772G, 785, 793D, 735, 773, 745, 740B, 797F, 773E, 725C2, 773F, 740 GC, 793
- Asphalt Pavers: AD45, AP-600D, AP300F, AP355F
- Skid Steer Loaders: 24
