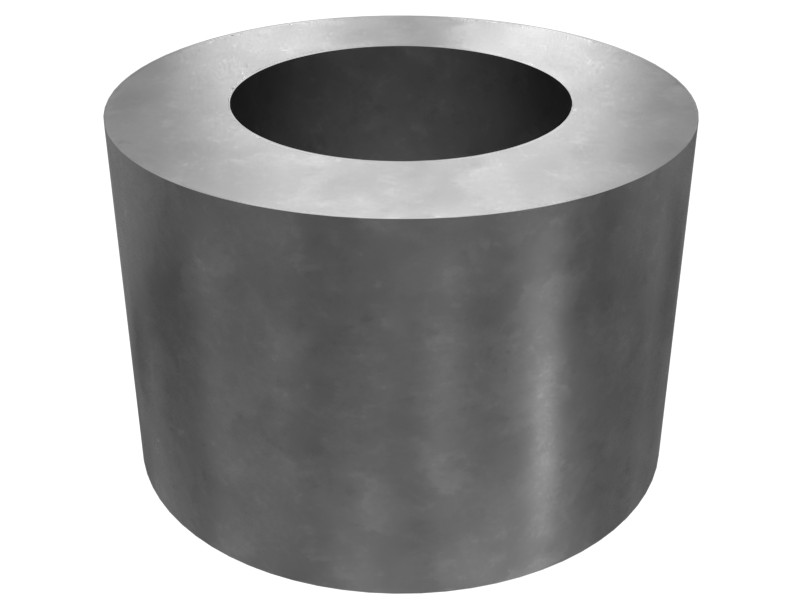

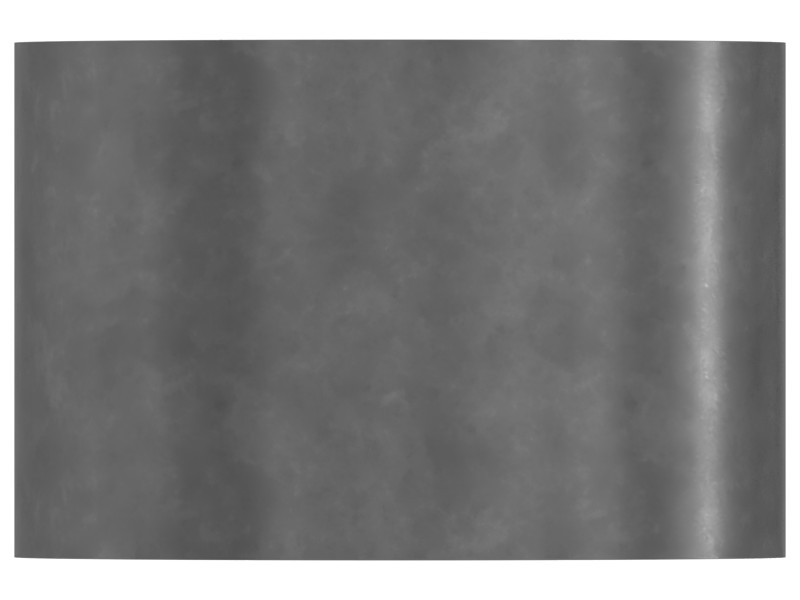

9M-4136 12.7 mm Thick Wiring Harness Gasket
Cat® wiring harness spacer organizes wires and prevents tangling in heavy-duty machine electrical systems, improving reliability and performance.
Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating washers and nuts to produce consistent, high clamping force. You can rely on Cat fasteners to help you build, maintain or rebuild – for most machine and shop applications around the world.
Specifications
| Inside Diameter | 11.12 mm (0.438 in) |
|---|---|
| Outside Diameter | 19.1 mm (0.75 in) |
| Thickness | 12.7 mm (0.5 in) |
| Fits Bolt Size | M10 mm (3/8 in) |
| Material | Carbon Steel |
| Gasket Type | Flat Washer |
Compatible Equipment
- Generator Sets: G3516C, 3406B, 3406C, 3516C, C7.1
- Motor Graders: 16, 3606
- Engines: C27, C32, C15, C6.6, C18, C175-16
- Compactors: C-15, C-9
- Dozers: D10T, D11R, D10N, D11T, D11, D9R, D7G, D7R, D7H, D5M, D9L, D8L, D7E, D8N, D9N, D6M, D10, D10R, D6T
- Excavators: 637G, 637E, 3516B, 3516E, 3456
- Wheel Loaders: R2900 XE, 834, 966H, 950, 972H, R1700G, R2900G, R3000H, 980, R1300G, 988F, R1700 II, R1600H
- Off-Highway Trucks: 793D, 771D, 777, 793F, 797F, 796 AC, 793, 794 AC
- Asphalt Pavers: AD45, AD30, AD63
- Skid Steer Loaders: 24
Additional information
| Machine Model | 16, 24, 3406B, 3406C, 3456, 3516B, 3516C, 3516E, 3606, 637E, 637G, 771D, 777, 793, 793D, 793F, 794 AC, 796 AC, 797F, 834, 950, 966H, 972H, 980, 988F, AD30, AD45, AD63, C-15, C-9, C15, C175-16, C18, C27, C32, C6.6, C7.1, D10, D10N, D10R, D10T, D11, D11R, D11T, D5M, D6M, D6T, D7E, D7G, D7H, D7R, D8L, D8N, D9L, D9N, D9R, G3516C, R1300G, R1600H, R1700 II, R1700G, R2900 XE, R2900G, R3000H |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
