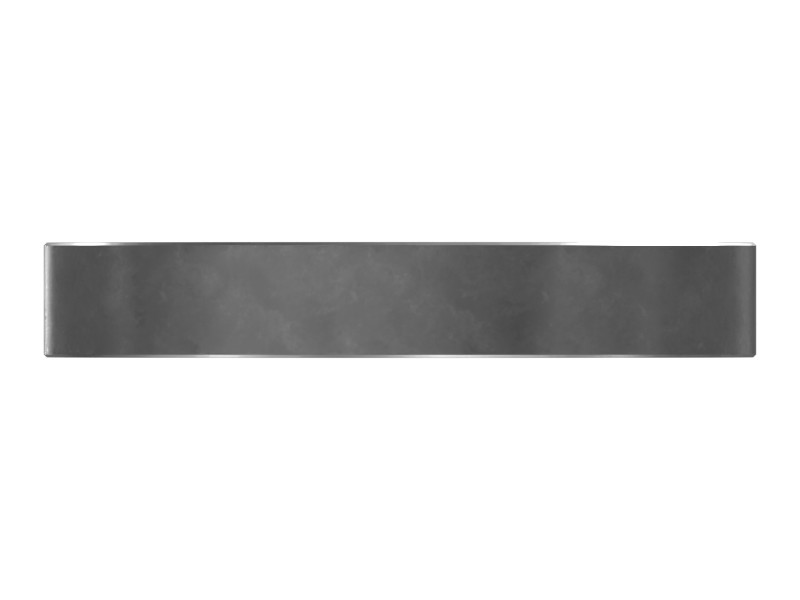

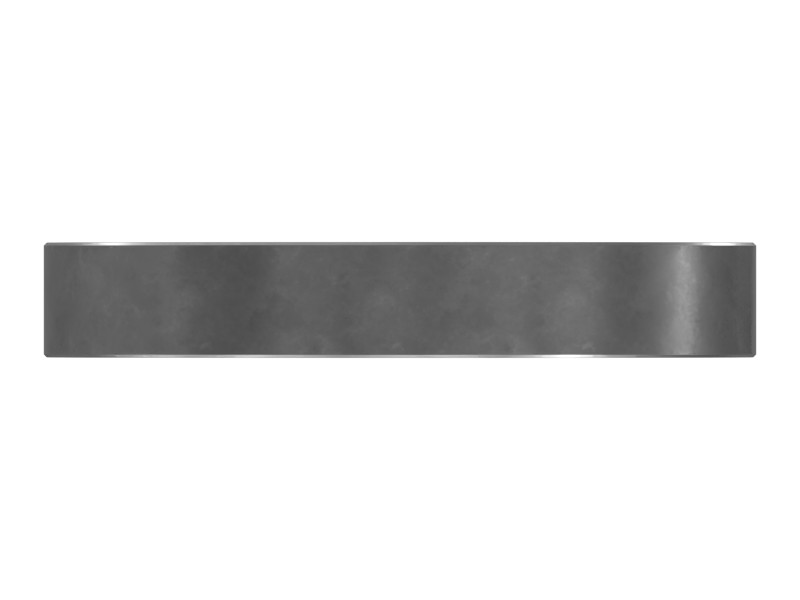

9M-2074 106-Tooth Ring Gear
Cat® torque converter ring gear is a component in automatic transmissions that links engine torque to the transmission input for smooth power transfer
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
Gear used in the final drive planetary gear set.
Features
- Material: Steel
- Spur Gear Teeth: 106
- Number of Internal Spline Teeth: 106
- Outside Diameter: 376.2 mm (14.811 in)
- Inside Diameter: 338.83 mm (13.339 in)
- Height: 60.4 mm (2.377 in)
- Cat® final drive gears are designed to maximize system performance and extend balanced system life. Cat final drive gears are produced through metallurgy, heat treatment, tooth profile, and surface finishing processes that maximize the life of mating gears and ensure the final drive maintains optimal performance
Applications
Cat gears are built for specific applications to ensure that all power train parts work together as a system and wear together. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Low Alloy Steel |
|---|---|
| Material Description | Steel |
| Number of Teeth | 106 |
| Outside Diameter | 376.2 mm (14.811 in) |
| Inside Diameter | 338.83 mm (13.339 in) |
| Height | 60.4 mm (2.377 in) |
Compatible Equipment
- Dozers: D10N, D10R, D10, D10T2, D10T, D9N, D9R, D9L, D8L
- Wheel Loaders: 834
