Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

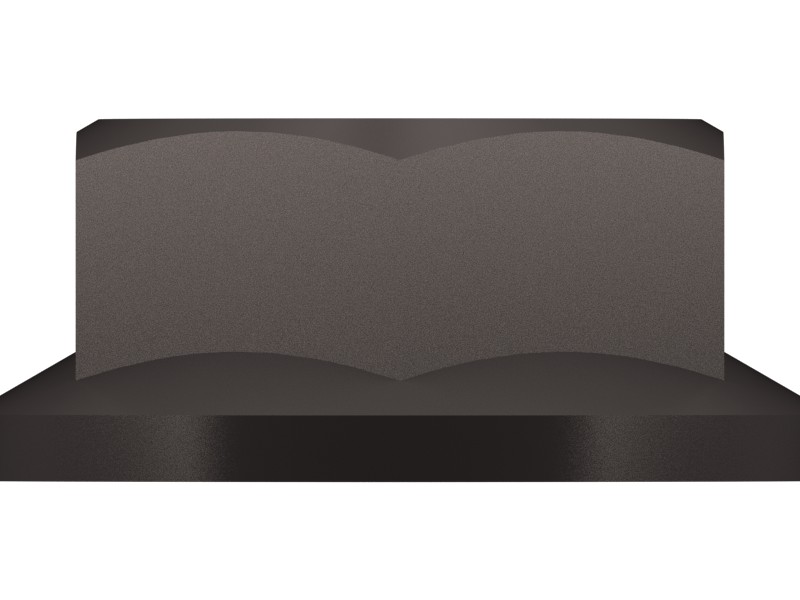

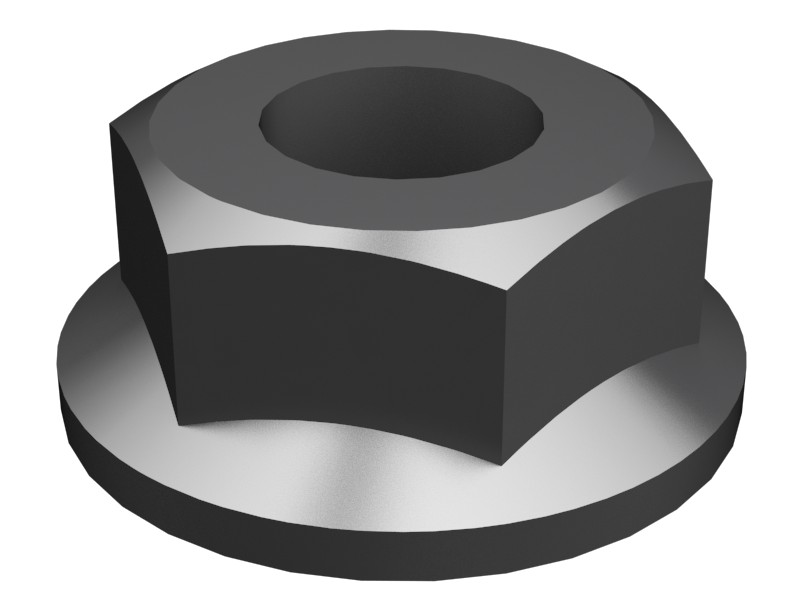

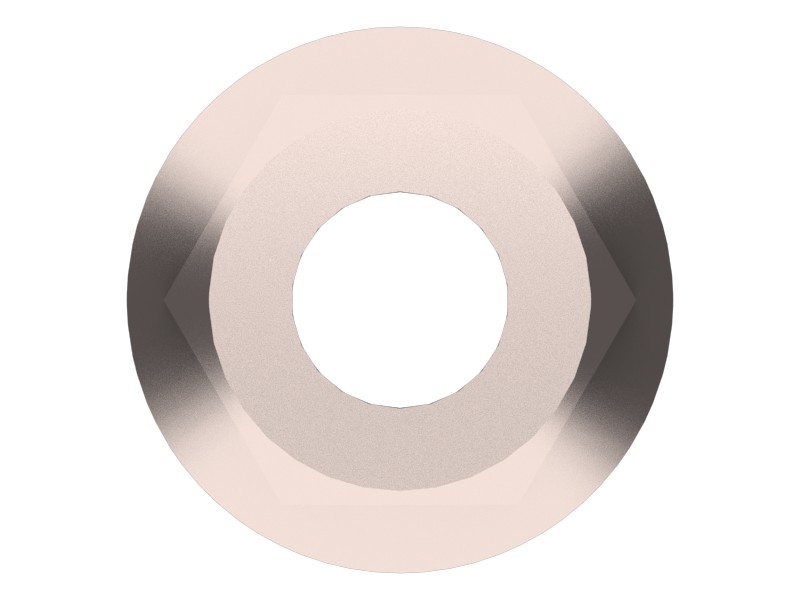

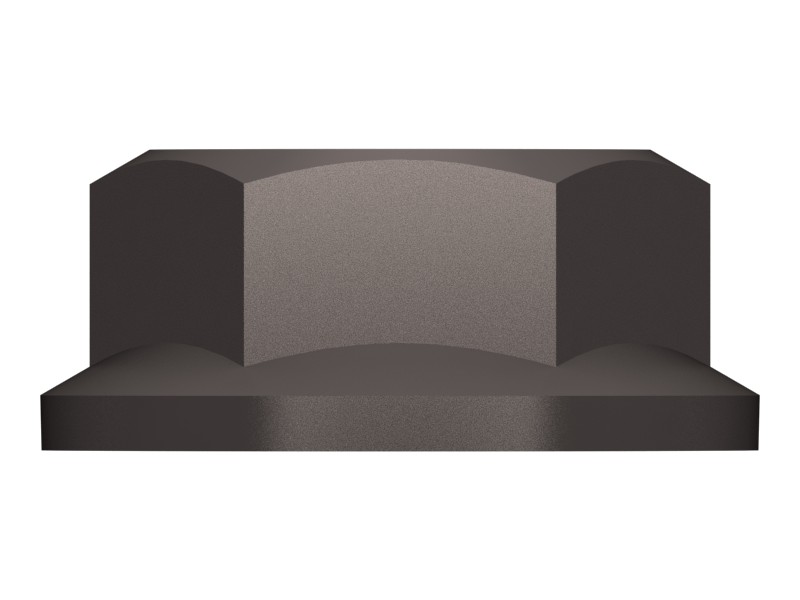

These nuts are bearing locknuts that can be tightened with an adjustable wrench.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Coating | Zinc Plated With Topcoat Sealer, 3.8 Micron Minimum Thickness |
|---|---|
| Material Description | SAE Grade 8 Equivalent |
| Flange Diameter | 17.065625 mm |
| Hole Thread Pitch | 18 |
| Thread Size | .312 mm (0.012 in) |
| Drive Chain | 12.7 mm (0.5 in) |
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | 5/16×18 mm |
| Class or Grade | SAE J995 Grade 8 |
| Thickness | 7.14375 mm (0.28 in) |
| Nut Model | Hex Flange |
| Thread Size (in – TPI) | 1/3-18 in |
Compatible Equipment
- Motor Graders: 140 GC, 140G, 120H, 12K, 140K, 12H, 160K, 120, 140H, 3606
- Generator Sets: 3406B, 3406C, G3516, G3516C, 3512B
- Track Loaders: 953, 824G, 826G, 963, 824C
- Compactors: CS-533C
- Dozers: D8R, D5H, D9T, D4E, D7H, D8N, D7G, D6G2 XL, D7G2, D6G2 LGP, D6G, D9R
- Excavators: 3516B, 120 GC
- Wheel Loaders: 986K
- Off-Highway Trucks: 740, 770G, 745, 772G, 740 GC, 745C
Additional information
| Machine Model | 120, 120 GC, 120H, 12H, 12K, 140 GC, 140G, 140H, 140K, 160K, 3406B, 3406C, 3512B, 3516B, 3606, 740, 740 GC, 745, 745C, 770G, 772G, 824C, 824G, 826G, 953, 963, 986K, CS-533C, D4E, D5H, D6G, D6G2 LGP, D6G2 XL, D7G, D7G2, D7H, D8N, D8R, D9R, D9T, G3516, G3516C |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Generator Sets |
| Part Source | Genuine OEM |
