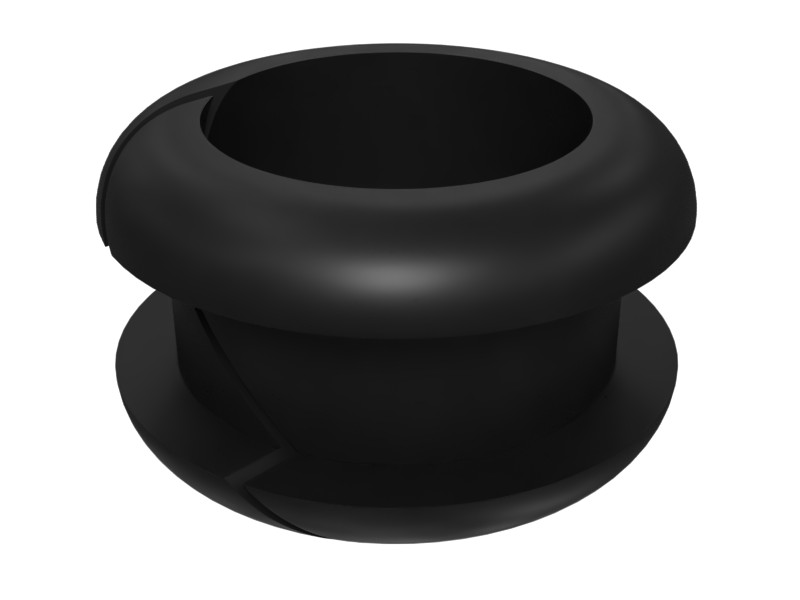

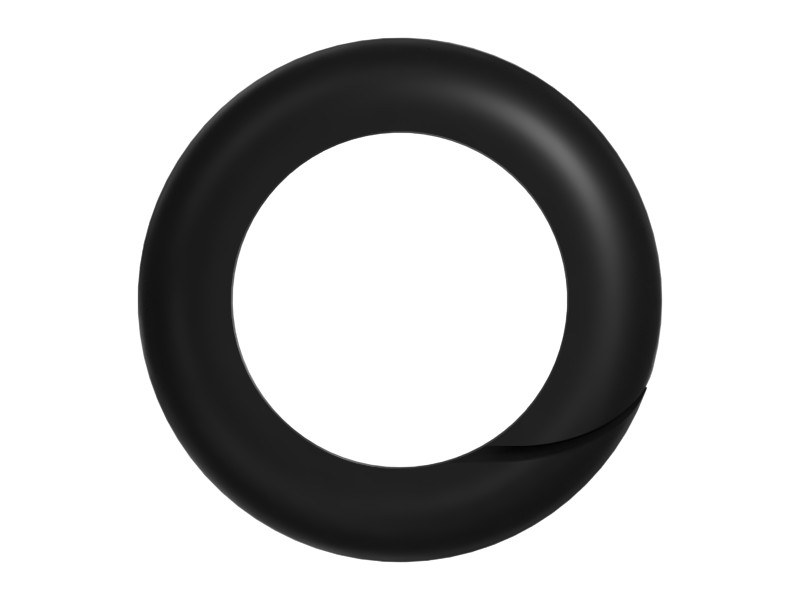

9K-0700 28.58 mm ID Flange Rubber Grommet
Cat® Flanged Rubber Grommet with Longitudinal Cut for Securing Wires and Lines
Description
Cat® grommets are made of high-quality rubber suited to the equipment's environment. They keep wires and cables from contacting metal, protect these components from damage (vibration), and prevent rubbing against surrounding structures (vibration, shock, noise).
The grommet has a rubber tab placed evenly on both sides of the material to hold the rubber in place.
Specifications
| Type | Split |
|---|---|
| Material | Chloroprene (CR) Rubber |
| Inside Diameter | 28.58 mm (1.13 in) |
| Outside Diameter | 44.45 mm (1.75 in) |
| Overall Length | 25.4 mm (1.00 in) |
Compatible Equipment
- Generator Sets: C7.1, 3512B
- Track Loaders: 995, 826G
- Compactors: CS74B, CS12, CS12 GC, CP12 GC, CS78B, CP11 GC, CB-564D, CB-534D, CP56B, CS68B, CS56B, CS11, CS-54B
- Excavators: 330, 329D2 L, 336D2, 326D2, 320D, 349D2, 349D2 L, 329D, 326D2 L, 336D, 307E, 313 GC, 374, 313, 349F L, 340, 350, 315, 355, 352, 315 GC, 330 GC, 333, 320 GC, 345D L, 323, 320D L, 350MHPU, 323D, 328D LCR, 336E L, 336 GC, 329D L, 336D2 L, 336D L, 320, 324D L, 329E L, 336F L, 336, 323D L, 330D2, 336E LH, 335F LCR, 323D2, 324D, 320D FM, 336F, 325, 336F L XE, 312D L, 312D, 336E H, 335, 345 GC, 323D2 L, 314D CR, 325B L, 336E, 3101, 349D L, 352F, 349E L, 349, 349E L VG, 350 L, 349E, 395, 326, 326 GC, 333 GC, 323 GC, 345D, 312D2, 315D L, 336E LN, 323GC, 313F L, 330D2 L, 312E L, 330GC, 320E, 329E, 314D LCR, 312E, 320D RR, 312F, 330D, 326GC, 336F LN
- Motor Graders: 16M, 140G, 316F, 349 GC
- Wheel Excavators: MD6200
- Dozers: D10R, D7G, D3G, D5G, D11T, D10T2, D10T, D11, D11N, D4G
- Mini Excavators: 307, 307D, 307C, 307B
- Wheel Loaders: 836, 966H, 972H, 966F, 988K, 950H, 980G, 990H, 992C, 992D
- Off-Highway Trucks: 7495, 773F, 793F
