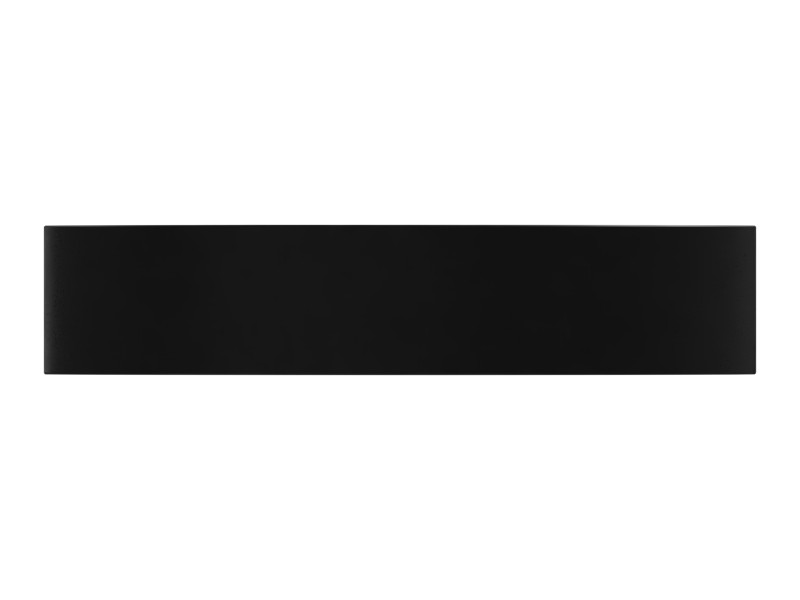

9J-5037 196.85 mm OD Plastic Piston Guide

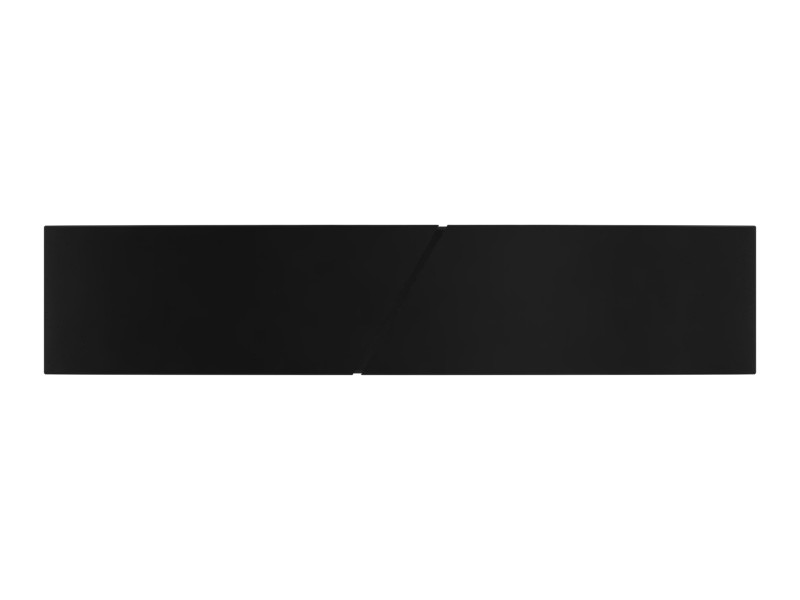

Cat® piston guide with scarf-cut profile for hydraulic ripper tilt cylinders and bucket cylinders.
Description
Cat wear rings guide the hydraulic piston or rod to maintain alignment and prevent metal-to-metal contact, reducing wear and distributing pressure evenly across the seals.
Applications
Used as needed for servicing hydraulic cylinder components to ensure leak-free equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Mixed Plastic Plastic |
|---|---|
| Outside Diameter | 196.85 mm (7.75 in) |
| Width – A (+/- 0.762 mm) | 41.27 mm |
| Inside Diameter – B (+/- 0.08 in) | 190.27 mm (7.49 in) |
| Width – A (+/- 0.03 in) | 1.62 in |
Compatible Equipment
- Track Loaders: 995, 994K
- Dozers: D11R, D11, D11T, D11N
- Wheel Loaders: 966H, 972H
