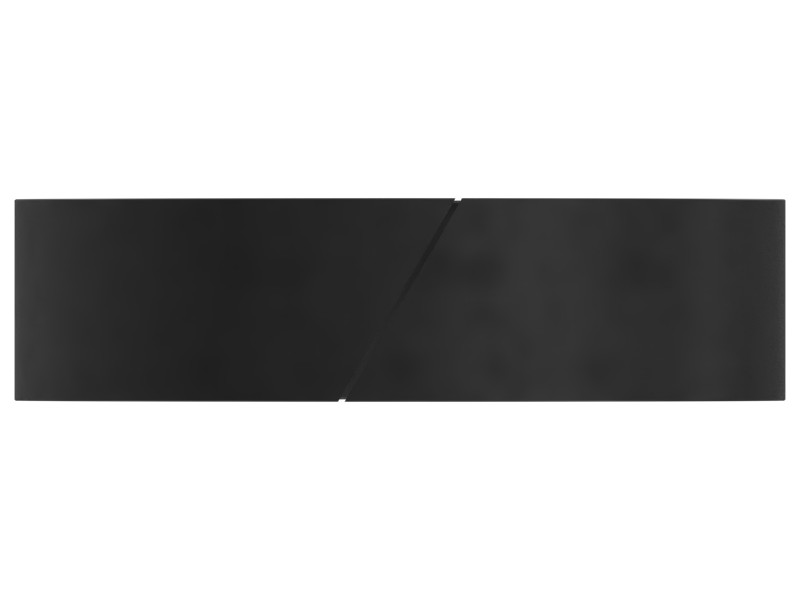

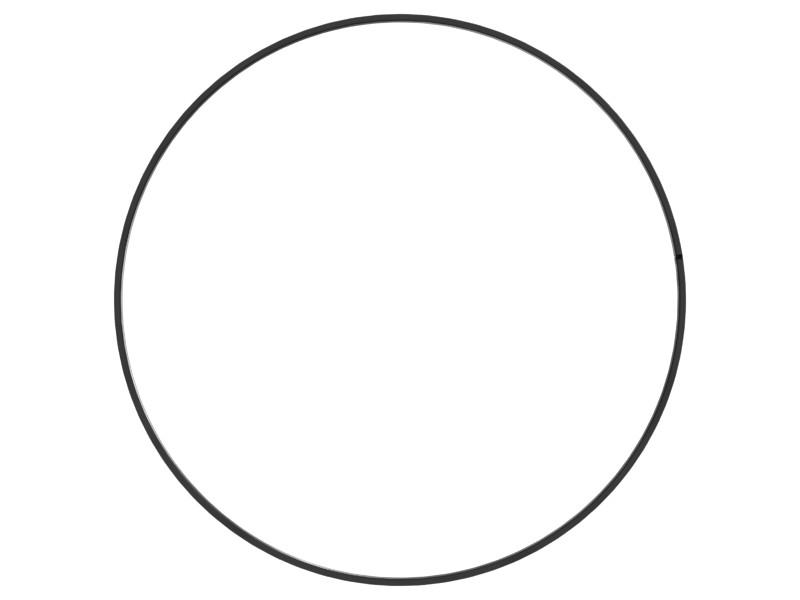

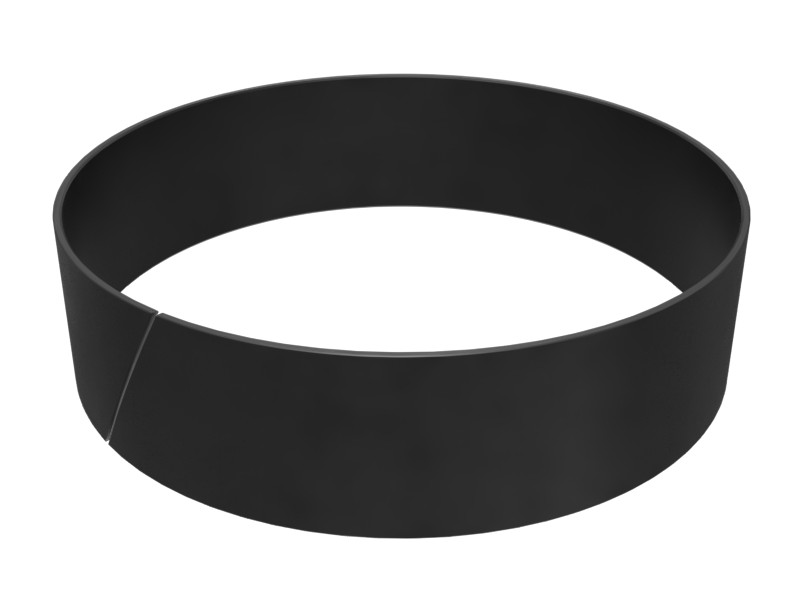

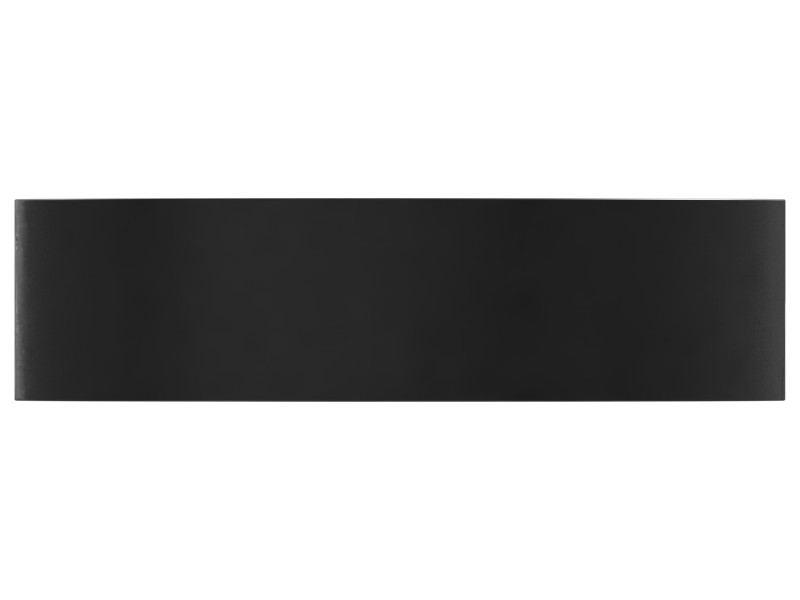

9J-1159 266.7 mm Bore Piston Guide
Cat® plastic wear ring piston guide for tilt cylinders.
Description
Cat wear rings guide the hydraulic piston or rod to maintain alignment and prevent metal-to-metal contact, reducing wear and distributing pressure evenly across the seals.
Applications
Used as needed for servicing hydraulic cylinder components to ensure leak-free equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Width – A (+/- 0.03 in) | 2.75 in |
|---|---|
| Outside Diameter | 266.70 mm (10.50 in) |
| Width – A (+/- 0.762 mm) | 69.85 mm |
| Inside Diameter – B (+/- 0.08 in) | 260.12 mm (10.24 in) |
| Material | Mixed Plastic Plastic |
Compatible Equipment
- Dozers: D11T, D11R, D10, D11N
- Wheel Loaders: R2900G
