Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Locking Feature | None |
|---|---|
| Thread Size (Diameter × Pitch) | 1/2×13 mm |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Thread Direction | RH |
| Thread Size | 0.500 mm (0.02 in) |
| Bolt Length | 158.75 mm (6 1/4 in) |

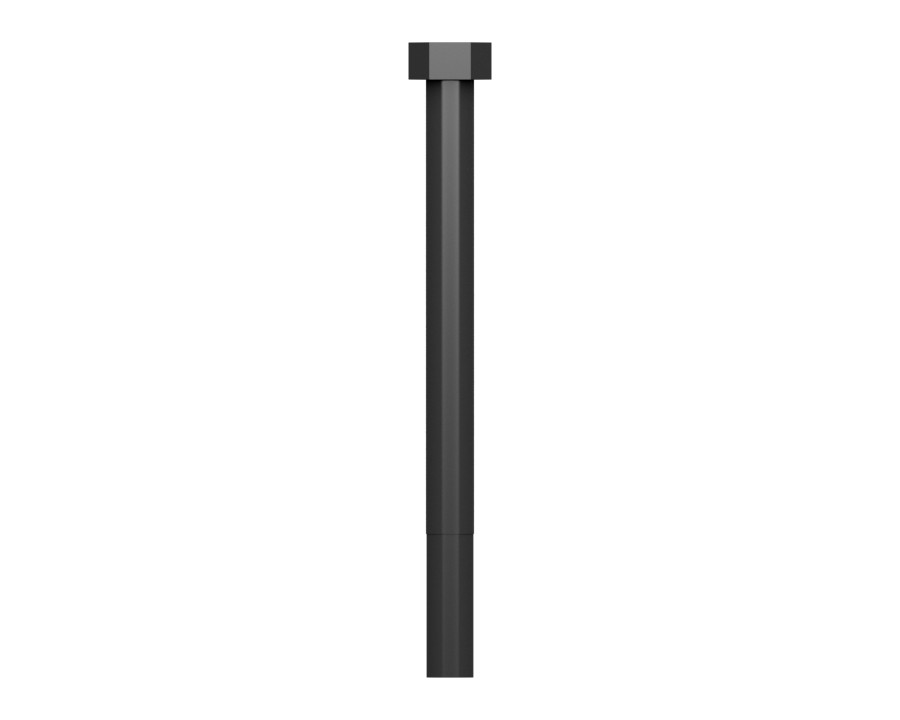

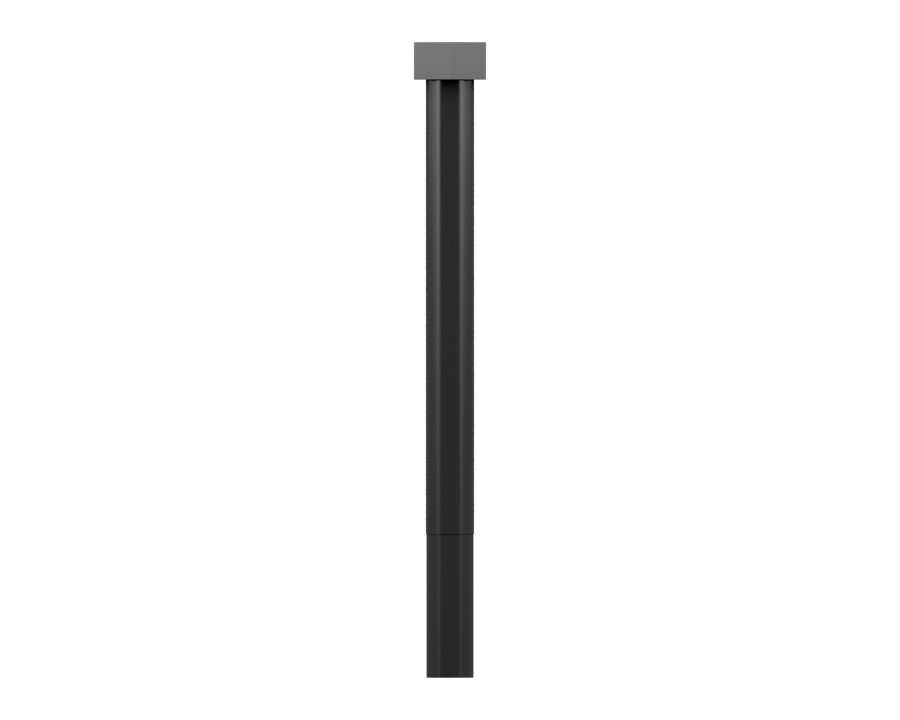

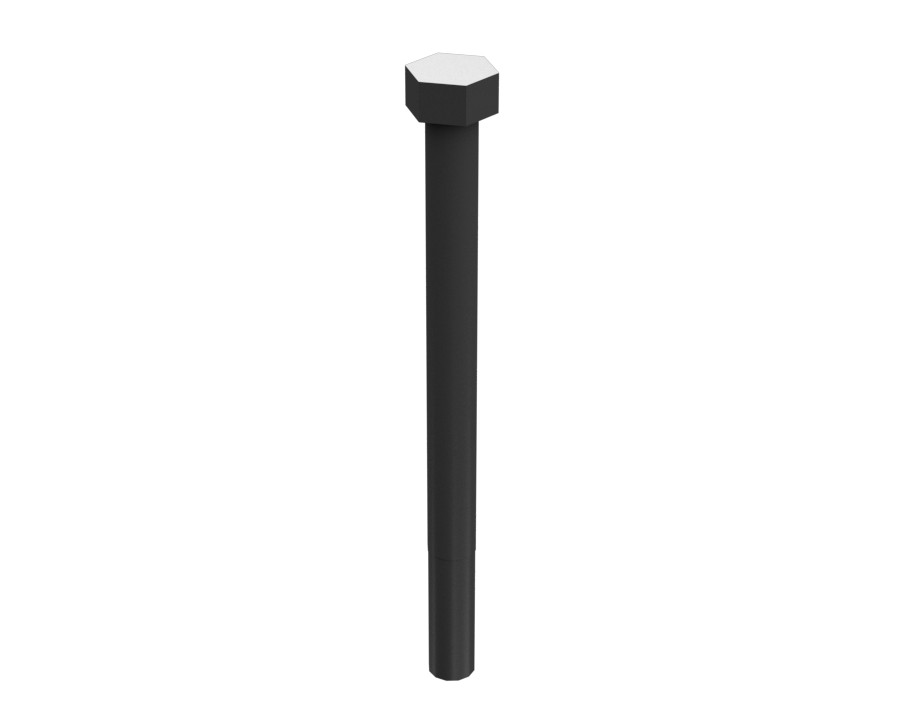

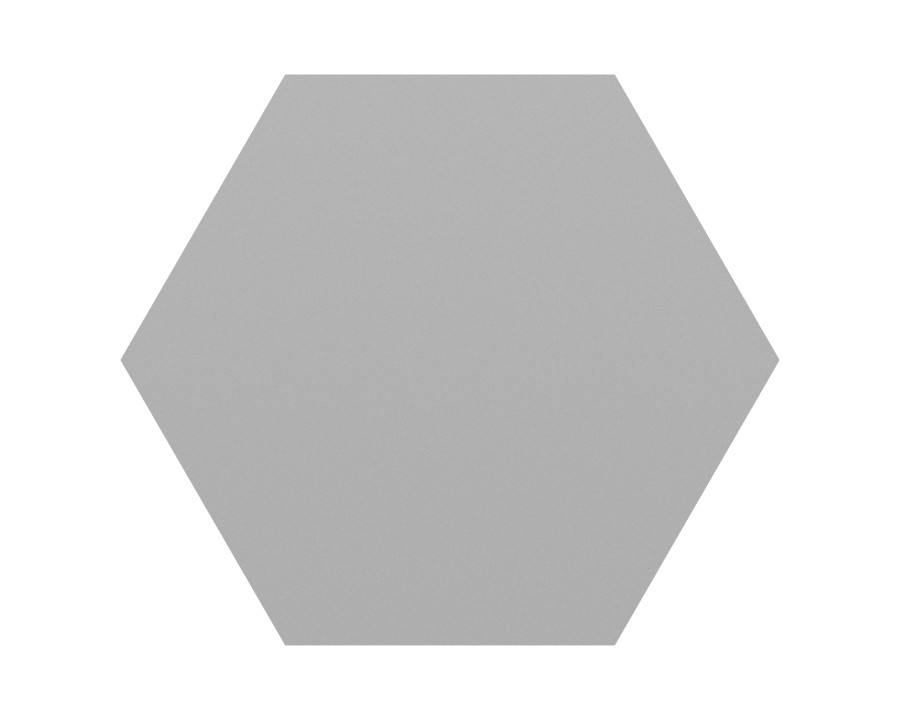

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 120.65 mm (4.75 in) |
| Material | Steel |
Compatible Equipment
- Generator Sets: 3516C, 3512E, 3512B, 3406C, C9, G3516, G3516C, 3406B, C4.4
- Motor Graders: 16, 140G, 120
- Track Loaders: 963, 824C, 992
- Compactors: 816, 815, 814, C-15
- Engines: C13, C15, C11, C32, C18
- Dozers: D11N, D11R, D10, D7H, D7G, D5H, D8N, D4E, D10N, D9L, D9N
- Excavators: 3516B, 3508B, 3512C, 385B, 3516E, 365B, 365C L, 385C FS, 345B, 385C, 385C L, 365C, 390D, 365B L, 6060, 350 L, 390D L, 3456, 374D L
- Wheel Loaders: 834, 980, R1700G, 950, R1700 II, R1600H
- Off-Highway Trucks: 773, 777D, 785, 777, 789, 789D, 793D, 785D, 793
Additional information
| Machine Model | 120, 140G, 16, 3406B, 3406C, 3456, 345B, 350 L, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 365B, 365B L, 365C, 365C L, 374D L, 385B, 385C, 385C FS, 385C L, 390D, 390D L, 6060, 773, 777, 777D, 785, 785D, 789, 789D, 793, 793D, 814, 815, 816, 824C, 834, 950, 963, 980, 992, C-15, C11, C13, C15, C18, C32, C4.4, C9, D10, D10N, D11N, D11R, D4E, D5H, D7G, D7H, D8N, D9L, D9N, G3516, G3516C, R1600H, R1700 II, R1700G |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
