Description
Cat® flange connectors and flange clamps meet the highest standards of quality, reliability and durability. These flange components are manufactured to tight tolerances to ensure leak-free connections. Every Cat flange connector and flange clamp meets or exceeds industry standards for working pressure, cyclic loading and corrosion protection to ensure long-lasting, reliable machine operation.
Features
- Connection component for fluid-carrying tubes and hoses
- Meets or exceeds industry-standard part performance and provides a leak-free connection

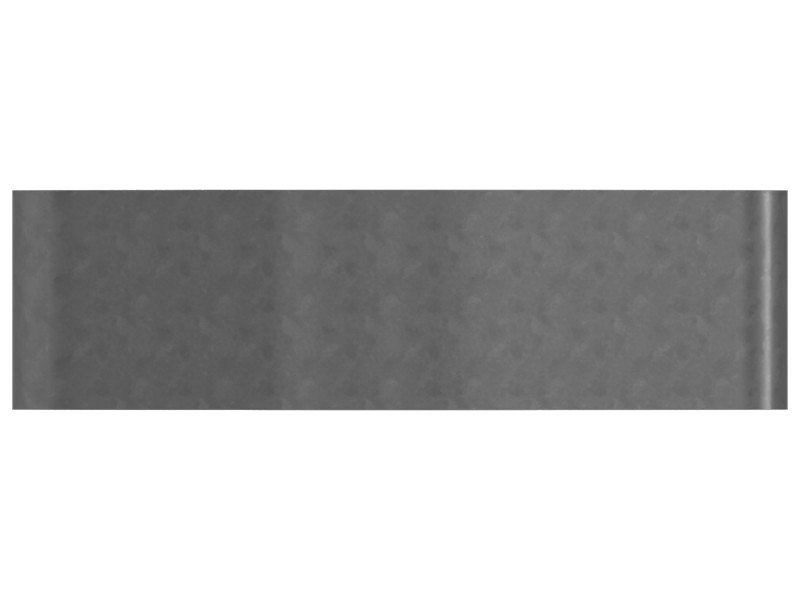

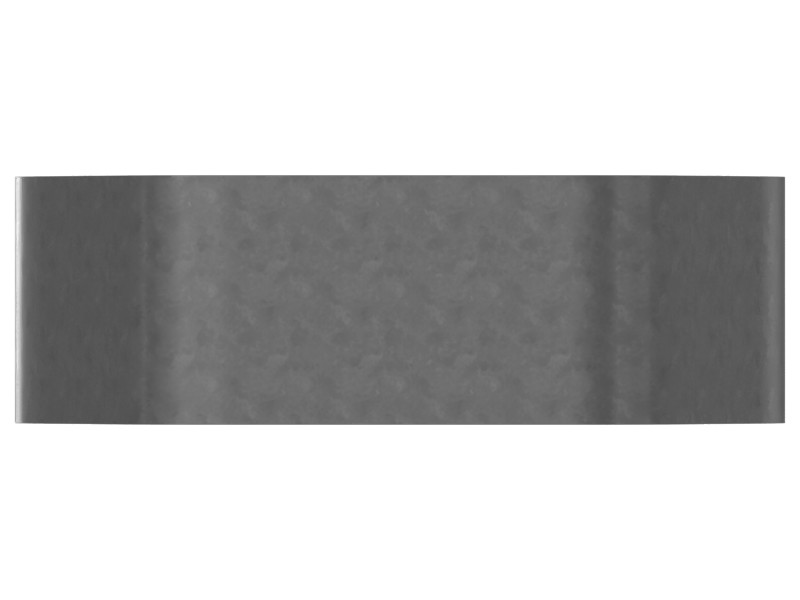

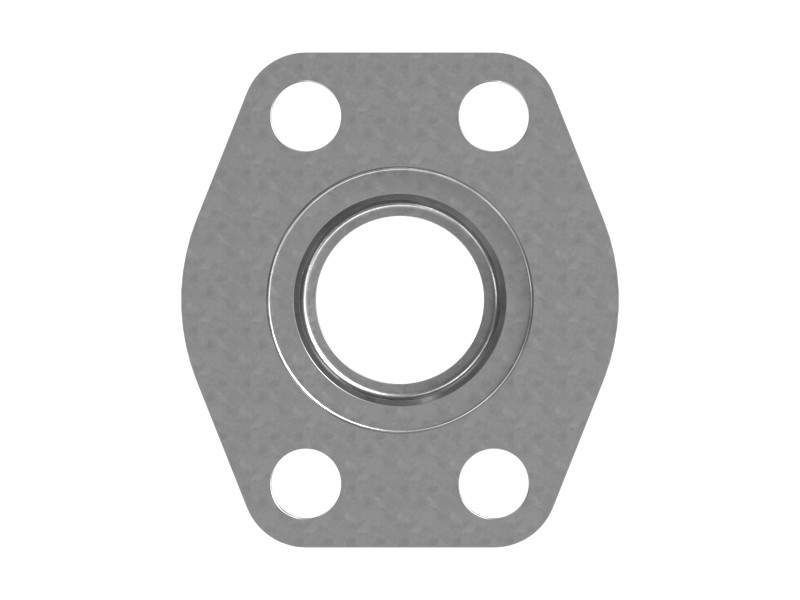

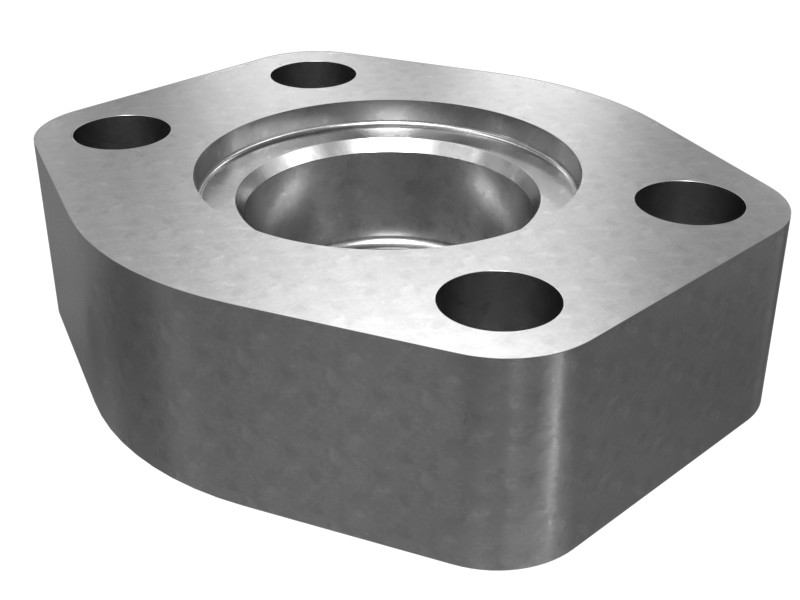

- Images provided are for reference only. Flange component construction may differ slightly from the image shown, but this part is interchangeable with the OEM part.
Applications
Flange connectors and flange clamps are used to connect fluid-carrying hoses and tubes to other system components. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Flange Type | One-Piece |
|---|---|
| Connector Type | 4-Bolt Flange |
| Material | Steel |
| Hole Size | 14 (4X) mm (0.53 (4X) in) |
| Length | 94 mm (3.69 in) |
| Width | 83 mm (3.27 in) |
| Flange Thickness | 27 mm (1.04 in) |
| Flange Hole Spacing | 36; 70 mm (1.41; 2.75 in) |
Compatible Equipment
- Generator Sets: C4.4
- Dozers: D10R
- Excavators: 3516E
- Off-Highway Trucks: 789, 785, 773E, 772G, 770G, 777D, 793, 777E, 789D, 785D, 771D, 793F, 740, 773F, 773D, 740B, 775G, 735, 793D, 773
- Asphalt Pavers: AD63
