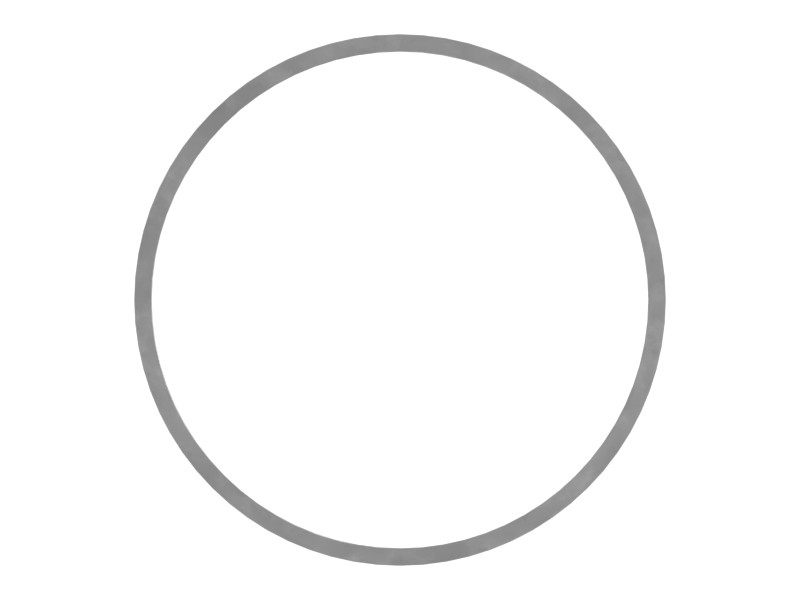

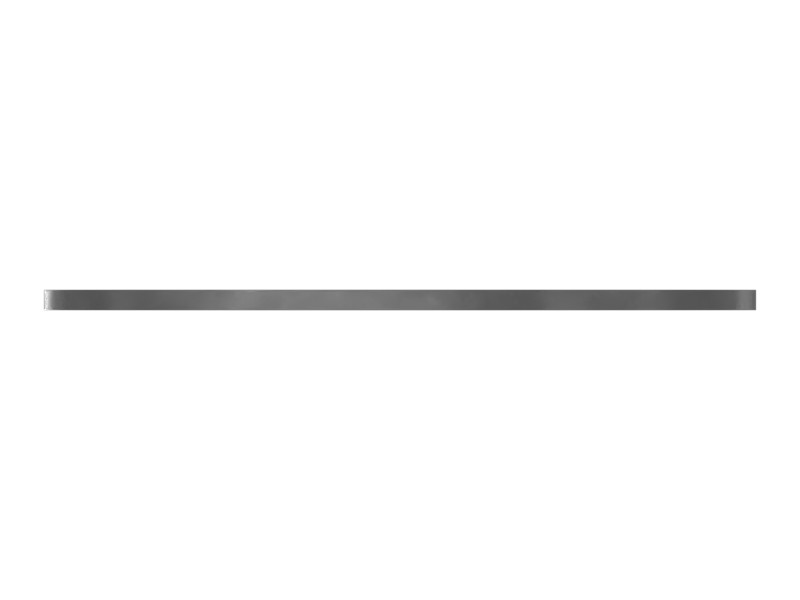

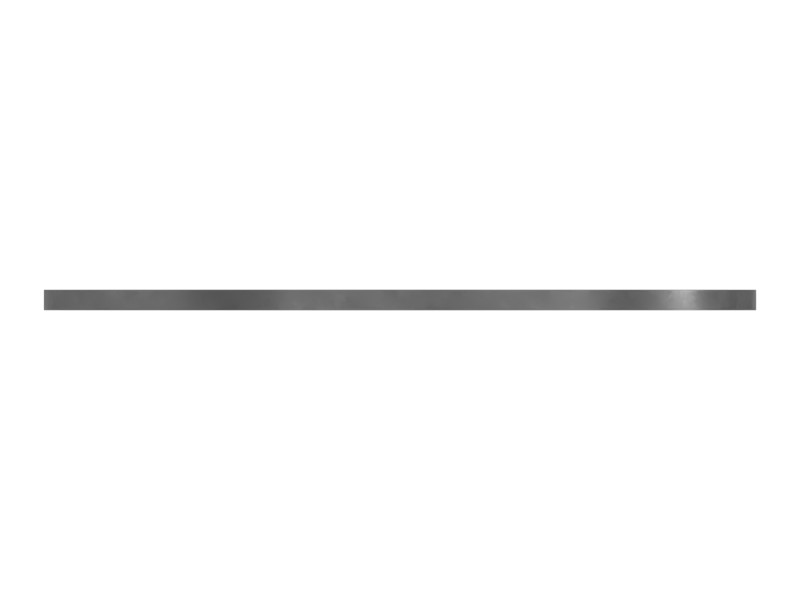

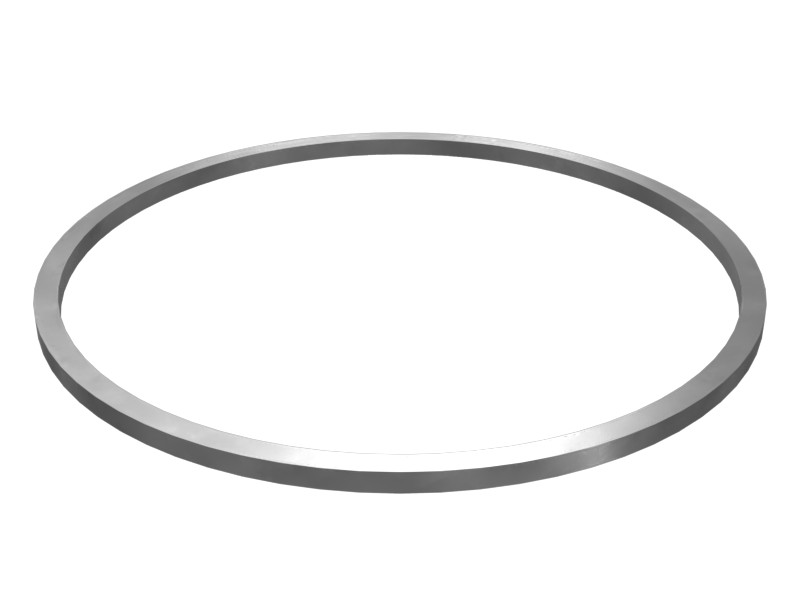

9F-8477 104.13 mm ID Metal Seal Ring
Cat® 113.13 mm OD Metal Retaining Ring for Flange Connections Between Tubes
Description
Cat transmission service parts are used to replace metal seal rings when repairing or rebuilding planetary gear assemblies. Quality suited to your equipment's requirements, meeting your expectations. Each end of the metal seal ring has a rectangular hook; when the seal ring is fitted into the groove, these hooks overlap and interlock.
Features
- Cast iron seal ring with rectangular hook
- Outside Diameter: 111.13 mm (4.375 in)
- Width: 3.137 mm (0.1235 in)
- Thickness: 3.5 mm (0.1377 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Gray (Flake) Iron |
|---|---|
| Material Description | Cast Iron |
| Outside Diameter | 111.13 mm (4.375 in) |
| Width | 3.137 mm (0.1235 in) |
| Thickness | 3.5 mm (0.1377 in) |
Compatible Equipment
- Motor Graders: 14, 18, 16M, 16M3, 16, 14M, 16H
- Generator Sets: C4.4, 3512B
- Dozers: D4E
- Excavators: 3512C
- Off-Highway Trucks: 777E, 777, 777D, 730, 735, 725, 740, 745, 740 GC
