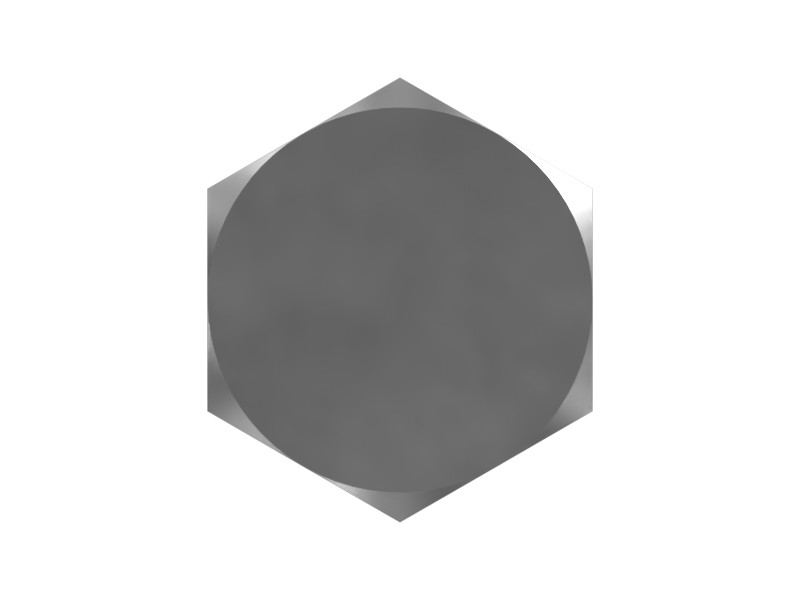

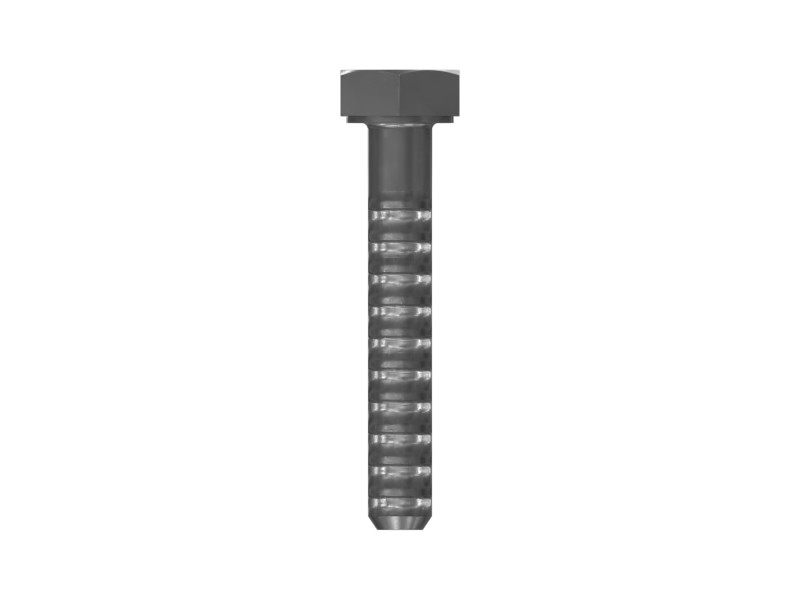

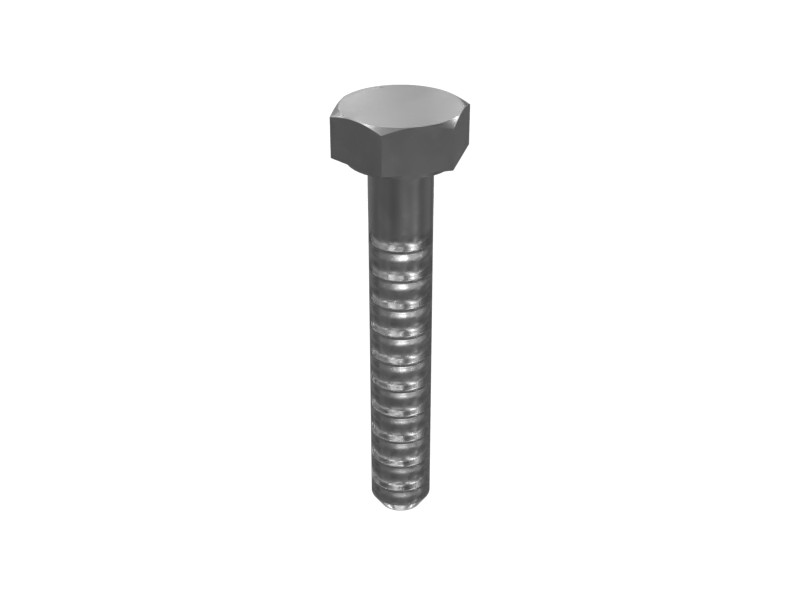

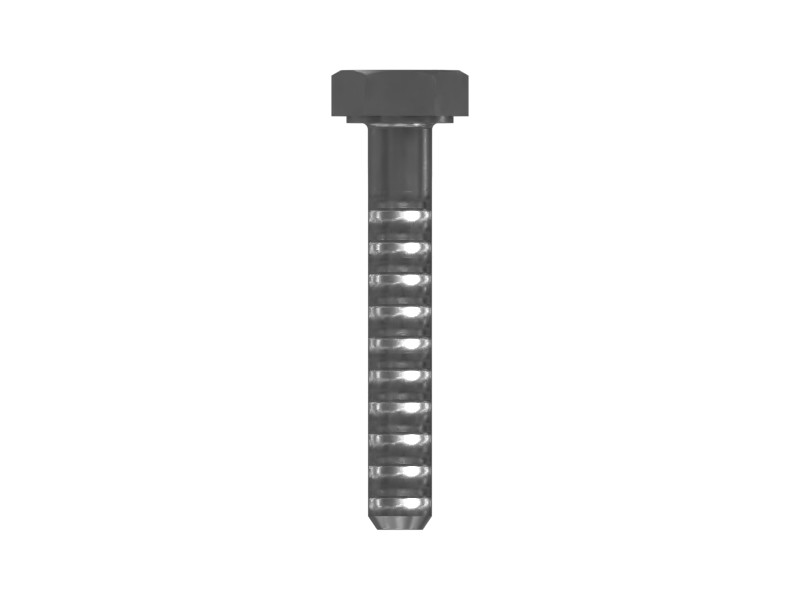

9F-7022 38.10 mm Shank Length External Hex Bolt
Cat® 1/4-20" External Threaded Shank External Bolt
Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Thread Size (Diameter × Pitch) | 1/4×20 mm |
|---|---|
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Locking Feature | None |
| Thread Direction | RH |
| Thread Size | 0.250 mm (0.01 in) |
| Bolt Length | 38.1 mm (1 1/2 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Phosphate and Oil |
| Handle Length | 6.35 mm (0.25 in) |
| Material | Carbon Steel |
Compatible Equipment
- Motor Graders: 16, 140G, 120, 3606
- Generator Sets: 3406B, 3406C, G3516C, G3516, 3512B, 3516C
- Track Loaders: 992, 963, 824C
- Compactors: 815, 814, 816
- Engines: C32, C27, C15, C18
- Dozers: D10, D11N, D6M, D7H, D9R, D7G, D5M
- Excavators: 3516B, 637E, 3512C, 3508B, 3456
- Wheel Loaders: 992C, 966H, 938M, 988H, 980, 950, 834, 910, R3000H
- Off-Highway Trucks: 773, 777
Additional information
| Machine Model | 120, 140G, 16, 3406B, 3406C, 3456, 3508B, 3512B, 3512C, 3516B, 3516C, 3606, 637E, 773, 777, 814, 815, 816, 824C, 834, 910, 938M, 950, 963, 966H, 980, 988H, 992, 992C, C15, C18, C27, C32, D10, D11N, D5M, D6M, D7G, D7H, D9R, G3516, G3516C, R3000H |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Engines, Generator Sets |
| Part Source | Genuine OEM |
