Description

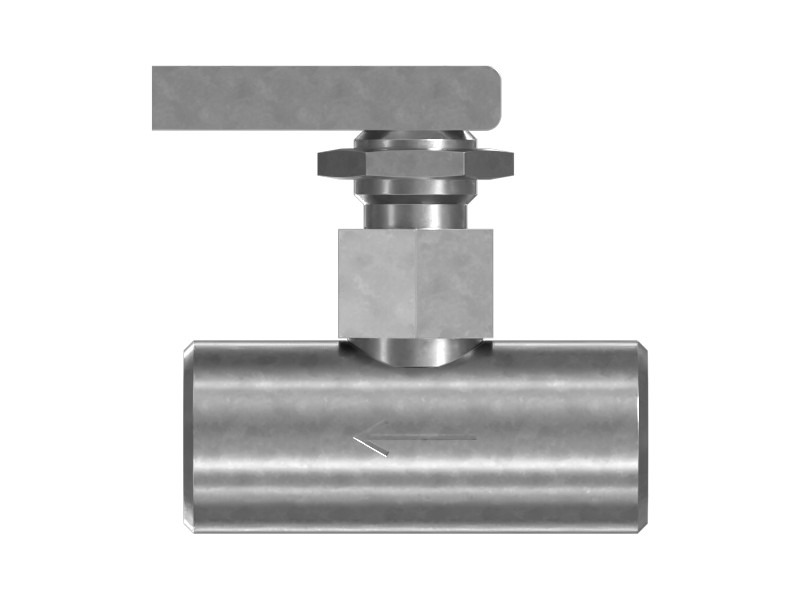

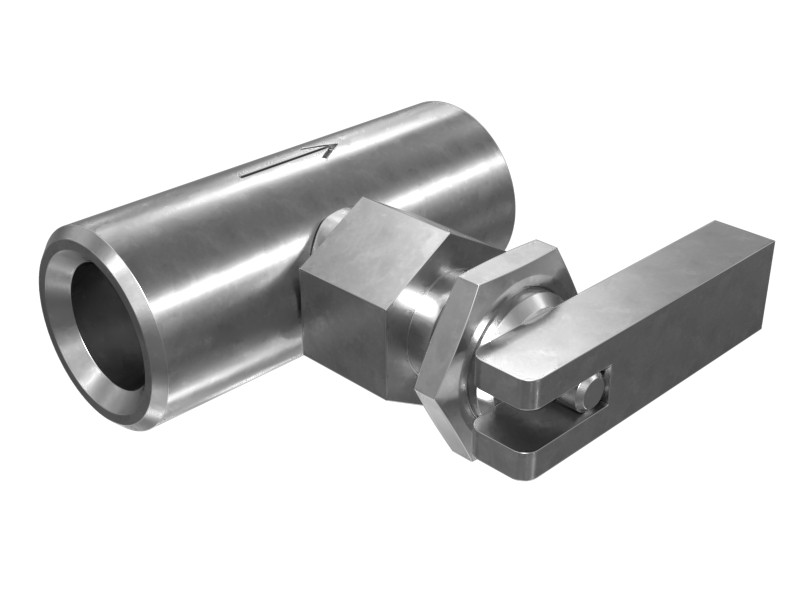

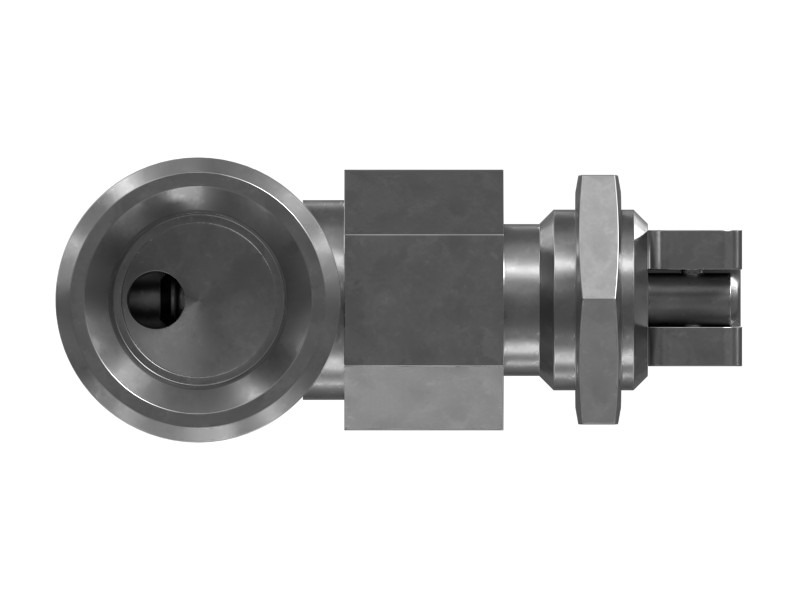

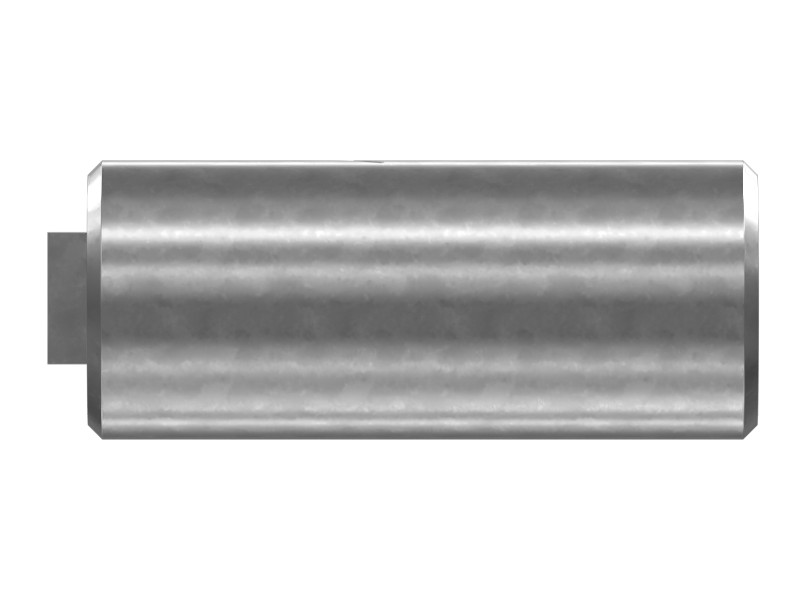

When the handle is turned a quarter turn, the valve allows fluid flow to be shut off manually.
Features
- Material: Brass
- Thread Size: 1/4-18 NPTF (2X)
- Maximum Working Pressure: 1380 kPa (200 psi)
- Temperature Range: -40° to 110° C (-40° to 230° F)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Alloy Copper |
|---|---|
| Material Description | Brass |
| Length | 48 mm (1.86 in) |
| Width | 77 (Open); 48 (Closed) mm (3.04 (Open); 1.89 (Closed) in) |
| Hex Size | 17 mm (0.69 in) |
| Thread Size | 1/4-18 (2X) in |
Compatible Equipment
- Motor Graders: 160K, 140 GC, 12K, 140K, 140H, 12H, 120H, 140G
- Excavators: 657G, 637E, 637G, 621G
- Off-Highway Trucks: 777, 785, 777D, 789, 793
