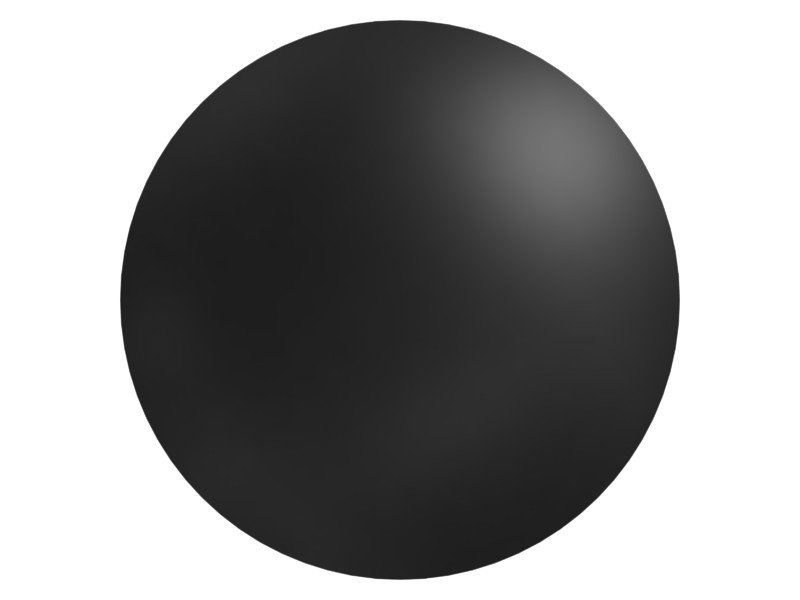

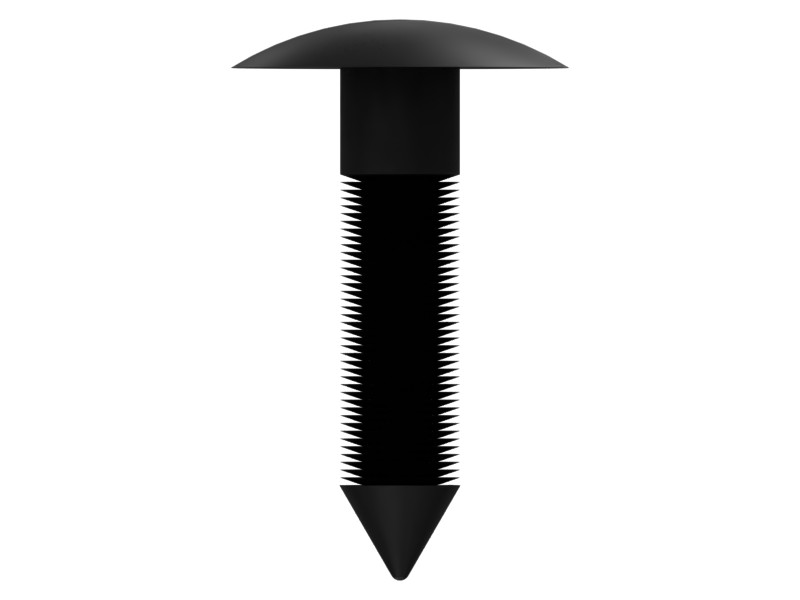

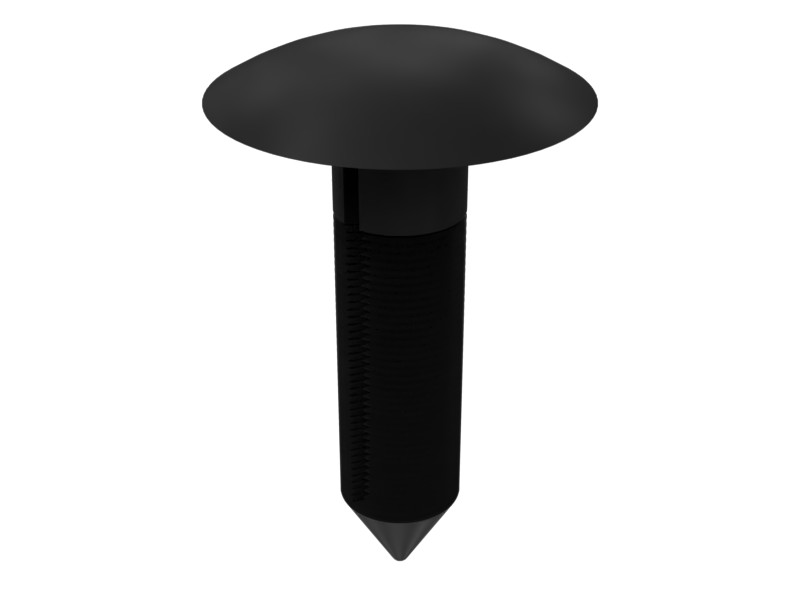

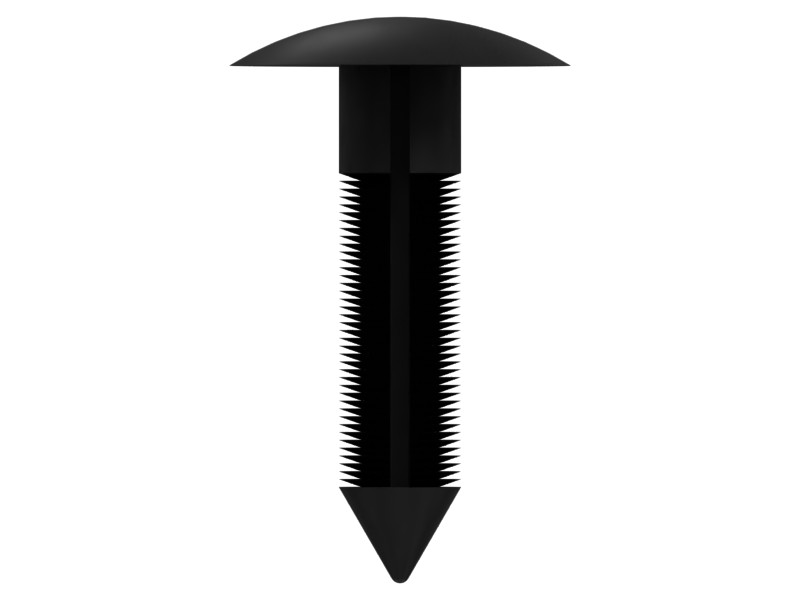

8Y-5947 Ratchet Clip Fastener
Cat®, 26.92 mm Long Operator Seat, Suspension Seat, Fabric Extension
Description
Fastener, Description:
The Cat® fir tree clip is used to fasten two panels together or to secure a component firmly to a panel. This type of fastener is easy to install and requires a hole matched to the panel thickness and size.
Features
- Material: Plastic
- Push-In
Type • Hole Size: 6.4 mm (0.25 in)
- Panel Thickness: 3-20 mm (0.12-0.79 in)
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | Plastic |
|---|---|
| Head Diameter | 17.76 mm (0.70 in) |
| Head Height | 2.54 (Reference) mm (0.1 (Reference) in) |
| Length | 26.92 (Reference) mm (1.06 (Reference) in) |
Compatible Equipment
- Motor Graders: 12H, 120H, 140H, 16H
- Track Loaders: 963, 826G, 953, 824C, 824G, 816F
- Wheel Excavators: IT14G
- Compact Track Loaders: 299D3, 279D3
- Dozers: D6R, D9N, D7R, D5M, D7H, D8N, D8R, D10N, D10R, D11R, D11N, D6M, D5H, D9R
- Mini Excavators: 307E2
- Wheel Loaders: 972G, 962G, 966F, 980G, 924GZ, 950G, 836, 928G, 924HZ, 988F, 992D, 928HZ
- Off-Highway Trucks: 771D, 773D, 777D
- Skid Steer Loaders: 246C, 246D, 262D3, 236D, 232D3, 232D, 289D3, 262D, 259D3, 299D3 XE, 236D3, 246D3, 226D3, 239D3, 272D3, 272D3 XE, 249D3, 242D3, 236B3, 216B3, 279C, 262C
Additional information
| Machine Model | 120H, 12H, 140H, 16H, 216B3, 226D3, 232D, 232D3, 236B3, 236D, 236D3, 239D3, 242D3, 246C, 246D, 246D3, 249D3, 259D3, 262C, 262D, 262D3, 272D3, 272D3 XE, 279C, 279D3, 289D3, 299D3, 299D3 XE, 307E2, 771D, 773D, 777D, 816F, 824C, 824G, 826G, 836, 924GZ, 924HZ, 928G, 928HZ, 950G, 953, 962G, 963, 966F, 972G, 980G, 988F, 992D, D10N, D10R, D11N, D11R, D5H, D5M, D6M, D6R, D7H, D7R, D8N, D8R, D9N, D9R, IT14G |
|---|---|
| Equipment Type | Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Compact Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks |
| Part Source | Genuine OEM |
