Description
Cat powertrain components must withstand extremely high torque, high shock loads, and frequent direction changes and shifts. Cat designs and manufactures transmission and final drive components with these demands in mind, ultimately improving powertrain durability and performance over the life of the machine. Cat planetary shafts are designed to control the speed, direction, and force transmitted while Cat machines operate.
Features

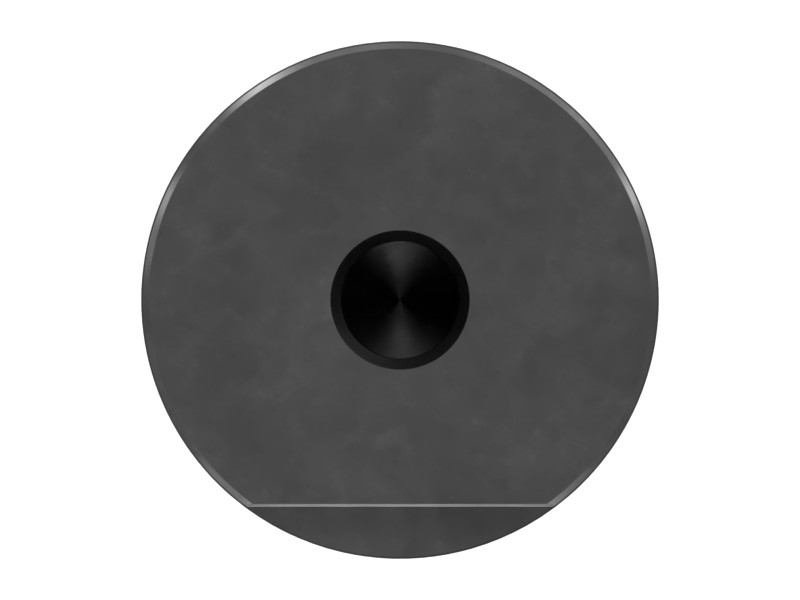

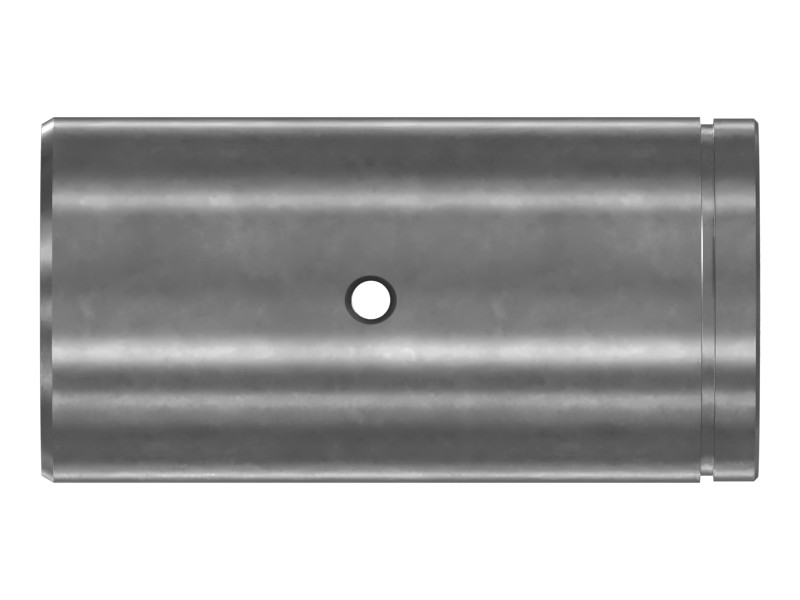

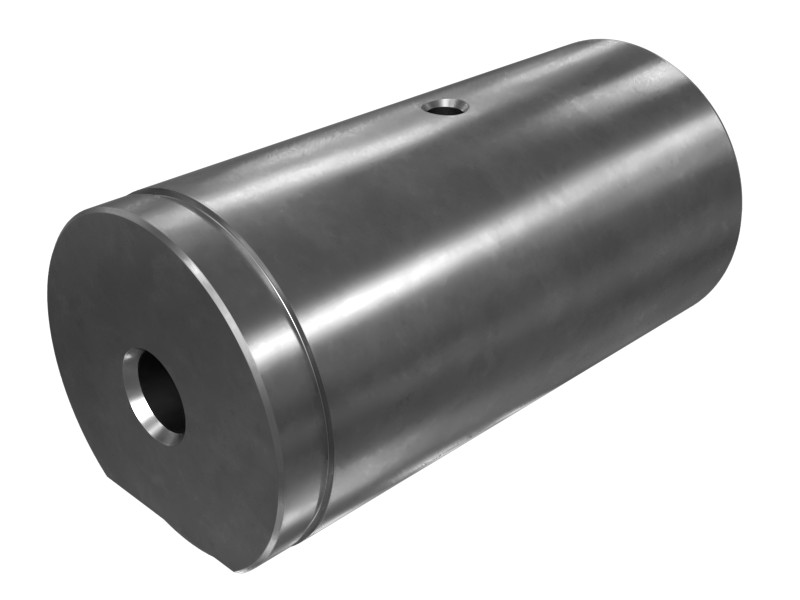

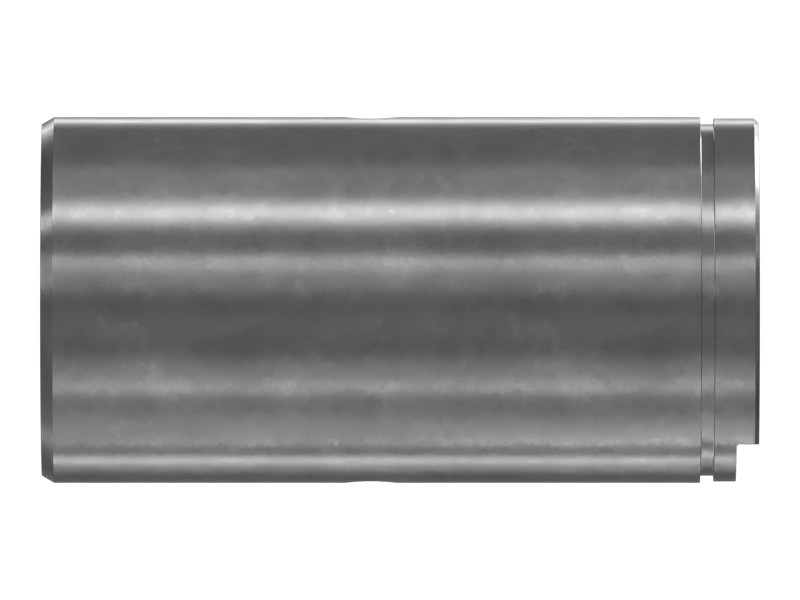

- Hardened steel planetary shaft
- Outside Diameter: 89.225 mm (3.512 in)
- Length: 174.8 mm (6.881 in)
- Chamfered end
Applications
Service part for the final drive assembly. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material Description | Steel |
|---|---|
| Approximate Weight | 8.20 kg (18.08 lb) |
| Outside Diameter | 89.22 mm (3.51 in) |
| Overall Length | 174.8 mm (6.881 in) |
Compatible Equipment
- Dozers: D10R
- Off-Highway Trucks: 773E, 773D, 773F, 773
