Description

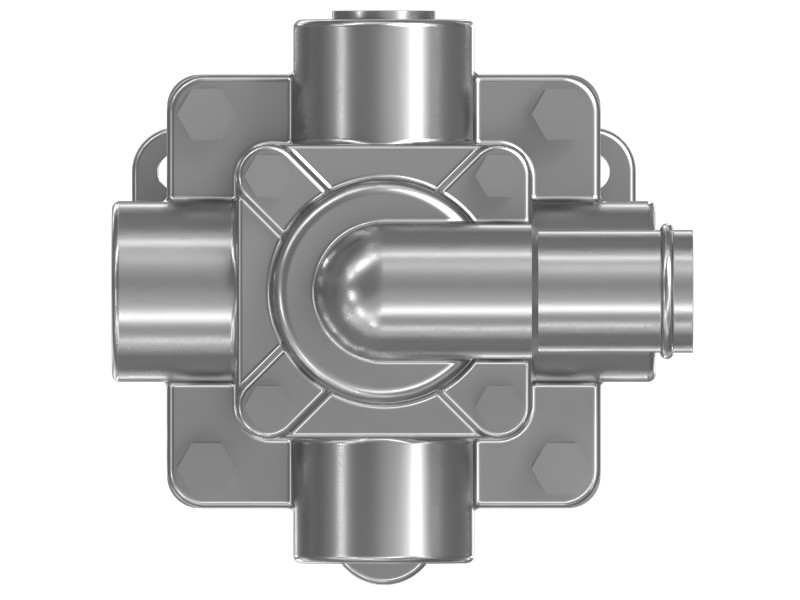

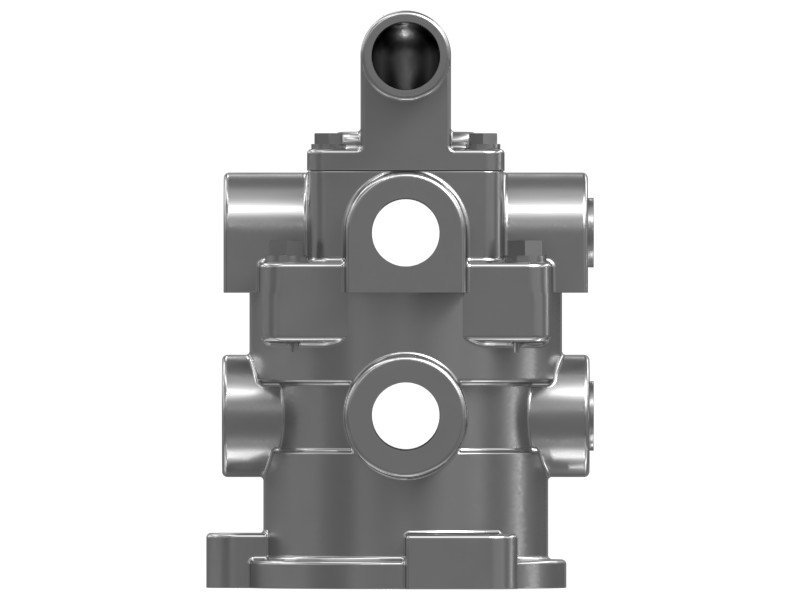

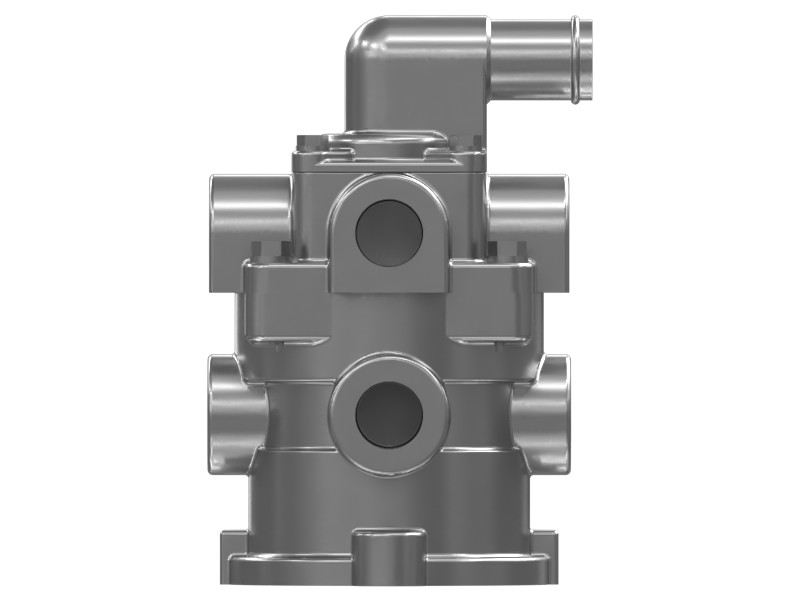

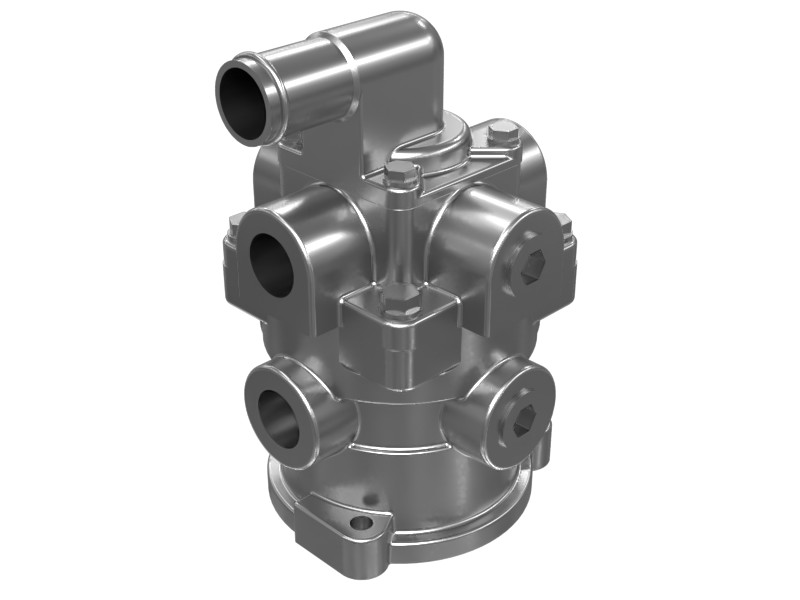

The Cat brake control valve group is mechanically operated by the action of a pedal and plunger to apply the brakes on heavy equipment.
Features
- Dual brake valve
- Intake Port Size: 3/8-18
- Exhaust Port Size: 3/8-18
- Floor mount
- Media: Air
- Mounts with 5/16 fasteners
Applications
Used to repair control valves in brake systems of heavy-duty equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Length | 134.5 mm (5.3 in) |
|---|---|
| Width | 90.5 mm (3.56 in) |
| Height | 85 mm (3.34 in) |
Compatible Equipment
- Motor Graders: 120H, 140K, 12H, 140H, 12K, 160K, 16H
