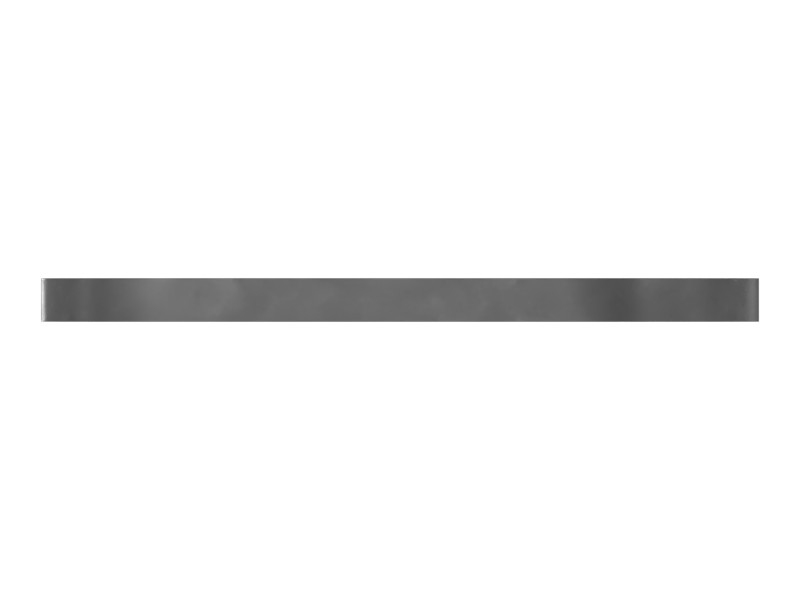

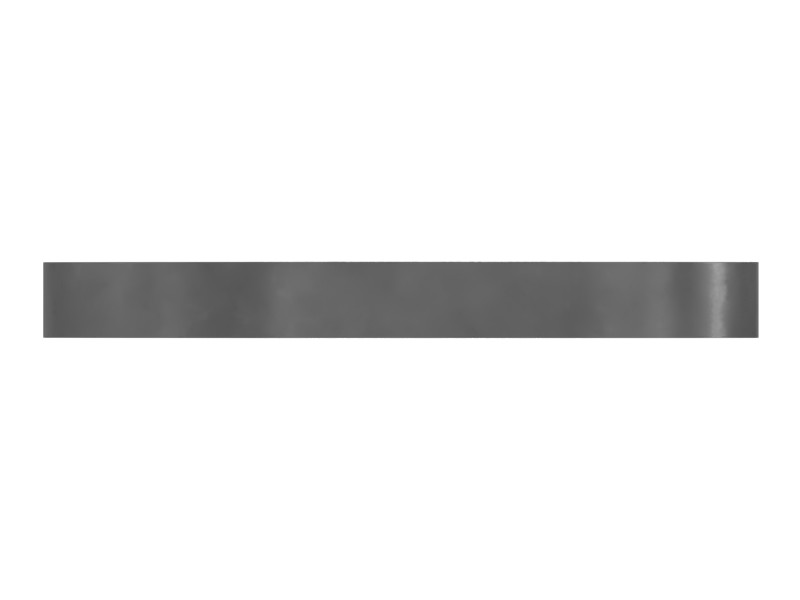

8W-1749 6 mm Thick Blade Bracket Support Plate
Buy the Cat® 6mm thick blade carrier support plate used in drawbar circles.
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The blade bracket support plate is a flat plate used to support the blade bracket assembly in the drawbar circle. The plate is typically made of durable materials such as metal and is designed to fit the bracket, providing additional support and increasing stability for the wear strip. Plates are available in a variety of sizes, thicknesses and other characteristics, selectable as required.
Features
- Comes with 3 mounting holes for use with 1/2 fasteners
- Manufactured to exact specifications, built for rugged durability and reliable performance.
- High strength, wear-resistant.
- Holds the wear band in its position.
Applications
The blade bracket support plate is used to support the blade bracket in the drawbar circle."
Specifications
| Overall Length | 100 mm (3.94 in) |
|---|---|
| Hole Size | 13.8 mm (0.54 in) |
| Overall Width | 57 mm (2.24 in) |
| Length | 100 mm (3.94 in) |
| Material | Steel |
| Surface Finish | Paint |
| Thickness | 6 mm (0.24 in) |
| Color | Medium Gloss Black |
| Width | 57 mm (2.24 in) |
Compatible Equipment
- Motor Graders: 120, 140H, 140G, 140K, 120H, 160K, 12H, 12K
