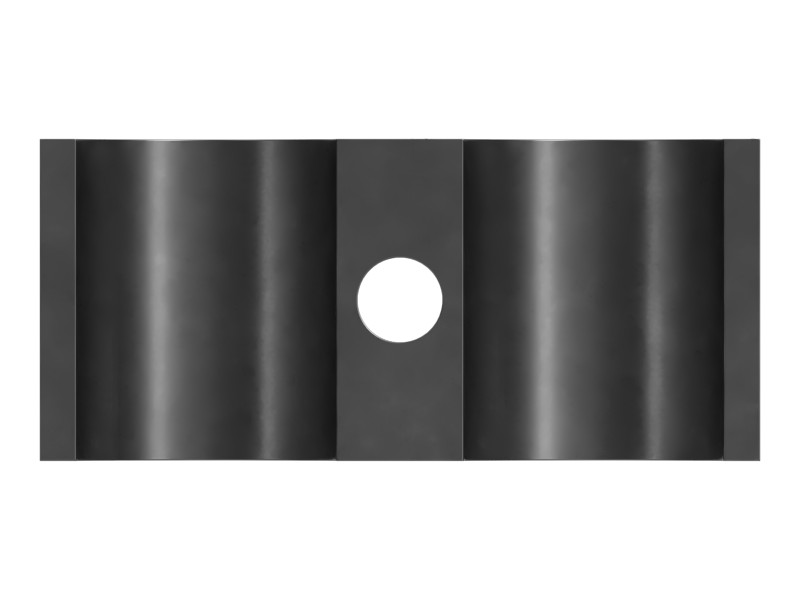

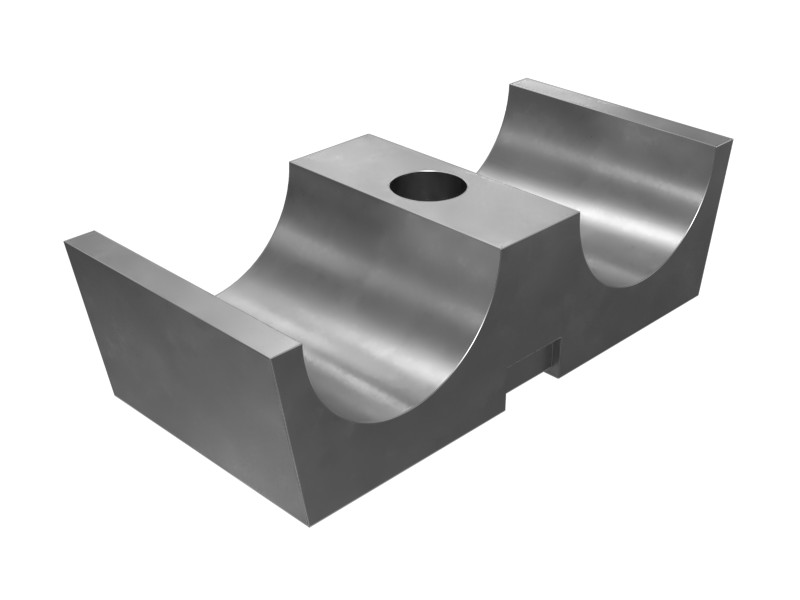

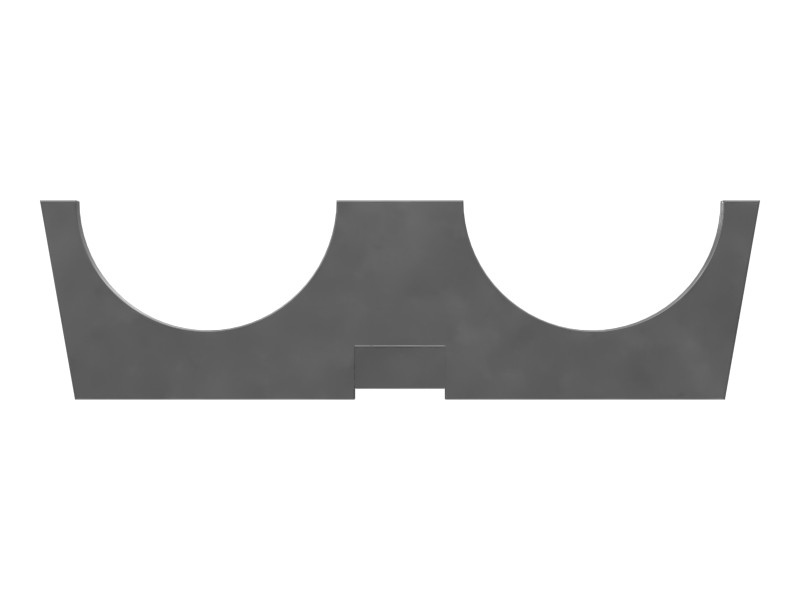

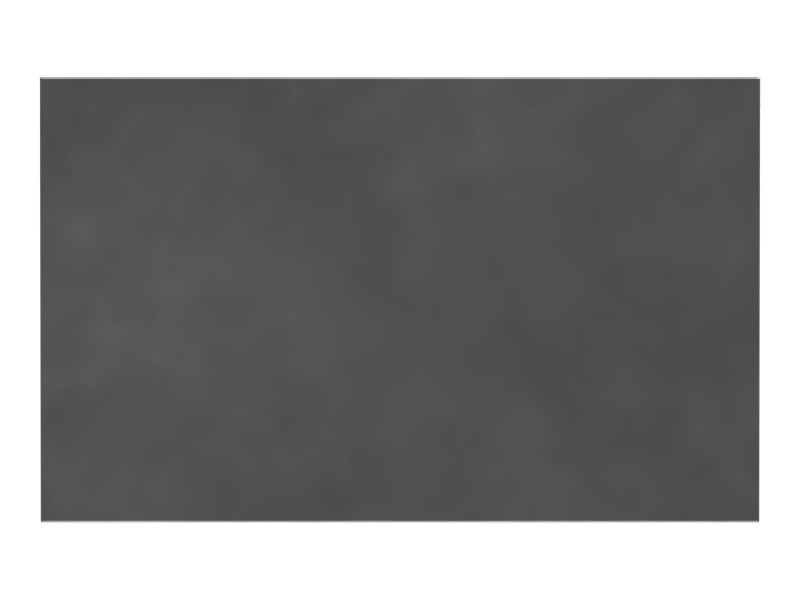

8V-5718 67 mm Long Double Clamp
Cat® double clamps for hydraulic transmission hose lines ensure proper routing and prevent hose line vibration during operation.
Description
Cat® clips and clamps are not ordinary off-the-shelf clips and clamps, but another excellent Cat "Built For It" product.
Features
- Double-tube clamp
- Material: Polypropylene
- Mounts with M8 or 5/16 fasteners
- For use with 21.4 mm (0.84 in) OD tubes
- Cat clamps meet or exceed ANSI, ASTM and DIN requirements
Applications
Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Plastic Plastic |
|---|---|
| Material Description | Polypropylene |
| Length | 67 (Reference) mm (2.64 (Reference) in) |
| Width | 30.5 (Reference) mm (1.2 (Reference) in) |
| Height | 18.5 (Reference) mm (0.73 (Reference) in) |
Compatible Equipment
- Cold Planers: SE50 VT, SE60 VT XW, PM622, PM620
- Compactors: CS12, CS7, CS-533C, CS79B, CS56B, CS54B, CP56B, CB-434D, CP54B, CS68B, CS78B, CS74B, CS11, CW-16, CS-583D, CS-54B, CS64B, CS-533E
- Excavators: SE60 V XW
- Wheel Loaders: RM500B, 910, RM400
- Asphalt Pavers: AP-600D, AP655F, AP655F L
- Skid Steer Loaders: 239D3, 232D3, 249D3, 262D, 246D, 232D, 236D, 226D3
Additional information
| Machine Model | 226D3, 232D, 232D3, 236D, 239D3, 246D, 249D3, 262D, 910, AP-600D, AP655F, AP655F L, CB-434D, CP54B, CP56B, CS-533C, CS-533E, CS-54B, CS-583D, CS11, CS12, CS54B, CS56B, CS64B, CS68B, CS7, CS74B, CS78B, CS79B, CW-16, PM620, PM622, RM400, RM500B, SE50 VT, SE60 V XW, SE60 VT XW |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Skid Steer Loaders, Compactors, Asphalt Pavers, Cold Planers |
| Part Source | Genuine OEM |
