Description

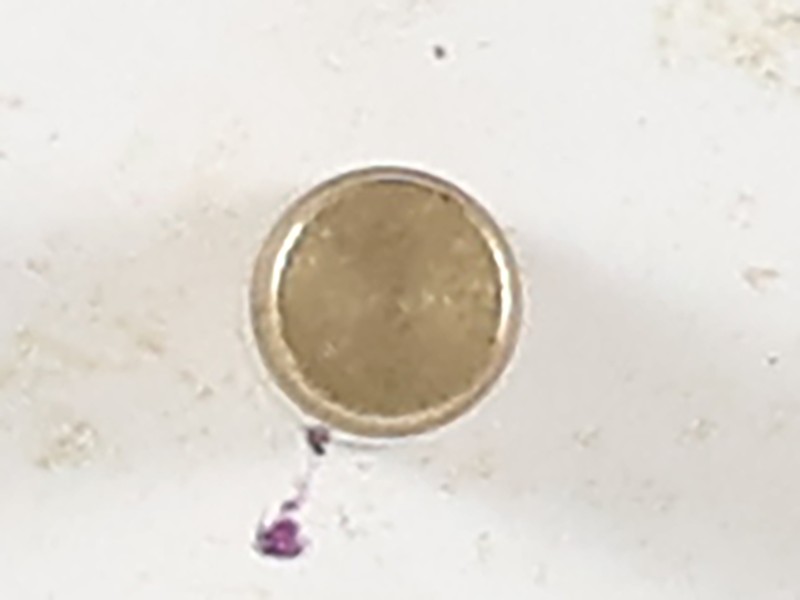

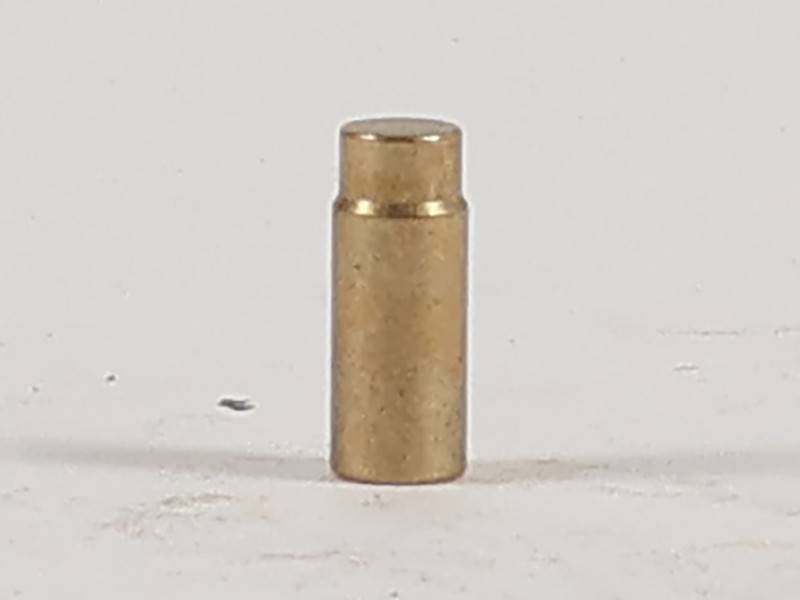

A pin is a fastener used to align and secure the swash plate and bearing in a piston pump. It passes through the swash plate and bearing, connecting them and allowing them to rotate as a unit. The swash plate is responsible for controlling the angle of the pistons, which in turn regulates the flow of oil through the pump.
Attributes
- Built to exact specifications for durability and reliability
- Provides high strength and withstands high stress
Applications
The pin is used to ensure that the swash plate remains properly aligned during operation, even under high loads and vibration.
Specifications
| Overall Length | 12.8 mm (0.504 in) |
|---|---|
| Internal Grease Passage Hole | No |
| Maximum Outside Diameter | 5 mm (0.197 in) |
| Puller Thread | No |
Compatible Equipment
- Motor Graders: 14
- Wheel Excavators: M315, M320
- Dozers: D10R, D10N, D6R III, D6R II, D6R, D7R II, D7R, D6R XL
- Wheel Loaders: 926M, 924K, 938K, 938M
- Off-Highway Trucks: 785D, 789D, 777, 785, 789
