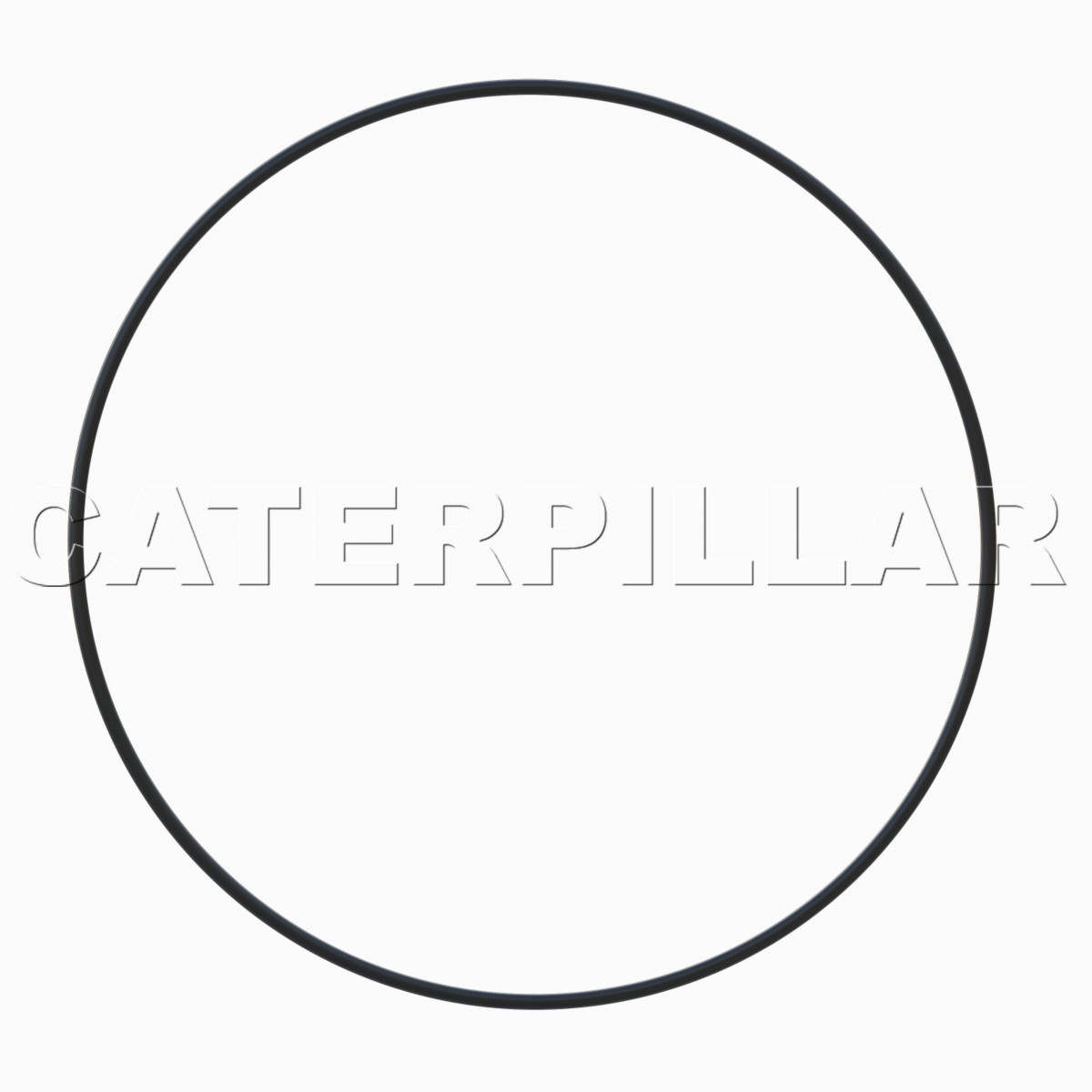

Description
O-rings are used for static sealing and some dynamic applications.
Attributes
Cat® O-rings are made from materials compatible with the fluids, temperatures and pressures in Cat engines and machines. These materials resist wear and extrusion, giving the seals excellent compression set resistance. In addition, some Cat O-rings are coated with PTFE to minimize seal twisting and cutting during installation.
Our O-rings are dimensioned to strictly follow tight tolerances, ensuring they are properly seated in the seal groove with the right seal compression.
With more than 2500 different sizes and materials of O-rings, Cat O-rings are the best solution for the O-ring needs of your Cat and other mobile equipment.
Cat sealing systems prevent leaks and contamination of more expensive parts. Genuine Cat seals protect your investment.
Applications
O-rings are used in many static and dynamic joints in Cat machines and engines.
Specifications
| Material | FKM (80) |
|---|---|
| Polymer | FKM (Fluorocarbon) |
| Remarks | Dimensions and material descriptions are for reference only. Color may differ from the image. |
| Coating | None |
| SAE AS568 Dash Size | 0 |
| Material Description | FKM provides excellent performance in most applications, including air, engine oil, diesel fuel, hydraulic oil, automatic transmission fluid and biodiesel. Most FKM formulations must not be used with coolant/urea. FKM is effective at high temperatures and has good abrasion and cut resistance. |
| Seal Inside Diameter | 210.00 mm |
| Outside Diameter | 8.5 mm (216 in) |
| Cross-Section Diameter | 3 mm (0.12 in) |
| Inside Diameter | 210 mm (8.27 in) |
Compatible Equipment
- Wheel Excavators: M315, M320
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
