Description

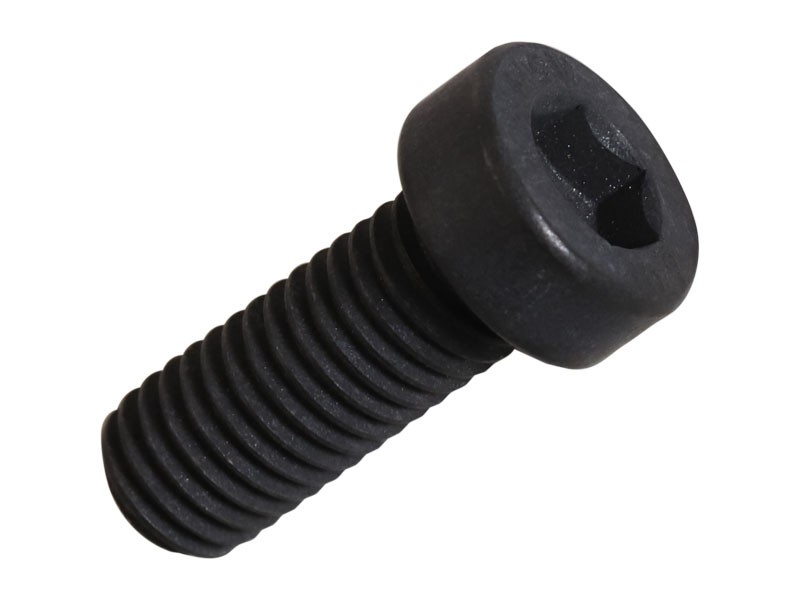

A socket head bolt is a threaded fastener used to join two or more components together. The bolt features a hex socket that accepts a hex key for tightening and a threaded shaft to fit the mating part. The recessed socket head allows flush mounting, ensuring the socket head can sit flush with the component being fastened.
Attributes
- Hex head socket provides a firm grip, reducing the risk of stripping the bolt head
- Compact size of the hex socket head allows access to tight spaces, reducing the risk of damaging surrounding interior surfaces
Applications
The socket head bolt is used to fasten two components together, ensuring they stay tight without loosening.
Specifications
| Thread Direction | RH |
|---|---|
| Locking Feature | None |
| Thread Size | M10 mm (0 in) |
| Handle Length | 4.5 mm (0.177 in) |
| Class or Grade | ISO 898-1 Class 10.9 |
| Coating | None |
| Thread Size (Diameter × Pitch) | M10x1.5 mm |
| Bolt Length | 25 mm (0.984 in) |
| Bolt Type | Socket Head |
Compatible Equipment
- Track Loaders: 982
- Wheel Excavators: M315, M320
- Dozers: D10R, D10N, D6R III, D7R II, D6R XL, D6R II, D7R, D6R
- Wheel Loaders: 980M, 982M
- Excavators: 330
Additional information
| Machine Model | 330, 980M, 982, 982M, D10N, D10R, D6R, D6R II, D6R III, D6R XL, D7R, D7R II, M315, M320 |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers |
| Part Source | Genuine OEM |
