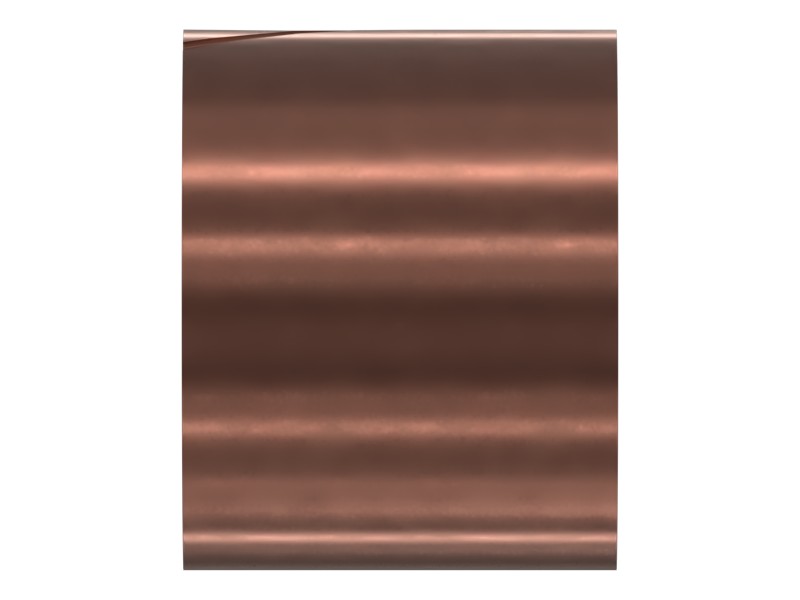

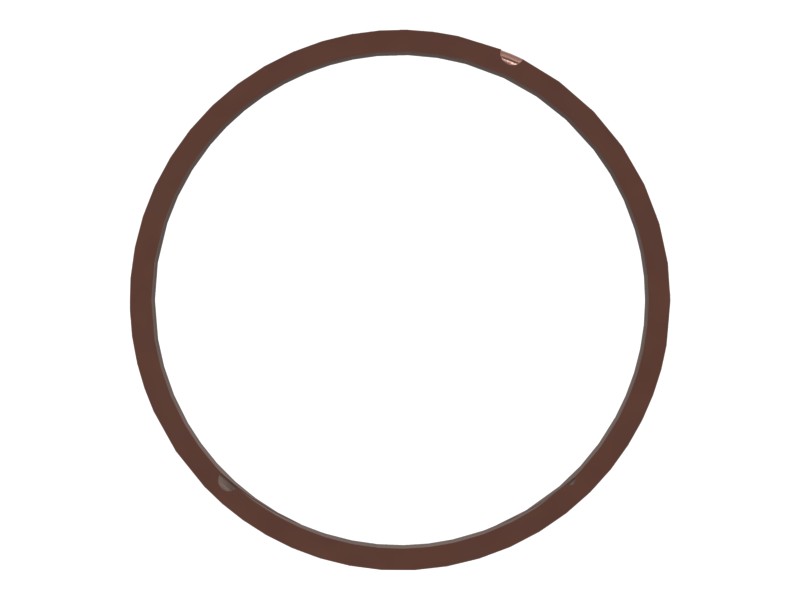

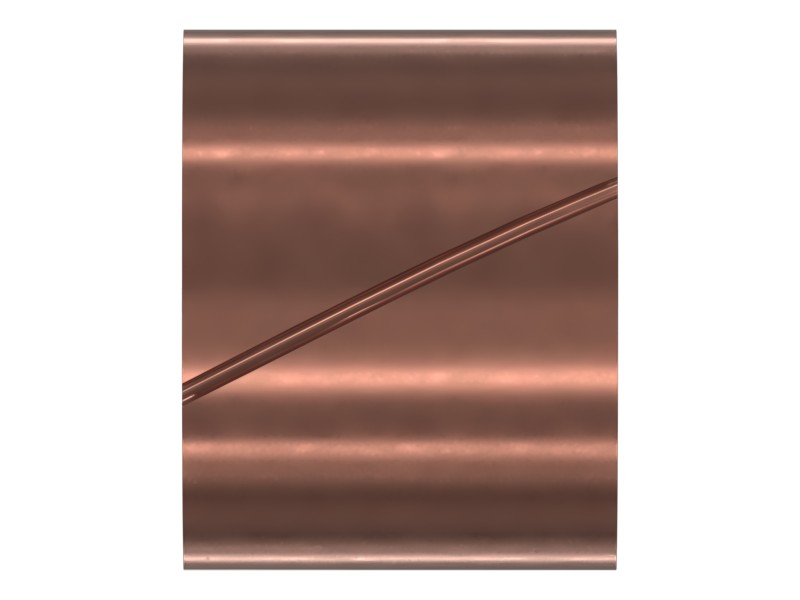

8U-2353 46 mm ID Oil Groove Bushing
Cat® 46 mm ID Oil Groove Bushing Used in Axle Housings
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
The oil groove bushing is a grooved bushing with grooves or channels machined into the inner surface of the bushing. The grooves are used to retain lubricant and distribute it evenly across the bushing surface to reduce friction and wear. It has patterns; these pattern channels or grooves promote the flow of lubricating oil across the bearing surface and reduce friction losses and dissipate heat.
Attributes
- Optimizes lubrication and reduces wear
- Able to withstand momentary shock loads
- High-temperature and corrosion resistant
Applications
The oil groove bushing is used in the axle housing assembly to provide friction-free rotation for the components.
Specifications
| Unique Features | No |
|---|---|
| Cross Hole | No |
| Ferrule Inside Diameter | 46 mm (1.811 in) |
| Ferrule Outside Diameter | 50 mm (1.969 in) |
| Overall Length | 40 mm (1.575 in) |
| Material | Alloy Copper |
Compatible Equipment
- Wheel Excavators: M315GC, M315, M315D2, M313D
- Wheel Loaders: M314
Additional information
| Machine Model | |
|---|---|
| Equipment Type | |
| Part Source | Genuine OEM |
