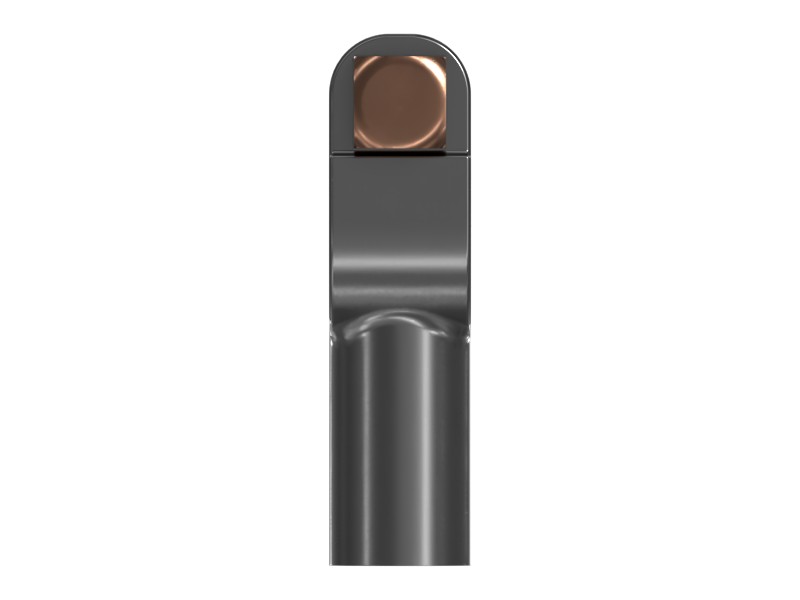

8T-9758 Battery Terminal
Cat® Positive Top Post Battery Terminal, Straight, Wire Gauge: 0 AWG
Description
Cat positive battery terminals (for example, 8T-9758) are used to connect electrical wires to the positive battery post.
Features
- Copper battery terminal with bolt, nut, and cover
- Terminal Type: Crimp
- Wire Gauge: 0 AWG
- Polarity: Positive
- Cable Entry: Straight
- Nut Position: Right Side
- For use with 5/16 in fasteners
Applications
Battery cable for Cat machines.
Specifications
| Material | Copper |
|---|---|
| Type | Crimp |
| Polarity | Positive |
| Length | 62 mm (2.44 in) |
| Width | 17 mm (0.65 in) |
| Height | 25 mm (1 in) |
| Wire Gauge | 0 AWG (50 mm2) AWG |
Compatible Equipment
- Generator Sets: 3406B, 3406C
- Wheel Excavators: IT14G
- Compactors: CB-334D, CB-335D
- Mini Excavators: 306.5, 310, 307, 307C, 308, 307B, 306, 308.5, 305.5 GC
- Wheel Loaders: 928G
- Excavators: 303, 307.5
- Skid Steer Loaders: 226B3, 216B3
Additional information
| Machine Model | 216B3, 226B3, 303, 305.5 GC, 306, 306.5, 307, 307.5, 307B, 307C, 308, 308.5, 310, 3406B, 3406C, 928G, CB-334D, CB-335D, IT14G |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Skid Steer Loaders, Compactors, Generator Sets |
| Part Source | Genuine OEM |
