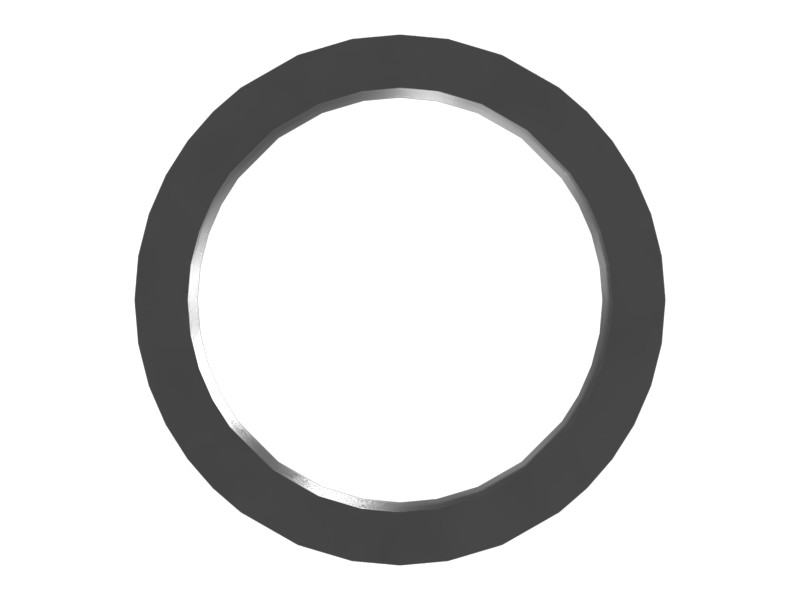

8T-9658 8.20 mm ID Steel Shim
Cat® 12.70 mm OD steel spacer used to increase fastener stretch length
Wholesale only · Full payment before shipment · Send your machine nameplate to confirm fitment
Description
A shim is a thick ring made of metal, rubber, or plastic that is held under a nut or bolt head to spread pressure or provide equalization between two surfaces when tightened.
Features
- Material: Steel
- Outside Diameter: 12.7 mm
- Inside Diameter: 8.2 mm
Applications
The shim is used in specific applications. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Low Alloy Steel |
|---|---|
| Cross Hole | No |
| Pin Type | Hollow |
| Thickness | 25.4 mm (1 in) |
| Gasket Type | Flat |
| Diameter | 12.7 mm (0.5 in) |
| Pin Length | 25.4 mm (1 in) |
| Outside Diameter | 12.7 mm (0.5 in) |
| Material Description | Steel |
| Inside Diameter | 8.2 mm (0.32 in) |
| Height | 25.4 mm |
Compatible Equipment
- Generator Sets: 3512B, C7.1, G3516, G3516C, 3516C
- Track Loaders: 982, 972
- Compactors: 834K, CW-16
- Engines: C13, C15, C175-16, C18
- Excavators: 330, 3516B, 3508B, 621G, 3516E, 326
- Asphalt Pavers: AP-600D
- Skid Steer Loaders: 24, 3126B
- Motor Graders: 120H, 140H, 140K, 12K, 12H, 16H, 160K, 16M3
- Wheel Excavators: MD6250, MD6310, MD6200
- Dozers: D11T, D10T2, D11R, D10T, D8T, D1, D10, D11
- Wheel Loaders: 950, 980, RM500B, 972H, 966H, 962L, 966K, 950H, 988K, 980L, 966L, 972L, 950L, 966, R1700G
- Off-Highway Trucks: 785, 725, 740B, 796 AC, 789D, 797F, 773E, 793F, 793D, 798 AC, 785D, 794 AC, 789, 793, 725C2
Additional information
| Machine Model | 120H, 12H, 12K, 140H, 140K, 160K, 16H, 16M3, 24, 3126B, 326, 330, 3508B, 3512B, 3516B, 3516C, 3516E, 621G, 725, 725C2, 740B, 773E, 785, 785D, 789, 789D, 793, 793D, 793F, 794 AC, 796 AC, 797F, 798 AC, 834K, 950, 950H, 950L, 962L, 966, 966H, 966K, 966L, 972, 972H, 972L, 980, 980L, 982, 988K, AP-600D, C13, C15, C175-16, C18, C7.1, CW-16, D1, D10, D10T, D10T2, D11, D11R, D11T, D8T, G3516, G3516C, MD6200, MD6250, MD6310, R1700G, RM500B |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Engines, Generator Sets |
| Part Source | Genuine OEM |
