Description

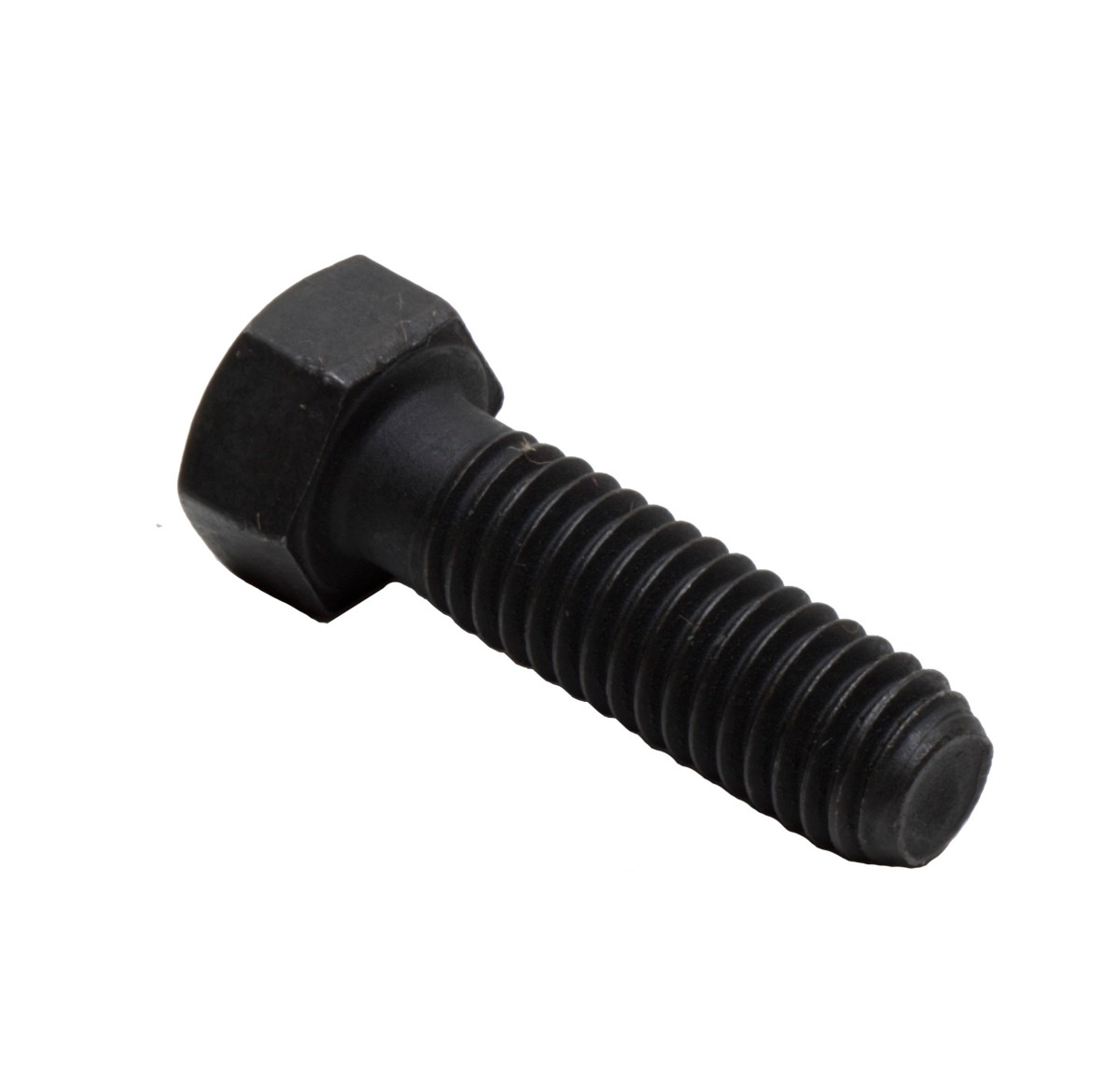

Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Locking Feature | None |
|---|---|
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Thread Size (Diameter × Pitch) | 1/2×13 mm |
| Thread Direction | RH |
| Thread Size | 0.500 mm (0.02 in) |
| Bolt Length | 22.23 mm (7/8 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 7.14 mm (0.28 in) |
| Material | Alloy Zinc |
Compatible Equipment
- Generator Sets: G3516, G3516C, 3516C, 3512B
- Track Loaders: 953, 963, 953D, 963K, 816F, 963D
- Cold Planers: PL87
- Wheel Excavators: MD6200
- Engines: C32, C27, C175-16
- Dozers: D6R II, D8N, D6R, D7R, D6G2 XL, D9R, D9N, D8L, D6G2 LGP, D6G, D11R, D10N, D10R, D11T, D10T, D9L, D11N
- Excavators: 3516B, 3512C, 3516E, 657G, 637G, 637E, 621G, 6040
- Wheel Loaders: R3000H, R2900G, R1700G, 966H, 972H, 910, 992D, 992C, R1300G, 836, 980H, 988F
- Off-Highway Trucks: 793D, 794 AC, 777E, 7495, 777, 773E, 777D, 771D, 773, 785, 793, 789, 773D
- Asphalt Pavers: AP-600D
Additional information
| Machine Model | 3512B, 3512C, 3516B, 3516C, 3516E, 6040, 621G, 637E, 637G, 657G, 7495, 771D, 773, 773D, 773E, 777, 777D, 777E, 785, 789, 793, 793D, 794 AC, 816F, 836, 910, 953, 953D, 963, 963D, 963K, 966H, 972H, 980H, 988F, 992C, 992D, AP-600D, C175-16, C27, C32, D10N, D10R, D10T, D11N, D11R, D11T, D6G, D6G2 LGP, D6G2 XL, D6R, D6R II, D7R, D8L, D8N, D9L, D9N, D9R, G3516, G3516C, MD6200, PL87, R1300G, R1700G, R2900G, R3000H |
|---|---|
| Equipment Type | Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Off-Highway Trucks, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
