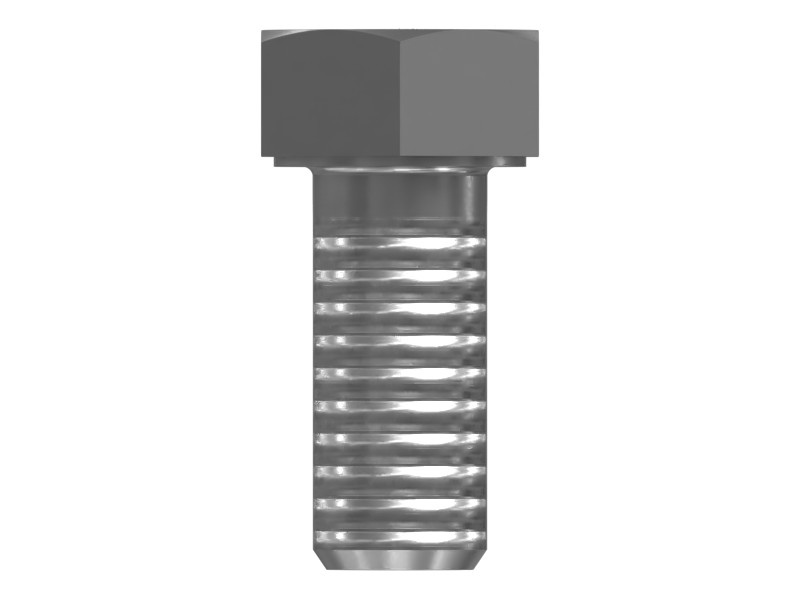

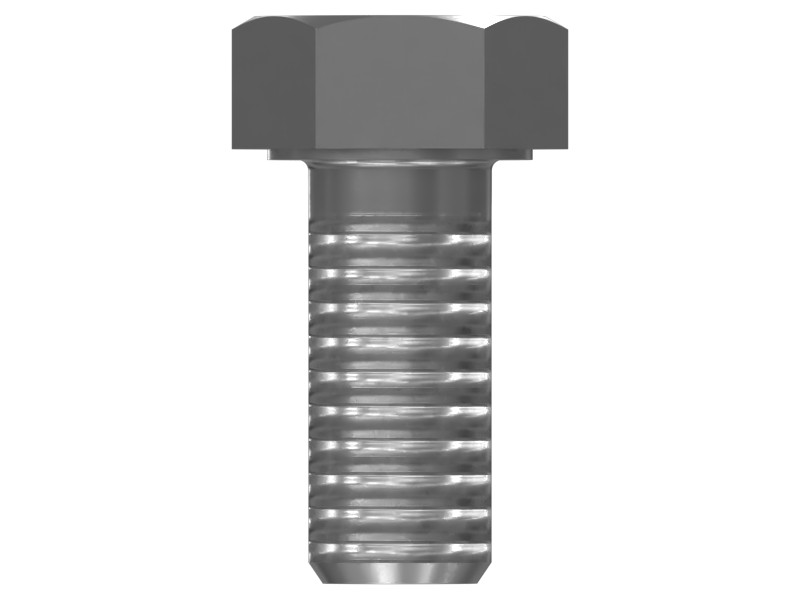

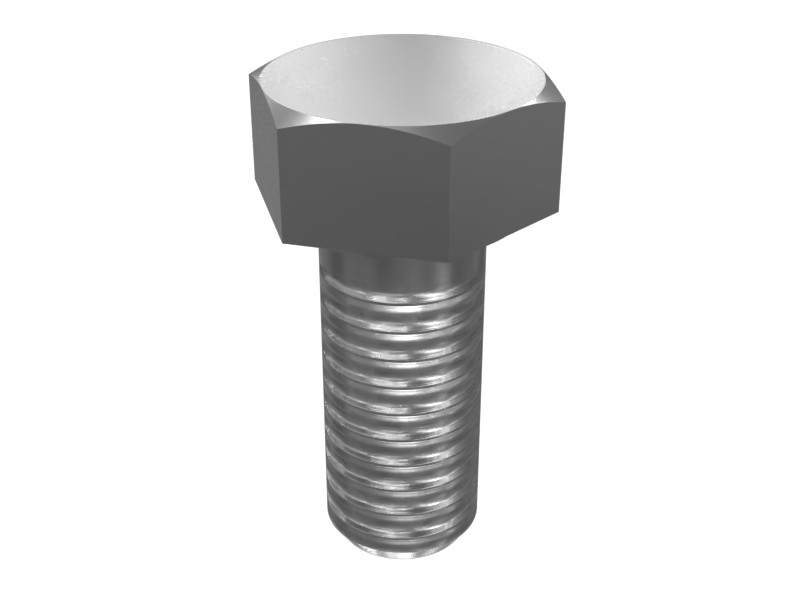

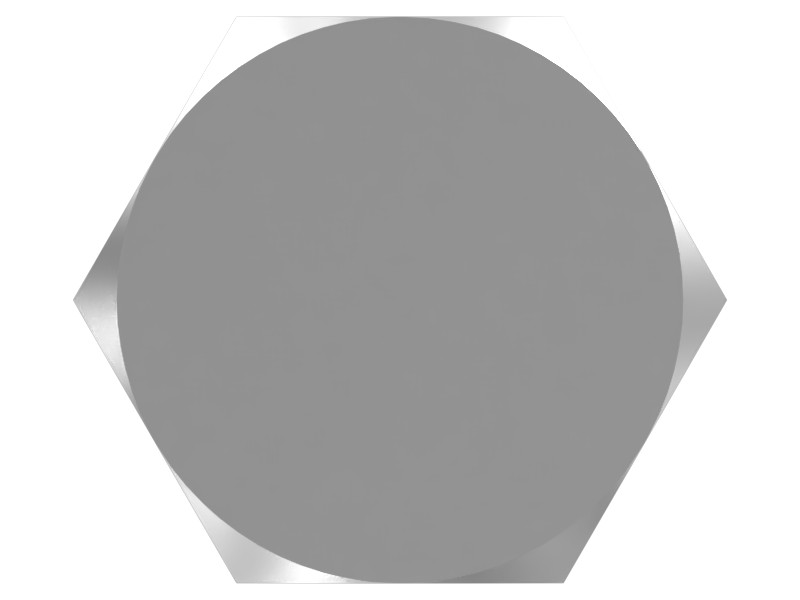

Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.
Hex head bolts/screws provide extremely strong tapping performance.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Thread Size | 0.4375 mm (0.017 in) |
|---|---|
| Locking Feature | None |
| Thread Direction | RH |
| Thread Size (Diameter × Pitch) | 7/16×20 mm |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Bolt Length | 25.4 mm (1 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc |
| Handle Length | 3.17 mm (0.13 in) |
| Material | STEEL |
Compatible Equipment
- Generator Sets: C4.4
- Track Loaders: 972, 953, 963, 824G, 826G, 982
- Compactors: CS-533C
- Excavators: 330, 320D, 313, 313 GC, 374, 352, 350, 336, 315, 315 GC, 120 GC, 330 GC, 320D L, 340, 349, 345 GC, 320 GC, 330GC, 336 GC, 323, 326, 323GC, 320, 325, 326GC, 301.8, 301.6, 335, 395, 323 GC, 3101, 333, 326 GC, 6060, 350MHPU, 6040
- Skid Steer Loaders: 236
- Motor Graders: 140 GC, 12H, 140H, 120H, 160K, 140K, 120, 12K
- Wheel Excavators: IT14G, M320, M315
- Dozers: D6G2 LGP, D6G2 XL, D7H, D5H, D7G, D7G2, D9R, D10R
- Mini Excavators: 303.5, 301.5
- Wheel Loaders: 966, 928HZ, 980G, 924GZ, 966F, 928G, 924HZ, M314, 910, 980, 906K, 992C, 950
- Off-Highway Trucks: 772G, 793D, 794 AC, 785, 789D, 771D, 777D, 797F, 793F, 785D, 773F, 773D, 777, 773E, 775G, 789, 770G, 796 AC
Additional information
| Machine Model | 120, 120 GC, 120H, 12H, 12K, 140 GC, 140H, 140K, 160K, 236, 301.5, 301.6, 301.8, 303.5, 3101, 313, 313 GC, 315, 315 GC, 320, 320 GC, 320D, 320D L, 323, 323 GC, 323GC, 325, 326, 326 GC, 326GC, 330, 330 GC, 330GC, 333, 335, 336, 336 GC, 340, 345 GC, 349, 350, 350MHPU, 352, 374, 395, 6040, 6060, 770G, 771D, 772G, 773D, 773E, 773F, 775G, 777, 777D, 785, 785D, 789, 789D, 793D, 793F, 794 AC, 796 AC, 797F, 824G, 826G, 906K, 910, 924GZ, 924HZ, 928G, 928HZ, 950, 953, 963, 966, 966F, 972, 980, 980G, 982, 992C, C4.4, CS-533C, D10R, D5H, D6G2 LGP, D6G2 XL, D7G, D7G2, D7H, D9R, IT14G, M314, M315, M320 |
|---|---|
| Equipment Type | Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Generator Sets |
| Part Source | Genuine OEM |
