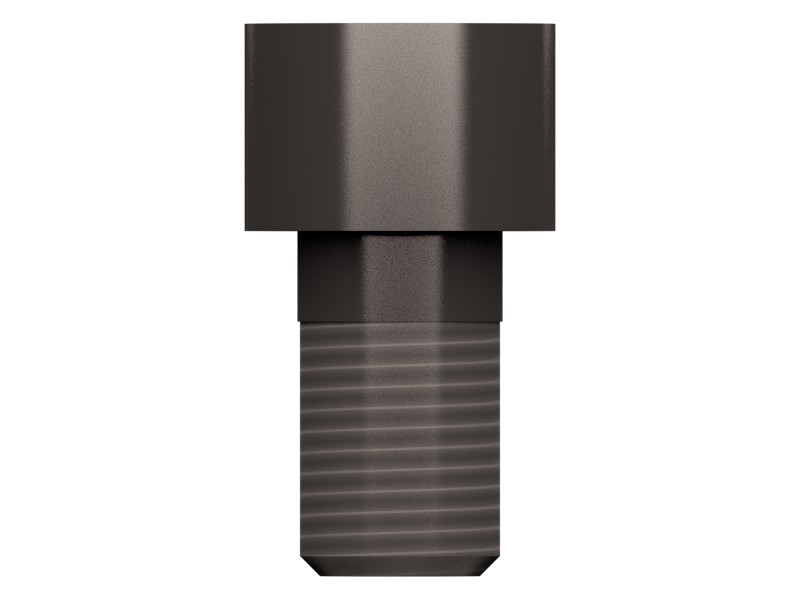

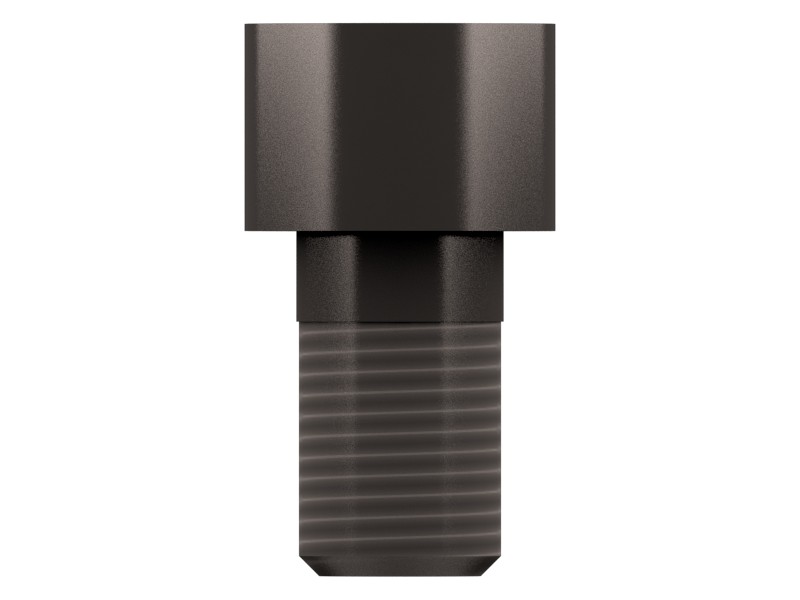

8T-9080 M12X1.75 Thread Socket Head Bolt

Description

Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

These bolts can be installed when there is not enough clearance to use hex head bolts.

Features

Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
Coating meets the special requirements of different applications (RoHS compliant).

Applications

Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.

Specifications

Bolt Type	Socket Head
Thread Size	M12 mm (0 in)
Thread Direction	RH
Coating	Zinc
Bolt Length	20 mm (0.787 in)
Class or Grade	ISO 898-1 Class 12.9
Handle Length	5.25 mm (0.207 in)
Thread Size (Diameter × Pitch)	M12 × 1.75 mm
Locking Feature	None

Compatible Equipment

Generator Sets: 3512B
Motor Graders: 349 GC
Track Loaders: 973K
Cold Planers: PL72
Wheel Excavators: MD6250, MD6200
Dozers: D4, D7, D6T
Mini Excavators: 303.5D, 307, 303.5C, 303.5E
Excavators: 330D L, 349F L, 336, 336 GC, 345 GC, 333, 350, 330C, 320C, 329E L, 325D, 330C L, 325D L, 336F L XE, 336F, 325B L, 336F LN, 340, 323, 336D L, 336D2 GC, 329D L, 330D, 328D LCR, 336E LH, 330D2, 336F L, 325C, 320, 349, 352, 335, 330 L, 336E LN, 320D FM, 330B, 336E L, 336D2 L, 330D2 L, 330 GC, 336E, 345C, 345C L, 345B, 349E, 345D L, 349E L, 352F, 349E L VG, 345D, 349D L, 340D2 L, 340D L, 350 L, 325C L, 330GC, 325B, 329E, 336D2 XE, 336E H, 335F LCR, 355, 325, 320D, 329D2, 303C CR, 329D2 L, 336D, 330, 329D, 336D2, 349D, 349D2, 349D2 L
Wheel Loaders: M314
Off-Highway Trucks: 798 AC, 796 AC, 794 AC

Machine Model	303.5C, 303.5D, 303.5E, 303C CR, 307, 320, 320C, 320D, 320D FM, 323, 325, 325B, 325B L, 325C, 325C L, 325D, 325D L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330 L, 330B, 330C, 330C L, 330D, 330D L, 330D2, 330D2 L, 330GC, 333, 335, 335F LCR, 336, 336 GC, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 340D L, 340D2 L, 345 GC, 345B, 345C, 345C L, 345D, 345D L, 349, 349 GC, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 350, 350 L, 3512B, 352, 352F, 355, 794 AC, 796 AC, 798 AC, 973K, D4, D6T, D7, M314, MD6200, MD6250, PL72
Equipment Type	Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Cold Planers, Generator Sets
Part Source	Genuine OEM

Machine Model

303.5C, 303.5D, 303.5E, 303C CR, 307, 320, 320C, 320D, 320D FM, 323, 325, 325B, 325B L, 325C, 325C L, 325D, 325D L, 328D LCR, 329D, 329D L, 329D2, 329D2 L, 329E, 329E L, 330, 330 GC, 330 L, 330B, 330C, 330C L, 330D, 330D L, 330D2, 330D2 L, 330GC, 333, 335, 335F LCR, 336, 336 GC, 336D, 336D L, 336D2, 336D2 GC, 336D2 L, 336D2 XE, 336E, 336E H, 336E L, 336E LH, 336E LN, 336F, 336F L, 336F L XE, 336F LN, 340, 340D L, 340D2 L, 345 GC, 345B, 345C, 345C L, 345D, 345D L, 349, 349 GC, 349D, 349D L, 349D2, 349D2 L, 349E, 349E L, 349E L VG, 349F L, 350, 350 L, 3512B, 352, 352F, 355, 794 AC, 796 AC, 798 AC, 973K, D4, D6T, D7, M314, MD6200, MD6250, PL72

Equipment Type

Excavators, Mini Excavators, Wheel Excavators, Wheel Loaders, Track Loaders, Dozers, Motor Graders, Off-Highway Trucks, Cold Planers, Generator Sets

Part Source

Genuine OEM
