Description

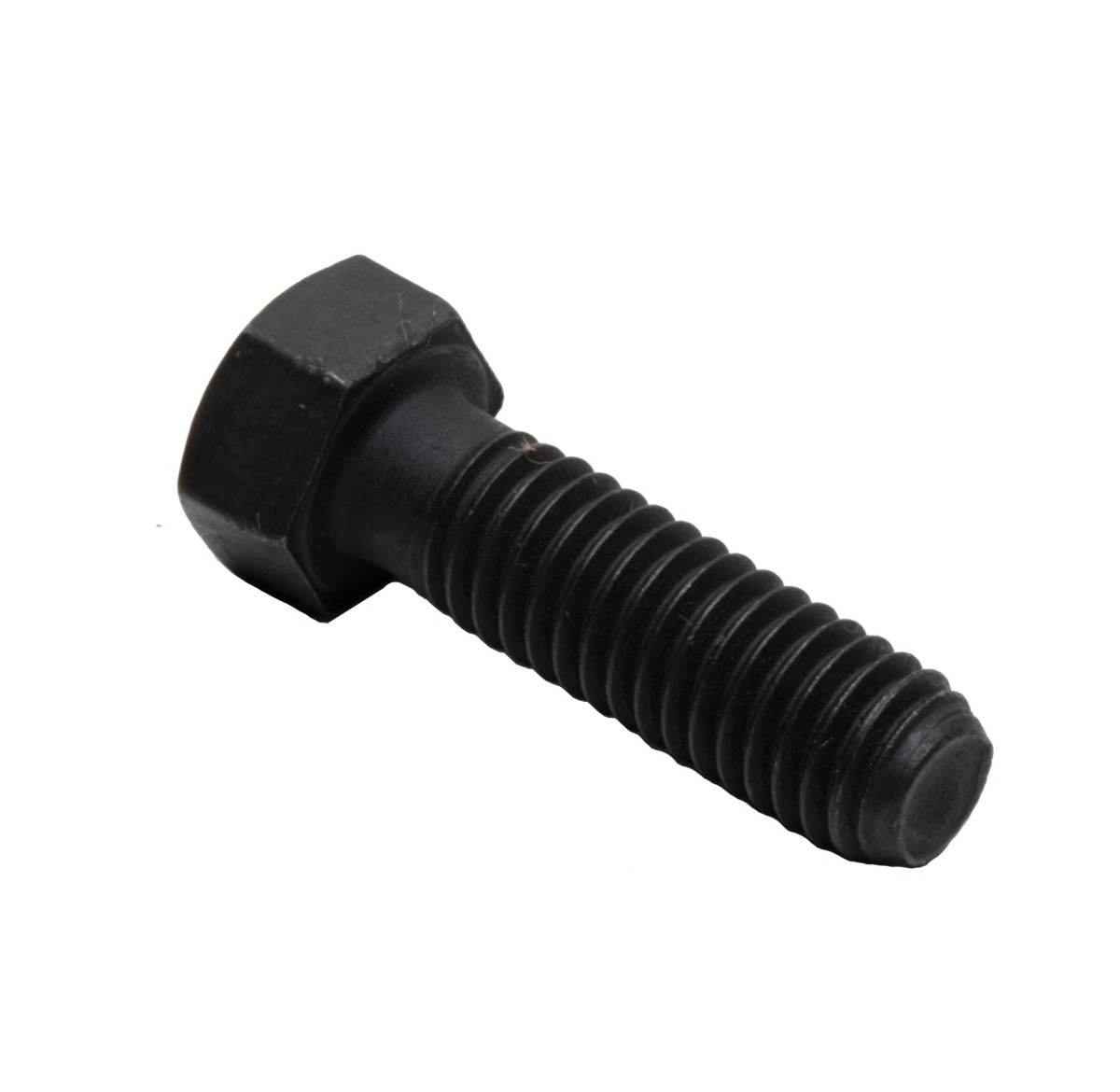

Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Thread Size | 0.750 mm (0.03 in) |
|---|---|
| Thread Size (Diameter × Pitch) | 3/4×10 mm |
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Thread Direction | RH |
| Locking Feature | None |
| Bolt Length | 120.65 mm (4 3/4 in) |
| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 76.2 mm (3 in) |
| Material | Alloy Zinc |
Compatible Equipment
- Cold Planers: PL87
- Compactors: 815
- Dozers: D11N, D6R, D7R, D6R II, D7H, D7R II, D5H, D8R, D8N
- Excavators: 621G, 657G, 637G, 637E, 637K, 621H, 3516B, 621K, 3512C
- Wheel Loaders: 992D, 992C
- Off-Highway Trucks: 796 AC, 794 AC, 798 AC
Additional information
| Machine Model | 3512C, 3516B, 621G, 621H, 621K, 637E, 637G, 637K, 657G, 794 AC, 796 AC, 798 AC, 815, 992C, 992D, D11N, D5H, D6R, D6R II, D7H, D7R, D7R II, D8N, D8R, PL87 |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Dozers, Off-Highway Trucks, Compactors, Cold Planers |
| Part Source | Genuine OEM |
