Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Thread Size (Diameter × Pitch) | 1/4×20 mm |
|---|---|
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Locking Feature | None |
| Thread Size | 0.250 mm (0.01 in) |
| Thread Direction | RH |
| Bolt Length | 25.4 mm (1 in) |

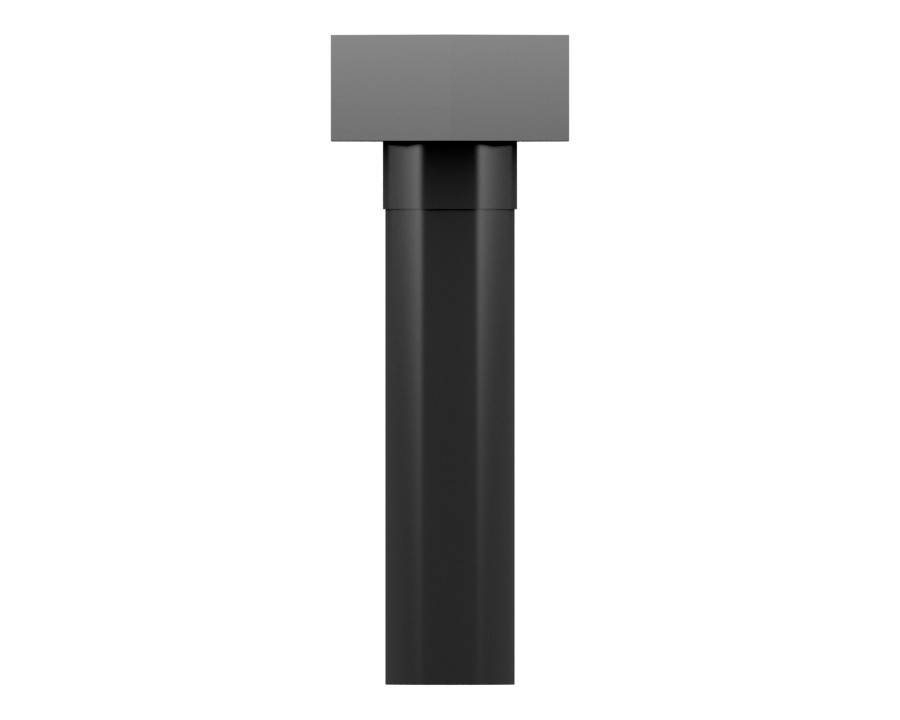

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Plated |
| Handle Length | 3.175 mm (0.13 in) |
| Material | Steel |
Compatible Equipment
- Generator Sets: G3516, 3512B, G3516C, 3406C, 3512E, 3516C, 3406B
- Track Loaders: 995, 963, 953, 994K
- Cold Planers: TH255C
- Compactors: CS-533C
- Engines: C32, C7, C15, C27, C18, C175-16
- Excavators: 3456, 3126, 3516E, 3516B, 312 GC, 312 GX, 637E, 637G, 3512C, 3508B, 657G, 6060
- Asphalt Pavers: AD45, AD30, AD63, AP-600D
- Skid Steer Loaders: 232D3, 226D3, 236D3, 299D3 XE, 289D3, 262D, 3126B, 232D, 246D, 236D, 239D3, 272D3, 272D3 XE, 249D3, 242D3
- Motor Graders: 140H, 140G, 120H, 12H
- Dozers: D10R, D10N, D10T, D7G, D6R II, D9R, D6T, D7R II, D5H, D7R, D9N, D6R, D9L, D6R III, D6T LGP, D11N, D11R, D6R XL, D8L, D9T
- Compact Track Loaders: 299D3, 279D3
- Wheel Loaders: 906K, R1300G, R1700G, 966F, R1700 II, 836, 992D, 988F, R1600H, R2900G, R2900 XE, R3000H, R1700K
- Off-Highway Trucks: 793D, 794 AC, 798 AC, 785, 777, 7495, 785D, 789D, 796 AC, 789, 793
Additional information
| Machine Model | 120H, 12H, 140G, 140H, 226D3, 232D, 232D3, 236D, 236D3, 239D3, 242D3, 246D, 249D3, 262D, 272D3, 272D3 XE, 279D3, 289D3, 299D3, 299D3 XE, 312 GC, 312 GX, 3126, 3126B, 3406B, 3406C, 3456, 3508B, 3512B, 3512C, 3512E, 3516B, 3516C, 3516E, 6060, 637E, 637G, 657G, 7495, 777, 785, 785D, 789, 789D, 793, 793D, 794 AC, 796 AC, 798 AC, 836, 906K, 953, 963, 966F, 988F, 992D, 994K, 995, AD30, AD45, AD63, AP-600D, C15, C175-16, C18, C27, C32, C7, CS-533C, D10N, D10R, D10T, D11N, D11R, D5H, D6R, D6R II, D6R III, D6R XL, D6T, D6T LGP, D7G, D7R, D7R II, D8L, D9L, D9N, D9R, D9T, G3516, G3516C, R1300G, R1600H, R1700 II, R1700G, R1700K, R2900 XE, R2900G, R3000H, TH255C |
|---|---|
| Equipment Type | Excavators, Wheel Loaders, Track Loaders, Compact Track Loaders, Skid Steer Loaders, Dozers, Motor Graders, Off-Highway Trucks, Compactors, Asphalt Pavers, Cold Planers, Engines, Generator Sets |
| Part Source | Genuine OEM |
