Description
Cat® fastener parts are designed for specific applications based on size, strength, clamp load and past performance, information other manufacturers do not have. They are carefully selected to last until machine rebuild or end of life. Non-Cat hardware and fasteners may appear to fit your machine, but no one else knows your equipment the way we do.

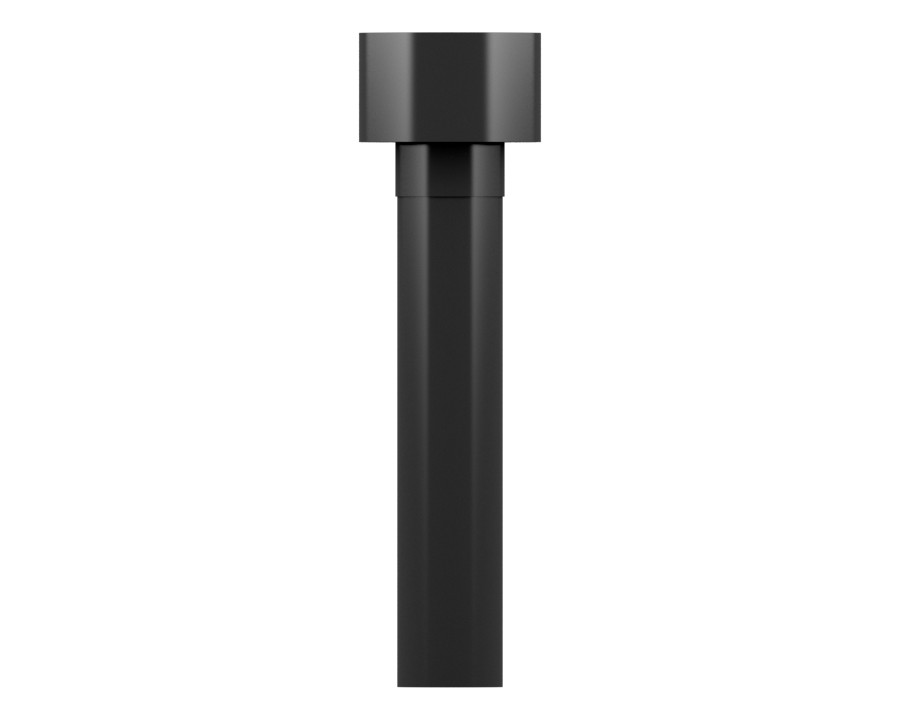

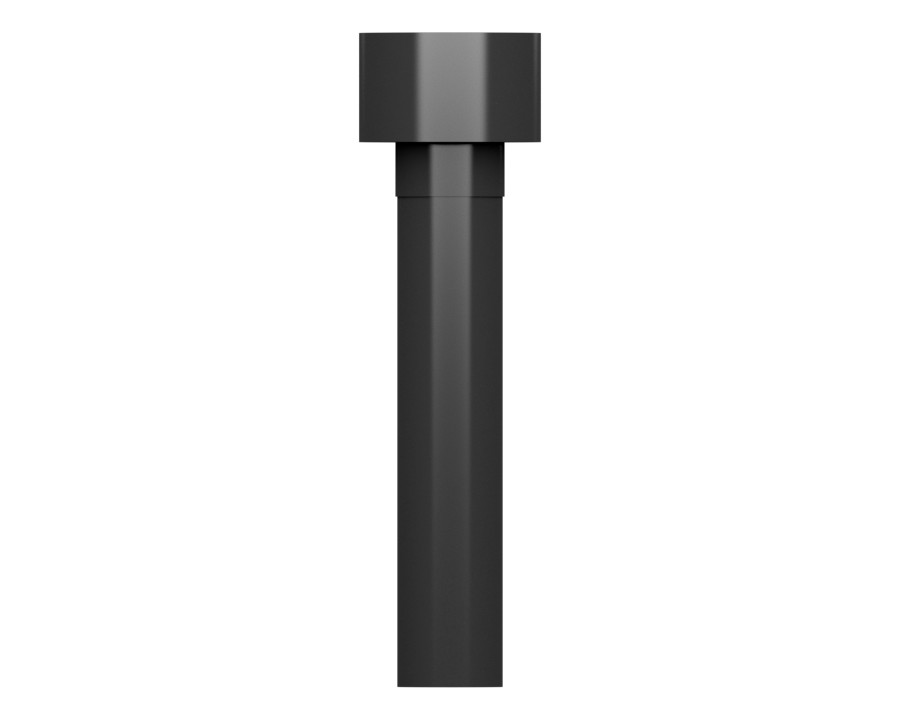

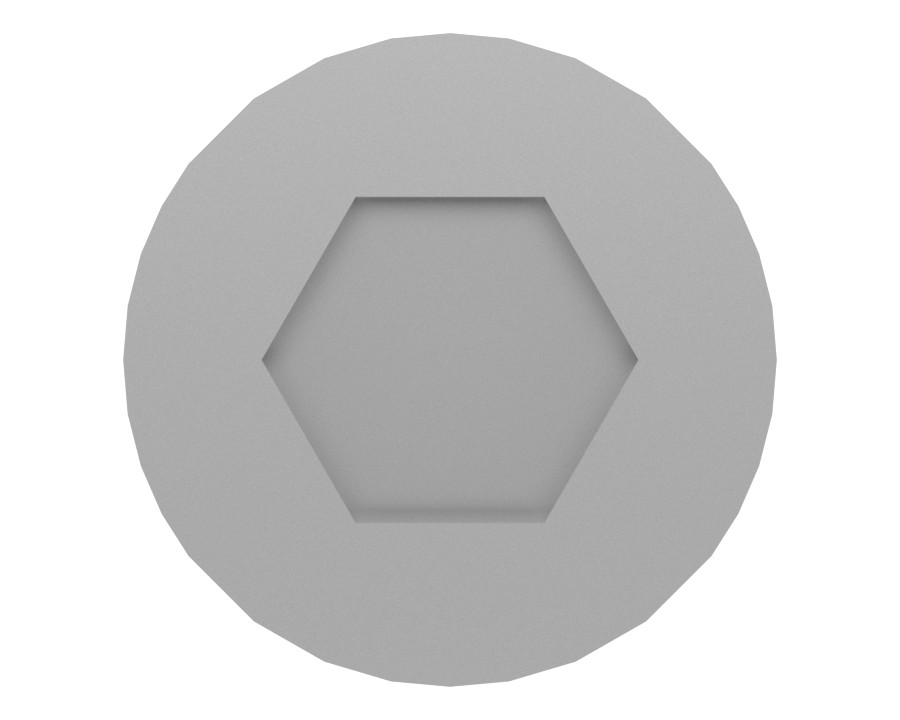

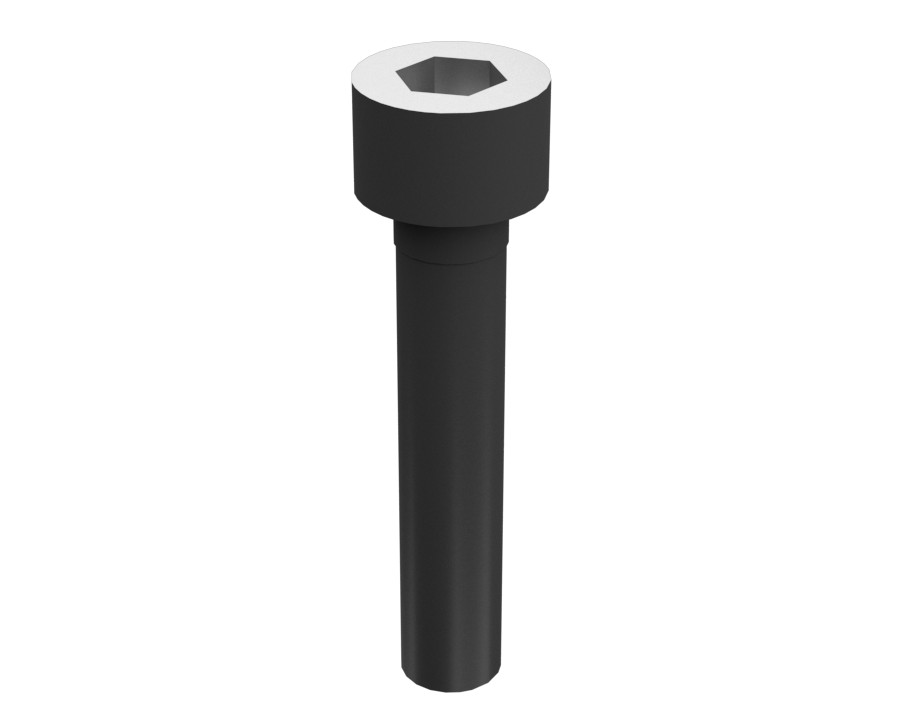

Socket head bolts are used in designs where there is not enough clearance to install hex head bolts and use assembly tools.
Features
- Cat fasteners are manufactured to precise specifications for durability, reliability and high efficiency
- Strength and Quality – Fasteners meet or exceed ISO, ASTM, ASME and SAE requirements.
- Cat bolts, nuts and washers are specifically designed to work together as a system to maximize clamping force.
- Coating meets the special requirements of different applications (RoHS compliant).
Applications
Cat bolts form a high-performance system with mating hardened washers and nuts to produce consistent, high clamping force. You can trust Cat fasteners to help you build, maintain or rebuild in most machine and shop applications worldwide.
Specifications
| Locking Feature | None |
|---|---|
| Thread Size | M6 mm (0 in) |
| Bolt Type | Socket Head |
| Thread Direction | RH |
| Class or Grade | ISO 898-1 Class 12.9 |
| Coating | Zinc Phosphate + Oil |
| Material | STEEL |
| Thread Size (Diameter × Pitch) | M6 X 1 mm |
| Bolt Length | 30 mm (1.181 in) |
| Handle Length | 3 mm (0.118 in) |
Compatible Equipment
- Generator Sets: 3512E, 3516C, 3512B, C9, G3516C, C4.4, G3516
- Track Loaders: 990K, 826K, 953K, 963D, 824C, 994K, 993, 995, 953, 972, 982, 963K, 953D, 973K, 826H, 834H, 992
- Cold Planers: PL72, PL83, PL87, PM-200, PM620, PM622, TH360B
- Compactors: 834K, 825K, CP56B, CS-533C, CB-564D, CS-56, CW-34, CS12, CB16, CB-434D, CS74B, CS78B, CB-534D, CS-563E, CS68B, CS79B, 824K, CS56B, CS-583D, CB-66B, CB-14B, CB-64B, 816, 815, 814, CB-44B, CB10, CB13, CB15
- Engines: C15, C11, C13, C32, C7, C27, C175-16, C18
- Excavators: 349D2, 349D2 L, 303.5E2 CR, 336D, 306E2, 326D2, 336D2, 307E, 305, 374D L, 374F, 329D, 303, 3126, 390D L, 390F L, 330, 307.5, 303C CR, 308E, 308D, 305C CR, 306E, 349D, 320D2, 330D L, 305E2 CR, 349F L, 313 GC, 374, 313, 345D, 345C, 345D L, 390F, 428F, 324D, 336E L, 325C, 325D L, 340, 336D L, 330D, 336D2 GC, 336, 324D L, 301.8, 325D, 336E, 314D LCR, 336 GC, 336D2 L, 390D, 349D L, 6060, 3516E, 385C, 365C, 385B, 350 L, 345C L, 6020B, 349E, 3516B, 352F, 6015B, 621H, 349E L, 621K, 621G, 365B, 349E L VG, 637K, 329D L, 330D2, 314D CR, 325C L, 328D LCR, 311B, 637G, 416F2, 434F2, 365C L, 350, 320D3 GC, 432, 352, 355, 3101, 3512C, 374F L, 305 CR, 120 GC, 315 GC, 315, 349, 302.7CR, 303CR, 395, 345 GC, 6015, 325B, 325B L, 637E, 315F LCR, 336E LN, 320B, 301.6, 320D3, 303.5CR, 657G, 385C L, 416E, 340D L, 340D2 L, 345B, 365B L, 385C FS, 6040, 3508B, M325D L MH, 6030
- Asphalt Pavers: AP655F, AP355F, AP300F, AD63, AP655F L
- Skid Steer Loaders: 236D3, 279C, 299D3 XE, 262D, 239D3, 259D3, 289D3, 246D, 246D3, 236D, 242D3, 3126B, 262C, 232D, 262D3, 232D3, 226D3, 249D3, 246C, 24, 272D3, 272D3 XE
- Motor Graders: 12K, 160K, 120, 140H, 12H, 16, 120H, 18, 14, 140G, 140K, 349 GC, 140 GC, 16M3, 16H, 14M, 3606
- Wheel Excavators: M315, MD6250, M320, M322D, MD6310, MD6200
- Dozers: D10T, D11T, D8R, D8, D8T, D6N, D4, D9T, D7, D11R, D8N, D6T LGP, D6T, D6M, D5M, D10, D4G, D11, D5N, D7E, D7H, D6K2, D6R II, D6R XL, D5G, D3G, D10R, D10T2, D6R, D6R LGP, D9
- Compact Track Loaders: 279D3, 299D3
- Mini Excavators: 305.5E, 301.7CR, 306.5, 310, 305.5E2, 305E2, 303.5E, 307E2, 308, 308E2, 301.5, 306, 302CR, 308.5, 303.5C, 307D, 303.5D, 305.5, 307, 305.5 GC
- Wheel Loaders: 950H, 924GZ, 928G, 924K, 988K, 972H, 950G, 980G, 966H, 972L, 966L, 924HZ, 980L, 962G, 990H, RM500B, 980H, 926M, 950 GC, 988G, 986H, 988H, 836, 966, 966K, 938K, 966F, 950L, 972G, 962L, 980, 834, 938M, 906K, M314, R1700K, R1700 XE, 950, R2900 XE, R1700G
- Off-Highway Trucks: 771D, 773F, 777D, 740, 796 AC, 770G, 740 GC, 798 AC, 740B, 793F, 730, 735, 745C, 794 AC, 725, 772G, 793D, 797F, 785D, 777E, 773, 777, 785, 773E, 725C2, 775G, 745, 773D, 793, 789
