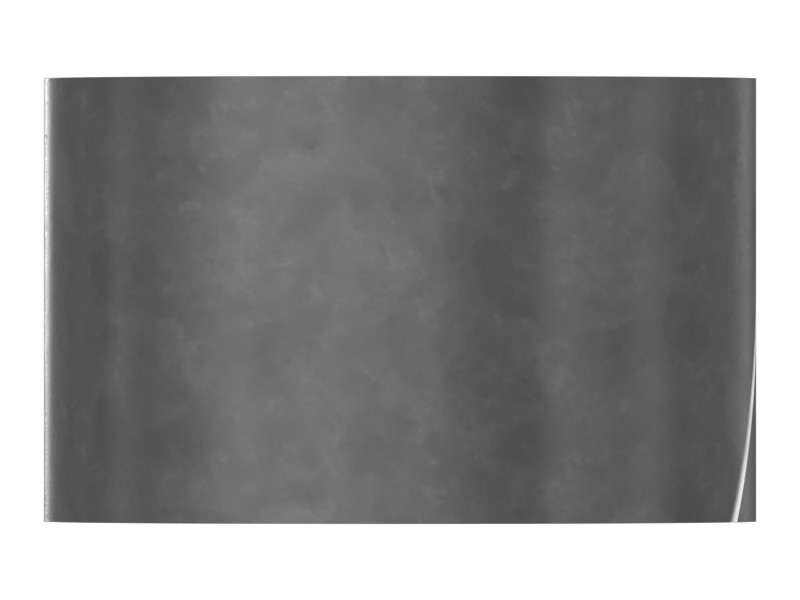

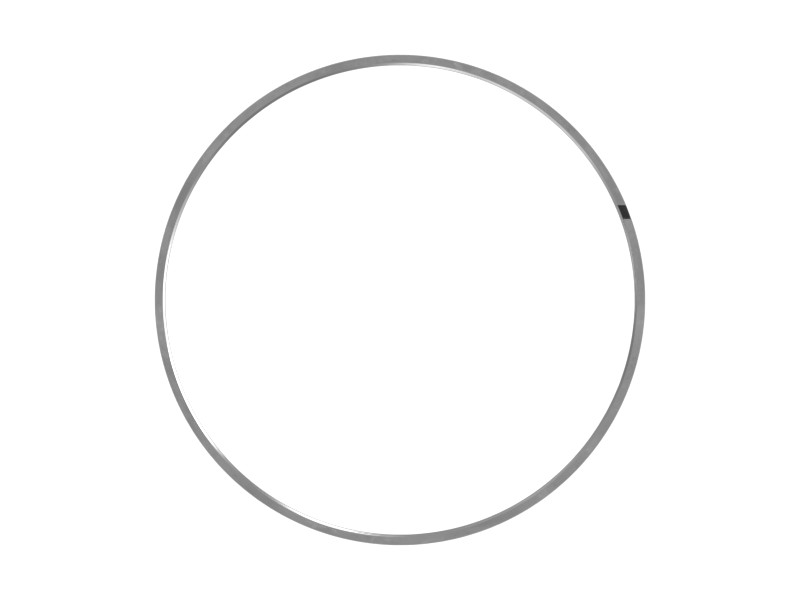

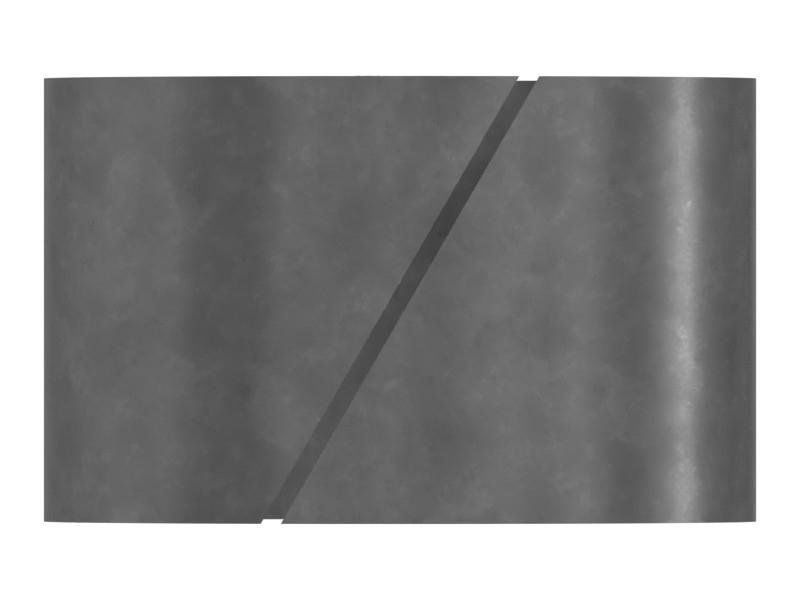

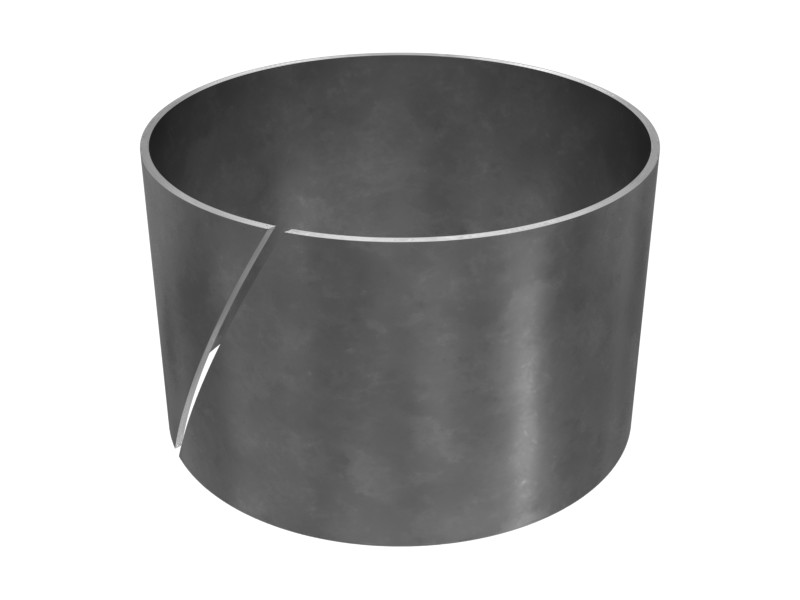

8T-7695 203.20 mm Bore Piston Guide
Cat® Plastic Wear Ring Piston Guide for Suspension Cylinders
Description
Cat wear rings guide the hydraulic piston or rod to maintain alignment and prevent metal-to-metal contact, reducing wear and distributing pressure evenly across the seals.
Applications
Used as needed for servicing hydraulic cylinder components to ensure leak-free equipment. Refer to your Operation and Maintenance Manual or contact MECHSC for more information.
Specifications
| Material | Nylon, 6, 6/12, 6/6 Plastic |
|---|---|
| Inside Diameter – B (+/- 0.08 in) | 196.62 mm (7.74 in) |
| Outside Diameter | 203.15 mm (8.00 in) |
| Width – A (+/- 0.762 mm) | 126.90 mm |
| Width – A (+/- 0.03 in) | 5.00 in |
Compatible Equipment
- Dozers: D10R
- Off-Highway Trucks: 775G, 773, 770G, 772G, 773E, 773F, 771D, 773D
