Description
Cat bolts form a matched system with mating hardened washers and nuts to produce consistent, high clamping force
Specifications
| Thread Size (Diameter × Pitch) | 3/8×16 mm |
|---|---|
| Class or Grade | SAE J429 Grade 8 (150 ksi) |
| Locking Feature | None |
| Thread Direction | RH |
| Material | Alloy Zinc |
| Hole Thread Pitch | 16 |
| Head Height | 7.14375 mm |
| Drive Chain | 14.2875 mm |
| Grade | 8 |
| Thread Size | 0.375 mm (0.015 in) |
| Head Width – 5 | 0.56 in |
| Head Height – 4 | 0.29 in |
| Bolt Overall Length – 3 | 3 in |
| Overall Length | 76.2 mm |
| Handle Length – 2 | 2.00 in |
| Surface Finish | Zinc Plated |
| Material Description | SAE J429 Grade 8 (ISO Class 10.9) |
| Bolt Length | 76.2 mm (3 in) |

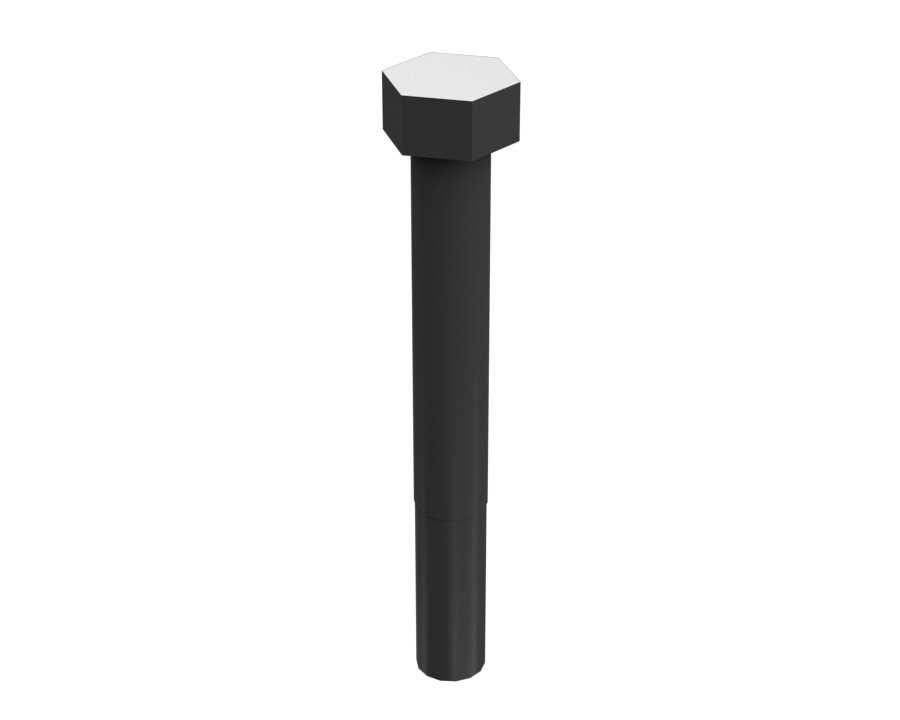

| Bolt Type | Hex Head Bolt |
| Coating | Zinc Electroplated (96 Hour Salt Spray Test) |
| Handle Length | 50.8 mm (2 in) |
| Thread | Coarse Thread UNC |
| Thread Size (in – TPI) | 3/8 – 16 in |
Compatible Equipment
- Generator Sets: 3516C, 3406C, 3406B, 3512B, 3512E, C7.1
- Track Loaders: 963, 816F, 826H, 824G, 824C, 953, 963D, 826G, 990K, 963K, 992, 993
- Cold Planers: PL61, TH255C, PL87
- Engines: C32, C13, C15, C27, C7, C18
- Excavators: 3456, 330D L, 3512C, 6015B, 621G, 3516E, 350 L, 3508B, 657G, 637G, 637E, 3516B, 330 L, 330B, 637K, 6020B, 6015
- Asphalt Pavers: AD45, AP-600D, AD30
- Skid Steer Loaders: 299D3 XE, 289D3, 3126B
- Motor Graders: 16M, 12H, 120H, 140H, 140K, 120, 160K, 12K, 140G, 16H
- Wheel Excavators: MD6200
- Compactors: C-15
- Dozers: D8R, D7H, D6T, D7R II, D6R, D9R, D5H, D7G2, D7R, D6N, D6R II, D8L, D4E, D11T, D10R, D10N, D11R, D10T, D9T, D7G, D10T2, D8N, D9N, D11N, D6K2
- Compact Track Loaders: 299D3, 279D3
- Wheel Loaders: 966F, 980G, 924K, 972G, 836, 990H, R1600H, R2900G, R1700G, 910, 938K, 938M, RM500B, R1700 II, R1300G, 926M, 992C, 992D, R3000H, 988F
- Off-Highway Trucks: 785D, 777D, 771D, 773D, 789D, 773E, 793D, 794 AC, 785, 773F, 777E, 796 AC, 798 AC, 773, 777, 7495, 772G
